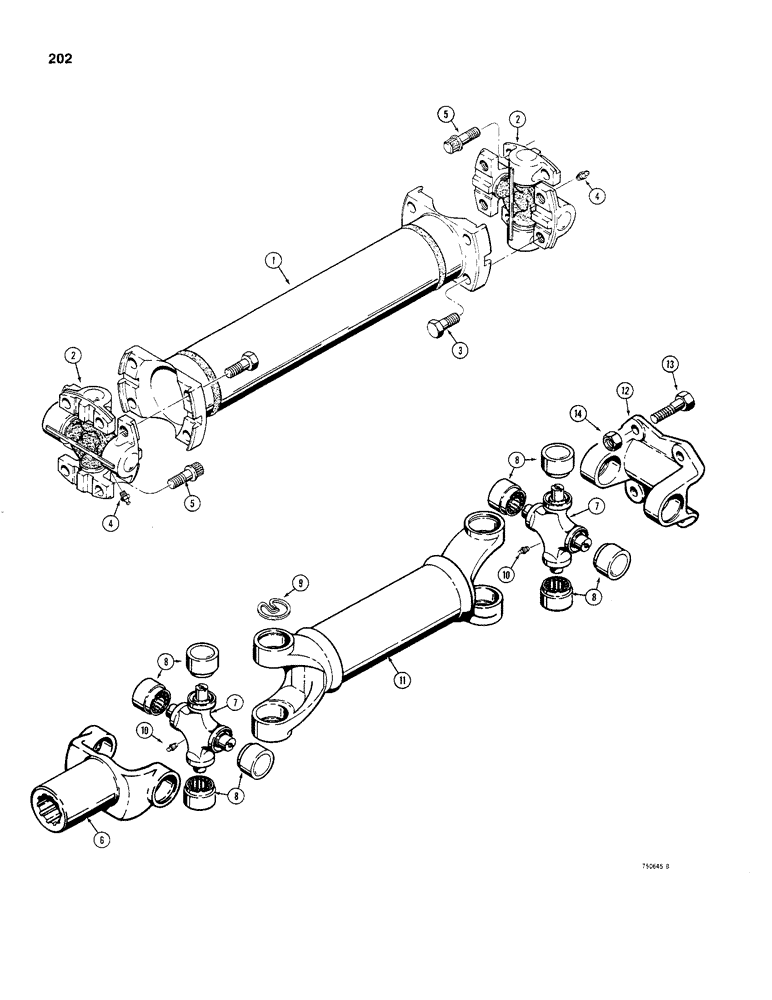

Запчасти Case 480C (202) - DRIVE SHAFTS, BEFORE TRACTOR SERIAL NUMBER 8956868 (21) - TRANSMISSION

D65461

DRIVE SHAFT ASSEMBLY - dry clutch models, Includes: Ref. 1 - 5

1шт.

1

D72735

TUBE - drive shaft

1шт.

D73649

UNIVERSAL JOINT

- drive shaft, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

UNIVERSAL JOINT - drive shaft

1шт.

3

A14723

SCREW,Hex, 5/16" - 24 x 3/4", 8 Gr

BOLT - hex head, 5/16" - 24 NF x 3/4"

4шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

5

L30495

SCREW

- Ferry head, 5/16" - 24 NF x 3/4"

4шт.

D75464

DRIVE SHAFT ASSEMBLY - dry clutch models, trac s/n 8956868 & aft, Includes: Ref. 6 - 12

1шт.

D75785

DRIVE SHAFT

ASSEMBLY - power shuttle models, trac s/n 8956868 & aft, Includes: Ref. 6 - 12

1шт.

6

D75847

YOKE

- end, trac s/n 8956868 & aft

1шт.

D70629

U-JOINT SPIDER

KIT - universal joint, trac s/n 8956868 & aft, Includes: Ref. 7 - 10

2шт.

7

NSS

NOT SOLD SEPARAT

UNIVERSAL JOINT - drive shaft, trac s/n 8956868 & aft

1шт.

8

NSS

NOT SOLD SEPARAT

BEARING - universal joint, trac s/n 8956868 & aft

4шт.

9

11256

SNAP RING

- retaining, trac s/n 8956868 & aft

4шт.

10

219-10

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - straight, 1/4" - 24 NF, taper, trac s/n 8956868 & aft

1шт.

11

NSS

NOT SOLD SEPARAT

SHAFT - drive, trac s/n 8956868 & aft

1шт.

12

W13668

YOKE

- flanged, front, trac s/n 8956868 & aft

1шт.

13

114-263

BOLT

- hex head, 3/8" - 24 NF x 1-1/8", grade 8, if used, trac s/n 8956868 & aft

4шт.

13

114-266

BOLT,Hex, 3/8" - 24 x 1", Gr 8, Full Thd

If used, tractor S/N 8956868 & aft Hex, 3/8"-24 x 1", G8, Full Thd

4шт.

14

131-181

LOCK NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8" - 24 NF, used with 1-1/8" bolts, trac s/n 8956868 & aft

4шт.

14

131-1133

NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8" - 24 NF, used with 1" bolts, trac s/n 8956868 & aft

4шт.
