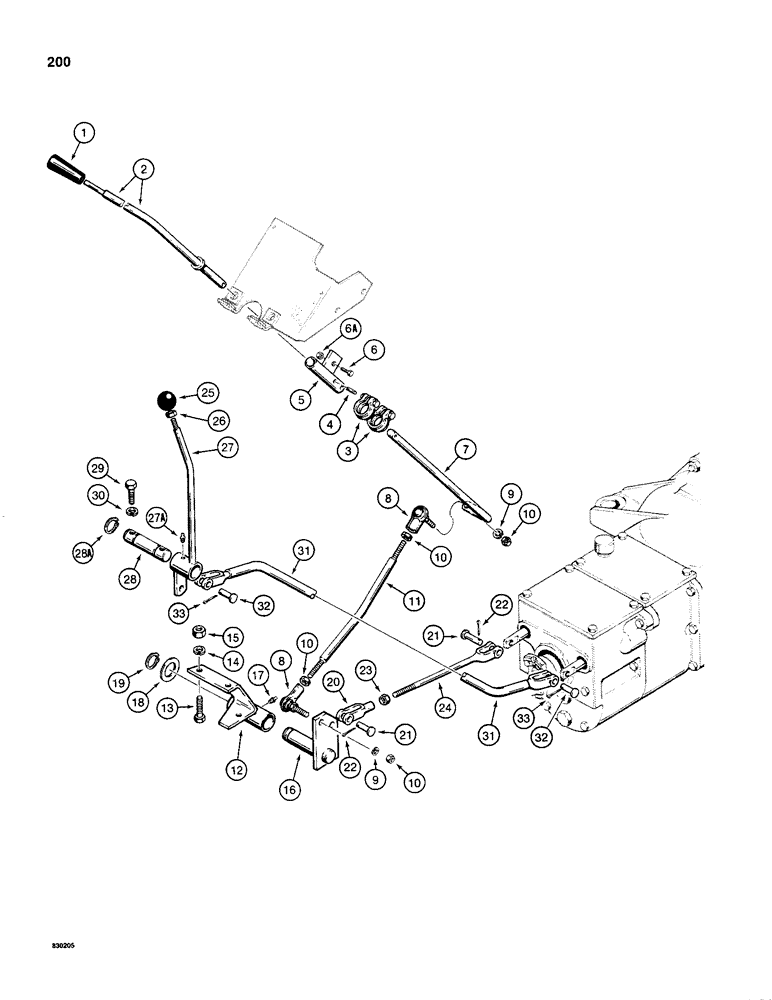

Запчасти Case 480C (200) - SHUTTLE CONTROL, MECHANICAL SHUTTLE MODELS ONLY (21) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
1
A37247
KNOB
- shuttle control lever, column
1шт.
2
D76431
LEVER
CONTROL LEVER - shuttle control
1шт.
3
D71880
CLAMP,22.23mm
- shuttle rods, includes hardware
2шт.
4
138-150
LOCK PIN,5/16" x 13/16", Slotted
PIN, 5/16" x 13/16", Slotted
2шт.
5
D73824
SLEEVE
- shuttle power lever
1шт.
6
113-113
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
1шт.
6a
9635082
NUT,5/16" - 18, Gr 5
1шт.
7
D71818
SHAFT
- shuttle control
1шт.
8
R47940
BALL JOINT
- 3/8"
2шт.
9
92-6
LOCK WASHER,3/8"
2шт.
10
129-123
NUT,3/8"-24, G5
4шт.
11
D74929
ROD
- shuttle control
1шт.
12
D67497
BRACKET
- shuttle control
1шт.
13
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3шт.
14
92-6
LOCK WASHER,3/8"
3шт.
15
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
3шт.
16
D67490
SHAFT
BELLCRANK - shuttle control column
1шт.
17
219-1
LUBE NIPPLE,1/8" - 27 NPTF
GREASE FITTING - straight, 1/8" NPT
1шт.
18
F41695
WASHER
- flat
1шт.
19
D95098
HOSE
RETAINING RING - bracket
1шт.
20
213-41
ADJUSTABLE CLEVIS,3/8"-24
plated, rod end 3/8"-24
1шт.
21
141-54
CLEVIS PIN,3/8" x 1 1/16"
rod end 3/8" x 1 1/16"
2шт.
22
132-330
COTTER PIN,3/32" x 1/2"
PIN, SPLIT (COTTER), 3/32" x 1/2"
2шт.
23
129-123
NUT,3/8"-24, G5
1шт.
24
D68302
CLEVIS
ROD - shuttle control
1шт.
25
D69106
KNOB
- shuttle control, floor
1шт.
26
129-145
JAM NUT,Jam, 1/2"-13, G5
1шт.
27
D84096
LEVER
- two-speed, floor
1шт.
27a
219-1
LUBE NIPPLE,1/8" - 27 NPTF
GREASE FITTING - straight, 1/8" NPT, two-speed lever, if used
1шт.
28
D67162
SHAFT
- shuttle lever mounting
1шт.
28a
D95098
HOSE
RETAINING RING - shaft
2шт.
30
92-6
LOCK WASHER,3/8"
2шт.
31
D76874
ROD - shuttle control, floor
1шт.
32
141-54
CLEVIS PIN,3/8" x 1 1/16"
rod end 3/8" x 1 1/16"
2шт.
33
132-330
COTTER PIN,3/32" x 1/2"
PIN, SPLIT (COTTER), 3/32" x 1/2"
2шт.
Выбрано товаров: 36
