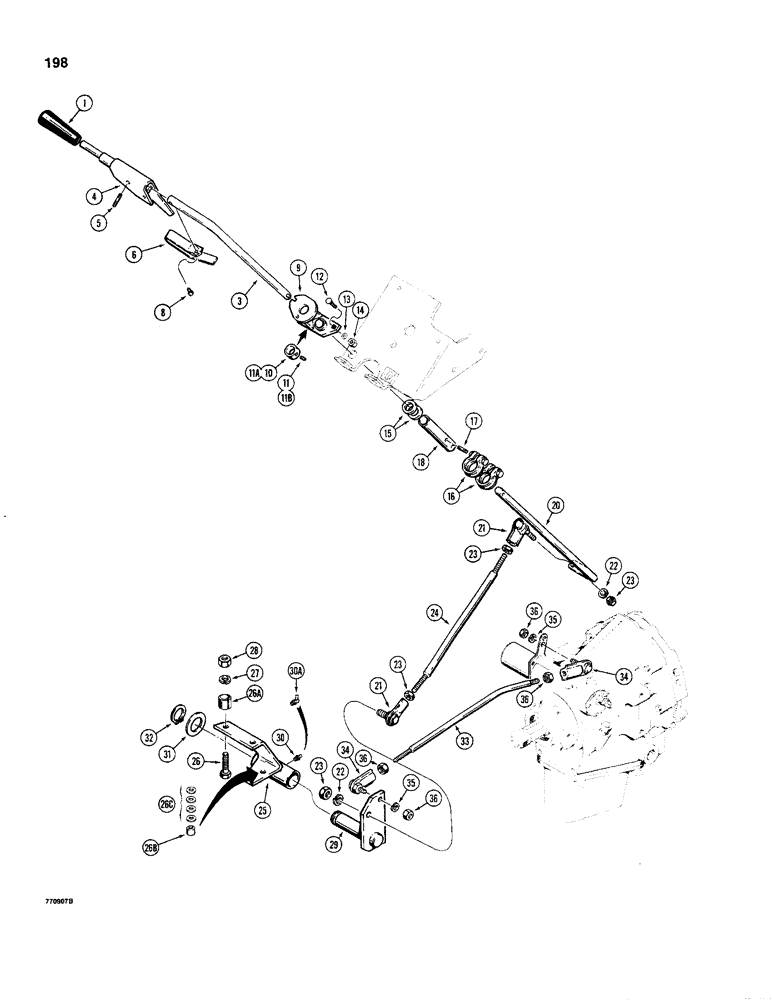

Запчасти Case 480C (198) - SHUTTLE CONTROL, POWER SHUTTLE MODELS ONLY (21) - TRANSMISSION

1

A37247

KNOB

- power shuttle control

1шт.

2

RESERVED

1шт.

3

D76132

LEVER

- shift, power shuttle

1шт.

4

D76525

LEVER

- with pin, detent

1шт.

5

138-2053

PIN,1/4" x 1 1/4", Coiled

1шт.

6

D76444

SPRING

- detent

1шт.

7

RESERVED

1шт.

8

163-28

SCREW,Hex Wshr Hd, #8 - 32 x 1/4", Gr 5

- washer head, No. 8 - 32 NC x 1/4"

1шт.

9

D72891

BRACKET

- detent

1шт.

10

D43620

COLLAR

- bearing, used with Ref. 11, no longer used, order D81756 collar

1шт.

11

83-54

SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt

if used Hex Soc, 5/16"-18 x 1/4", Cup Pt

1шт.

11a

D81756

COLLAR

ASSEMBLY - bearing, includes 178-888 set screw, if used, Includes: Ref. 11B

1шт.

11b

178-88

SET SCREW - 1/4" - 20 NC, if used

1шт.

12

111-132

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

- 5/16" - 18 NC x 3/4", plated

3шт.

13

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

3шт.

14

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

3шт.

15

A35147

WASHER

- hardened

1шт.

16

D71880

CLAMP,22.23mm

- shuttle control rod, includes hardware

2шт.

17

138-150

LOCK PIN,5/16" x 13/16", Slotted

PIN, 5/16" x 13/16", Slotted

2шт.

18

D71813

CLAMP

SLEEVE - shuttle shift lever

1шт.

19

RESERVED

1шт.

20

D71822

SHAFT

- shuttle control

1шт.

21

R47940

BALL JOINT

- 3/8"

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

129-123

NUT,3/8"-24, G5

4шт.

24

D75782

ROD

- shifting

1шт.

25

D67497

BRACKET

- shuttle shifting

1шт.

26

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

26a

D7621

SPACER - shifting bracket

2-3шт.

26b

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- bottom bolt, use with Ref. 26C

1шт.

26c

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, used as spacer

4шт.

27

92-6

LOCK WASHER,3/8"

3шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

29

D67814

SHAFT

BELLCRANK - shuttle shifting

1шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, no longer used, order Ref. 30A

1шт.

30a

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

31

F41695

WASHER

- flat

1шт.

32

D95098

HOSE

RETAINING RING - bracket

1шт.

33

D78771

SHIFT RAIL

ROD - shuttle control

1шт.

34

D63154

JOINT,1/4" - 28 x 1-1/3"

BALL JOINT - 1/4"

2шт.

35

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

36

129-121

NUT,1/4"-28, G5

4шт.
