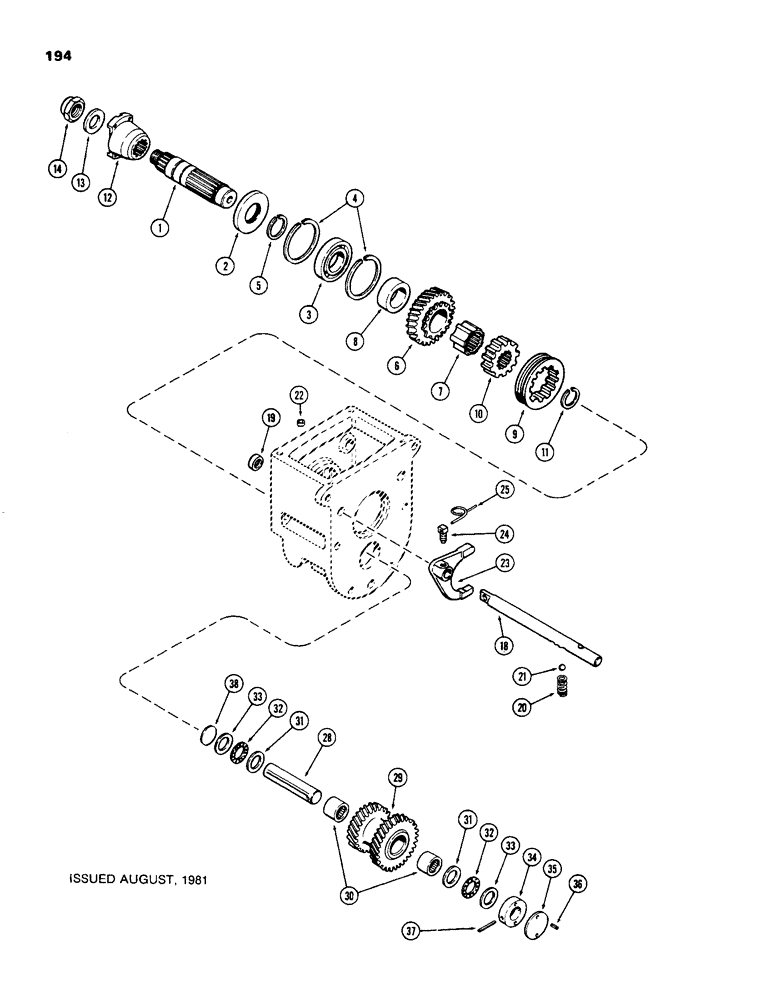

Запчасти Case 480C (194) - RANGE OUTPUT SHAFT, TWO SPEED MECHANICAL SHUTTLE (21) - TRANSMISSION

1

A51947

SHAFT

- range output

1шт.

2

A51948

OIL SEAL

SEAL - oil, 1-9/16 x 3-5/32 x 5/16" (39.69 x 80.17 x 7.94 mm)

1шт.

3

B18215

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

BEARING - ball, 1-9/16 x 3-1/4 x 11/16" (39.69 x 82.55 x 17.46 mm)

1шт.

4

A27579

RING

- snap, bearing retaining, 3-9/32" OD (83.34 mm)

2шт.

5

A26946

RING

- snap, bearing retaining, 1-7/16" OD (36.51 mm)

1шт.

6

G16620

GEAR

- range (12 and 32 external teeth)

1шт.

7

G16619

SLEEVE

- range gear (24 internal teeth)

1шт.

8

A140687

SPACER

- thrust, range gear, 1-9/16 x 2-1/4 x 13/16" (39.69 x 57.15 x 20.64 mm)

1шт.

9

A148437

COLLAR

- range shift (12 internal teeth)

1шт.

10

G16621

CARRIER

- range shift collar (12 external and 24 internal teeth)

1шт.

11

A27568

RING

- snap, carrier retaining, 0.093" (2.36 mm)

1шт.

11

G46097

RING

- snap, carrier retaining, 0.088" (2.24 mm)

1шт.

11

A27567

RING

- snap, carrier retaining, 0.084" (2.13 mm)

1шт.

11

A27566

RING

- snap, carrier retaining, 0.080" (2.03 mm)

1шт.

11

A27565

RING

- snap, carrier retaining, 0.076" (1.93 mm)

1шт.

12

A51949

YOKE

- range output shaft

1шт.

13

G46082

WASHER

- yoke, 1 x 1-9/16 x 1/8" (25.4 x 39.69 x 3.18 mm)

1шт.

14

131-583

LOCK NUT,1"-14

LOCKNUT - yoke retaining

1шт.

18

A140744

RAIL

- dual range shift, mechanism

1шт.

19

A26778

SEAL

- oil, shifter rail, 5/8 x 1-1/8 x 3/8" (15.88 x 28.58 x 9.53 mm), range shift mechanism

1шт.

20

G47039

SPRING

- detent ball, range shift mechanism

1шт.

21

211-11

BALL,3/8" Dia

- detent (meter) (9.525 mm), range shift mechanism 3/8" Dia

1шт.

22

A39321

PLUG,Cup, 7/16"

- range housing shifter rail boss, 7/6" cup type (11.11 mm), mechanism

1шт.

23

A51951

FORK

- shifter, range mechanism

1шт.

24

A29964

LOCK SCREW,Sq Hd, 3/8" - 24 x 27/32", Drilled

- range shift fork, mechanism

1шт.

25

A29966

ELECTRICAL WIRE

WIRE - lock, range fork screw, countershaft

1шт.

28

G16606

SHAFT

COUNTERSHAFT - range, 4-9/16" long (115.89 mm)

1шт.

29

A140923

GEAR

- countershaft (27 and 34 external teeth), range

1шт.

30

F51079

NEEDLE BEARING

BEARING - needle, 1 x 1-5/16 x 1" (25.4 x 33.34 x 25.4 mm) Order F62086, range countershaft

2шт.

31

G46082

WASHER

- thrust, inner, 1 x 1-9/16 x 1/8" (25.4 x 39.69 x 3.18 mm), range countershaft

2шт.

32

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST, Range countershaft

2шт.

33

G46081

BEARING WASHER

WASHER - thrust, outer, 1 x 1-9/16 x 1/32" (25.4 x 39.69 x 0.79 mm), range countershaft

2шт.

34

G16607

COLLAR

- countershaft (solid), range

1шт.

35

G16608

SHIM,.005" Thk

Collar (0.13 mm), Range countershaft .005" Thk

1шт.

36

138-104

LOCK PIN,3/16" x 2", Slotted

PIN, , Range countershaft 3/16" x 2", Slotted

2шт.

37

138-104

LOCK PIN,3/16" x 2", Slotted

PIN, , Collar to shaft, ranger counter 3/16" x 2", Slotted

1шт.

38

41-20

PLUG,Exp, 1 1/4"

- countershaft hole (1-1/4" expansion), range

1шт.
