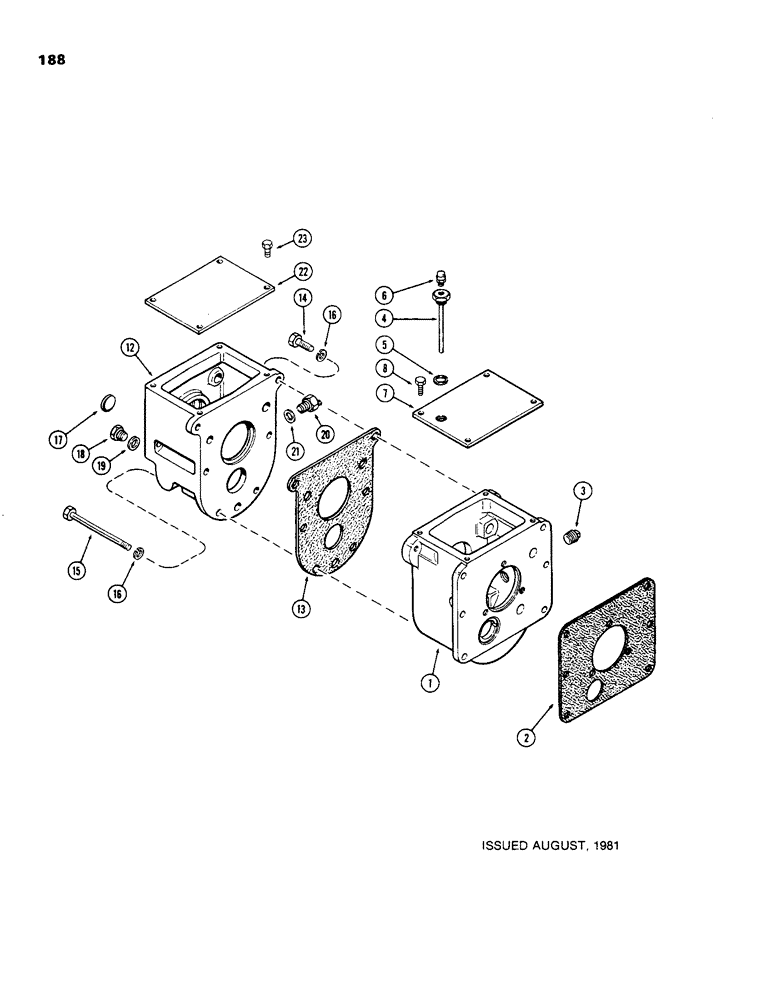

Запчасти Case 480C (188) - SHUTTLE HOUSING, TWO SPEED MECHANICAL SHUTTLE (21) - TRANSMISSION

1

A51935

HOUSING

- shuttle

1шт.

2

A51938

GASKET

- shuttle to clutch housing

1шт.

3

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - oil level (3/4" PT, square head)

1шт.

4

A144331

BREATHER

TUBE - breather

1шт.

5

A58608

GASKET

- breather tube to shuttle housing

1шт.

6

A12928

BREATHER

- shuttle housing vent

1шт.

7

A51936

COVER

- housing, top

1шт.

8

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Cover Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

M20704

ADHESIVE

SEALANT - cover Form-A-Gasket (3 oz. tube)

1шт.

B17504

GASKET

SEALANT - cover Form-A-Gasket (300 ml.)

1шт.

12

A51944

HOUSING - range

1шт.

13

A51946

SEAL ASSY.

GASKET - range housing to shuttle housing

1шт.

14

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- range housing to shuttle housing, top (3/8 x 1-1/2" NC hex)

2шт.

15

13-692

BOLT,Hex, 3/8" - 16 x 5-3/4", Gr 5

Range housing to shuttle housing, bottom Hex, 3/8"-16 x 5 3/4", G5

2шт.

15

13-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

Range housing to shuttle housing, center Hex, 3/8"-16 x 6 1/2", G5

2шт.

16

92-6

LOCK WASHER,3/8"

range housing 3/8"

6шт.

17

41-20

PLUG,Exp, 1 1/4"

- countershaft hole (1-1/4" expansion), range housing

1шт.

18

A140222

PLUG

- drain, range housing

1шт.

19

A58608

GASKET

- drain plug, range housing

1шт.

20

A139078

SWITCH

ASSEMBLY - neutral start, range housing

1шт.

21

G49401

SHIM,.005" Thk

Neutral start switch (0.13 mm), Range housing .005" Thk

1шт.

22

A51945

COVER - range housing, top

1шт.

23

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Cover, Range housing Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

M20704

ADHESIVE

SEALANT - cover Form-A-Gasket (3 oz. tube), range housing

1шт.

B17504

GASKET

SEALANT - cover Form-A-Gasket (300 ml.), range housing

1шт.
