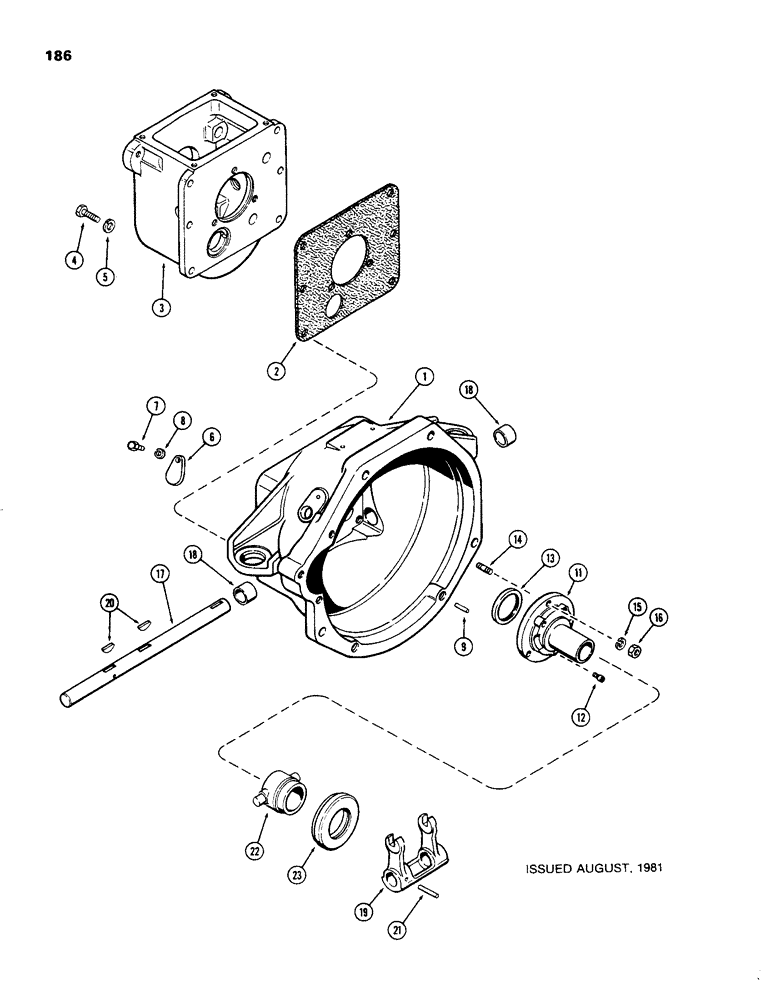

Запчасти Case 480C (186) - CLUTCH HOUSING, TWO SPEED MECHANICAL SHUTTLE (21) - TRANSMISSION

1

A138284

HOUSING

- clutch

1шт.

2

A51938

GASKET

- clutch housing to shuttle housing

1шт.

3

A51935

HOUSING

- shuttle (See Figure 188)

1шт.

4

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- clutch housing to shuttle housing (3/8 x 1-3/8" NC hex)

6шт.

5

92-6

LOCK WASHER,3/8"

6шт.

6

A29068

COVER

- timing hole

1шт.

7

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Timing cover Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , Timing 1/8" x 1", Slotted

1шт.

11

A148283

SPINDLE

- clutch throwout

1шт.

12

178-428

SET SCREW,Hex Soc, 1/4"-20 x 1/2"

SCREW - spindle (1/4 x 1/2" NC hex socket head), clutch throwout

3шт.

13

39736

OIL SEAL

- oil, spindle, 1-7/16 x 2-1/4 x 1/4" (36.51 x 57.15 x 6.35 mm)clutch throwout

1шт.

14

A7597

STUD - spindle (3/8" NC - NF x 1-5/16"), clutch throwout

3шт.

15

92-6

LOCK WASHER,3/8"

clutch throwout 3/8"

3шт.

16

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" NF hex, clutch throwout

3шт.

17

A138571

SHAFT

- cross, clutch throwout

1шт.

18

G49666

BUSHING

- cross shaft, 1 x 1-1/4 x 1" (25.4 x 31.75 x 25.4 mm), clutch throwout

2шт.

19

A138570

YOKE

- clutch throwout

1шт.

20

126-24

WOODRUFF KEY,#15, 1/4" x 1"

Yoke to shaft, Clutch throwout #15, 1/4" x 1"

2шт.

21

138-139

LOCK PIN,1/4" x 1 5/8", Slotted

PIN, , Yoke to shaft, clutch throwout 1/4" x 1 5/8", Slotted

1шт.

22

A144626

CARRIER

ASSEMBLY - throwout bearing, clutch, Includes: Ref. 23

1шт.

23

A138864

BEARING

- clutch throwout

1шт.
