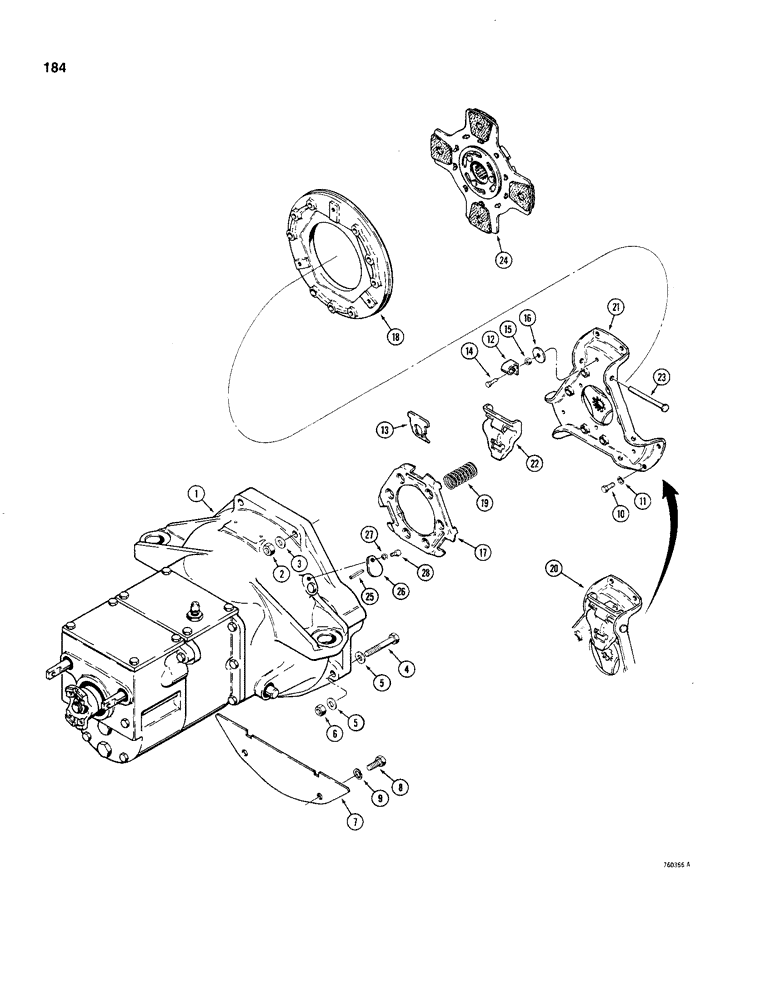

Запчасти Case 480C (184) - CLUTCH, MECHANICAL SHUTTLE AND RELATED PARTS (21) - TRANSMISSION

1

A143492

TRANSMISSION - shuttle, used before tractor SN 8956868, includes parts listed on Figures 186 - 194, except for clutch release bearing and carrier assembly listed as Ref. 22 on Figure 186

1шт.

1

A150522

SPARE PART TRANSMISSION - shuttle, used on tractor SN 8956868 and after, includes parts listed on Figures 186 - 194, except for clutch release bearing and carrier assembly listed as Ref. 22 on Figure 186

1шт.

2

129-127

NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

3

A35147

WASHER

WASHER - hardened, 5/8"

2шт.

4

D76605

BOLT

BOLT - hex head, 5/8" - 18 NF x 3-1/2", special

2шт.

5

A35147

WASHER

WASHER - hardened, 5/8"

4шт.

6

129-127

NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

7

D68669

COVER

COVER - flywheel

1шт.

8

113-602

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

BOLT, Hex, 5/8"-11 x 1", G5, Full Thd

2шт.

9

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

10

G11207

BOLT

BOLT - special, pressure plate mounting

6шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

A39213

PLATE

CLUTCH ASSEMBLY - original equipment type without internal splined hub, order A39212 pressure plate, Includes: Ref. 12 - 23

1шт.

A39212

CLUTCH

CLUTCH ASSEMBLY - service replacement type with internal splined hub, Includes: Ref. 12 - 23

1шт.

A39212R

REMAN-CLUTCH PLATE

480C, Case Construction King Loader Backhoe

1шт.

A39212C

CORE-CLUTCH PLATE

Return Part Number

1шт.

5092792R

REMAN-CLUTCH PLATE

Reman for New PN A39212

1шт.

5092792C

CORE-CLUTCH PLATE

Return Part Number

1шт.

12

A43607

CLIP

CLIP - clutch pressure return

3шт.

13

A43605

LINK

LINK - pressure plate

3шт.

14

NLS

NO LONGER SERVICED

- lever adjustment

3шт.

15

86637933

JAM NUT,5/16" - 24, Gr 5

NUT, Jam, 5/16"-24, G5

3шт.

16

G49048

WASHER

WASHER - flat, adjuster

3шт.

17

A43613

RING

RING - pressure plate spring

1шт.

18

A43609

PLATE

PLATE - pressure

1шт.

19

A43612

SPRING

KIT - pressure spring, set of 6, yellow code

1шт.

20

A43660

BRACKET

BRACKET ASSEMBLY - pressure plate, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

BRACKET - pressure plate

1шт.

22

NSS

NOT SOLD SEPARAT

LEVER - pressure spring

1шт.

23

NSS

NOT SOLD SEPARAT

PIN - pivot, lever

3шт.

24

A51840

CLUTCH DISC

CLUTCH DISK PLATE - friction, driven

1шт.

24

1997844C1R

REMAN-CLUTCH DISC,276.35mm OD

Remanufactured Clutch Disc, 11 in., 21Tooth hub, 4 paddle

1шт.

24

1997844C1C

CORE-CLUTCH DISC

Return Part Number

1шт.

25

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , Timing pin 1/8" x 1", Slotted

1шт.

26

A29068

COVER

COVER - timing hole

1шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

28

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.
