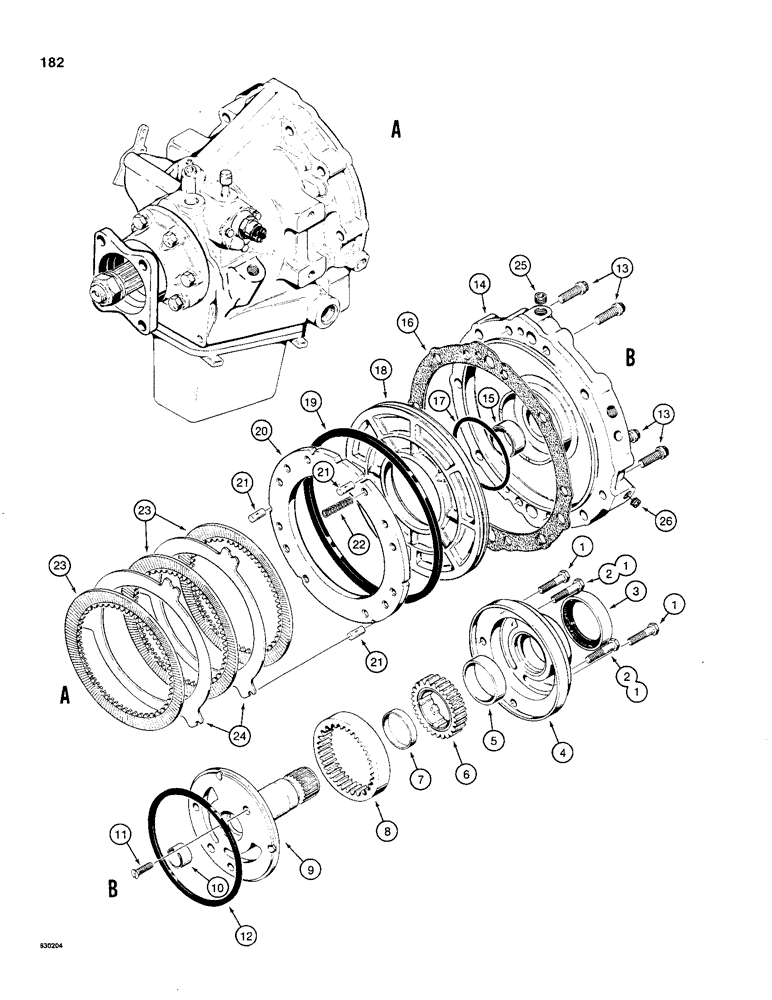

Запчасти Case 480C (182) - POWER SHUTTLE, CHARGING PUMP AND REVERSE CLUTCH (21) - TRANSMISSION

REF

INSTRUCTION

POWER SHUTTLE ASSEMBLY - complete, see Figures 174 - 182, Includes: Ref. 1 - 26

1шт.

1

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2-4шт.

2

13-530

BOLT,Hex, 5/16" - 18 x 1-7/8", Gr 5

- hex head, 5/16" - 18 NC x 1-7/8", used only where two different lengths of bolts are required

2шт.

R29995

PUMP

CHARGING PUMP ASSEMBLY - power shuttle, Includes: Ref. 3 - 11

1шт.

3

N8071

OIL SEAL,49.23mm ID x 68.53mm OD x 8.23mm Thk

- oil

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - charging pump, Includes: Ref. 5

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - charging pump

1шт.

6

NSS

NOT SOLD SEPARAT

DRIVE GEAR - charging pump, Includes: Ref. 7

1шт.

7

NSS

NOT SOLD SEPARAT

BUSHING - charging pump gear drive

1шт.

8

NSS

NOT SOLD SEPARAT

DRIVEN GEAR - charging pump

1шт.

9

NSS

NOT SOLD SEPARAT

SUPPORT - torque converter

1шт.

10

NSS

NOT SOLD SEPARAT

BUSHING - torque converter support

1шт.

11

171-100

SCREW,Sl Flat Hd, #10 - 24 x 3/4"

- No. 10 - 24 NC x 3/4", special

1шт.

12

L30487

GASKET,140.49mm ID x 150.02mm OD x 3.02mm Thk

- rear pump

1шт.

13

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW - Ferry head, 3/8" - 16 NC x 1-1/4"

4шт.

D50022

ADAPTER

COVER ASSEMBLY - power shuttle, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

COVER - power shuttle

1шт.

15

D50074

BUSHING,34.92mm ID x 38.13mm OD x 17.46mm L

- cover

1шт.

16

D50033

GASKET,0.58mm Thk

-, Serial Range: cover-housing

1шт.

17

D50034

O-RING,0.139" Thk x 3.484" ID

O-RING - small

1шт.

18

D50035

PISTON

- reverse clutch

1шт.

19

D50036

SEALING RING,194.51mm ID x 232.84mm OD x 3.17mm Thk

- ring, piston

1шт.

20

D50037

PLATE

- pressure, reverse clutch

1шт.

21

D50038

PIN

DOWEL PIN - pressure plate

3шт.

22

D50039

SPRING

- pressure plate

11шт.

23

D50040

PLATE

DISC - friction, internal teeth

3шт.

24

D50041

CLUTCH PLATE,155.57mm ID x 215.09mm OD x 1.8mm Thk

DISC - metal, external flange

2шт.

25

221-841

PLUG

- hex socket head, 1/4" NPT

1шт.

26

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT

2шт.
