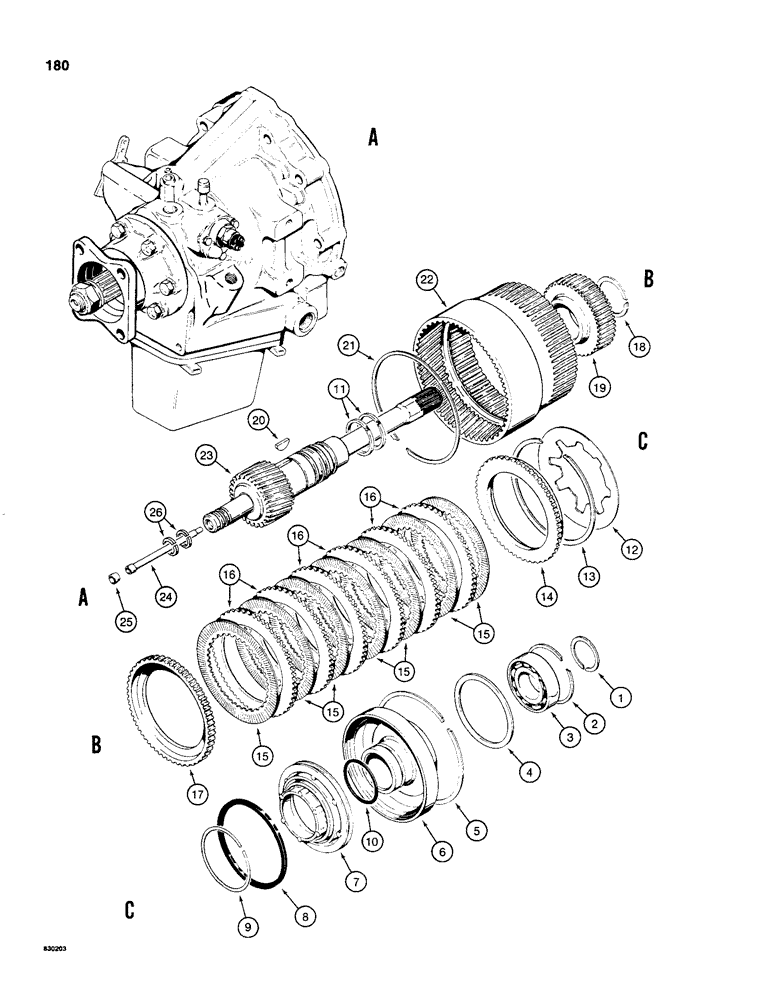

Запчасти Case 480C (180) - POWER SHUTTLE, INPUT SHAFT AND FORWARD CLUTCH (21) - TRANSMISSION

REF

INSTRUCTION

POWER SHUTTLE ASSEMBLY - complete, see Figures 174 - 182, Includes: Ref. 1 - 26

1шт.

1

D50042

RING

SNAP RING - bearing retaining, small

1шт.

2

D50043

RING

SNAP RING - bearing retaining, large

1шт.

3

D50044

BALL BEARING

- clutch cylinder

1шт.

4

D50045

WASHER,79.76mm ID x 93.73mm OD x 1.73mm Thk

THRUST WASHER - forward clutch

1шт.

5

D50046

RING

- ring gear retaining

1шт.

6

D50075

CYLINDER

- forward clutch

1шт.

D50075 forward clutch cylinder - The inside diameter of the cylinder where the piston seal (D50077) rubs should be polished to a surface of 50 micro in. maximum. Some housings have not been polished and have a rough, grooved surface. This rough surface will result in early deterioration of the piston seal.When rebuilding the power shuttle, inspect the inside diameter of the forward clutch cylinder and polish out any rough tool marks by using fine emery paper.(inside dia. of D50075 is 4.585/4.588 in. and mu

1шт.

7

D70670

PISTON

- forward clutch

1шт.

8

D50077

RING

- quad

1шт.

9

D50078

RING,3.17mm Thk x 77.22mm ID, 40 Duro

- piston

1шт.

10

D50079

O-RING,0.139" Thk x 2" ID

O-RING - cylinder

1шт.

11

D50080

RING,40.25mm ID x 44.36mm OD x 2.38mm Thk

- sealing

2шт.

12

D50047

BELLEVILLE WASHER,73.025mm ID x 134.95mm OD x 1.854mm Thk

BELLEVILLE SPRING - piston

1шт.

13

D50048

CIRCLIP

RING - retaining, pressure plate

1шт.

14

D50081

PLATE,139.12mm OD

- pressure, front

1шт.

15

D70672

PLATE

DISC - friction, internal teeth

7шт.

16

D50083

PLATE

DISC - metal, external teeth

6шт.

17

D50084

PLATE,139.45mm OD

- pressure, rear

1шт.

18

D50049

RING

- clutch hub retaining

1шт.

19

D50050

HUB

- clutch

1шт.

20

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Input shaft #15, 1/4" x 1", HT

1шт.

21

Q1127842

PIN

RING - .050" (1.270 mm) to .054" (1.372 mm) thick

1шт.

21

D78397

RING

- .062" (1.575 mm) to .066" (1.676 mm) thick

1шт.

21

D50052

RING

- .074" (1.880 mm) to .078" (1.981 mm) thick

1шт.

21

D78398

RING

- .084" (2.134 mm) to .088" (2.235 mm) thick

1шт.

21

D50053

RING

- .096" (2.438 mm) to .100" (2.540 mm) thick

1шт.

22

D50054

GEAR

RING GEAR - power shuttle

1шт.

D70666

GEAR

INPUT SHAFT ASSEMBLY - shuttle, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

INPUT SHAFT - drive

1шт.

24

N7043

TUBE

- forward clutch supply

1шт.

25

D50086

PLUG

- shaft end

1шт.

26

D70668

RING,Split, 18.34mm ID x 20.88mm OD x 2.34mm Thk

- sealing

2шт.
