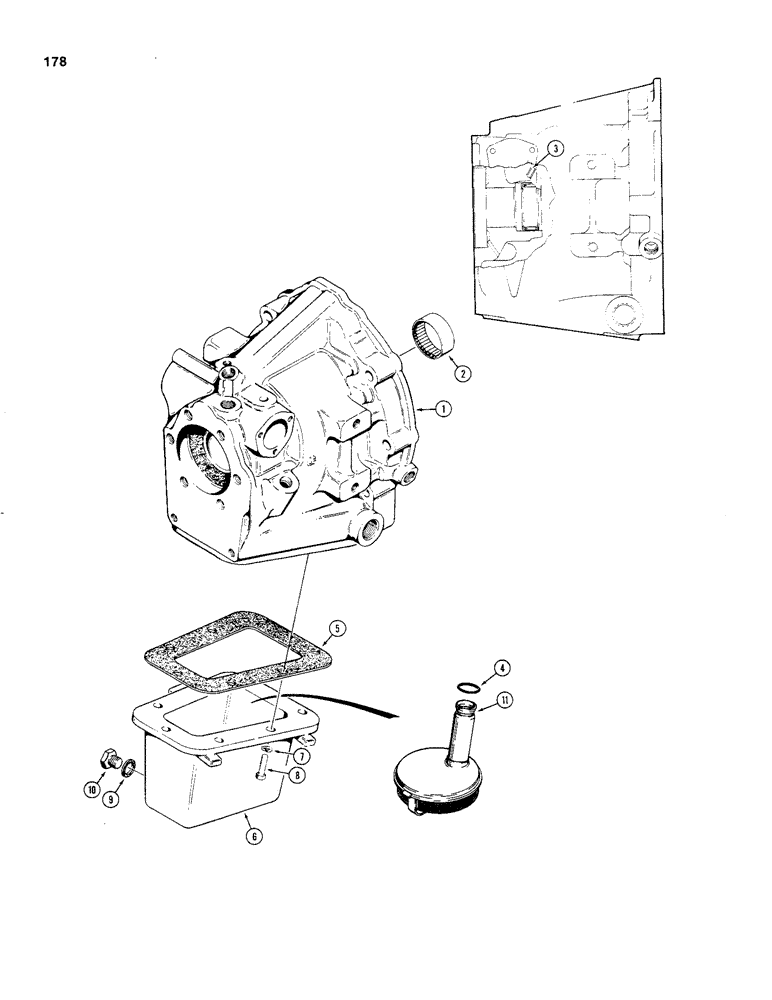

Запчасти Case 480C (178) - POWER SHUTTLE, HOUSING AND OIL PAN (21) - TRANSMISSION

REF

INSTRUCTION

POWER SHUTTLE ASSEMBLY - for complete power shuttle see Figures 174 - 182, Includes: Ref. 1 - 11

1шт.

D70650

HOUSING

ASSEMBLY - power shuttle, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - power shuttle

1шт.

2

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

- housing, 1-3/4 in ID

1шт.

3

41-1007

PLUG,Cup, 7/16"

- cup

1шт.

4

R29797

O-RING,0.07" Thk x 0.739" ID

- screen tube

1шт.

5

R29956

GASKET,0.76mm Thk

- oil pan, cork

1шт.

5

345-84

ADHESIVE

SEAL - 3 oz. (89 ml) of sealer in a tube, not shown, can be used in place of R29956 gasket

1шт.

6

R29902

PAN

OIL PAN - power shuttle

1шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

7шт.

D73701

PLUG

ASSEMBLY - drain, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET - drain plug

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG - drain

1шт.

11

D66455

FILTER SCREEN

SCREEN - pump, power shuttle

1шт.
