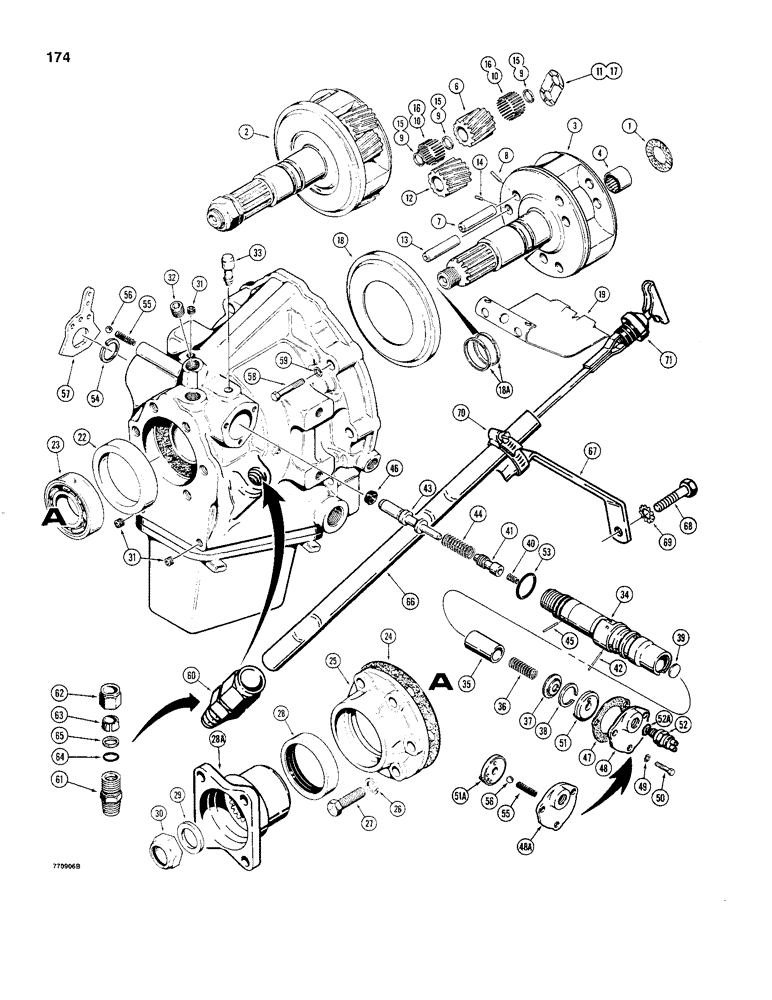

Запчасти Case 480C (174) - POWER SHUTTLE, HOUSING, PINION CAGE, AND OUTPUT SHAFT (21) - TRANSMISSION

D75364

CLUTCH ASSEMBLY

POWER SHUTTLE ASSEMBLY - complete, used before tractor SN 9001098, see Figures 174 - 182 for components, Includes: Ref. 1 - 57

1шт.

329669A1

REMAN-TORQ CONV PS K

Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

329669A1C

CORE-TORQ CONV PS KI

Return Part Number, Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

D88050

TRANSMISSION

POWER SHUTTLE ASSEMBLY - complete, used on tractor SN 9001098 and after, see Figures 174 - 182 for components, Includes: Ref. 1 - 57

1шт.

1

D50055

WASHER, THRUST,22.38mm ID x 44.45mm OD x 1.6mm Thk

THRUST WASHER - clutch hub

1шт.

2

D70665

GEAR

PINION CAGE AND OUTPUT SHAFT - power shuttle, Includes: Ref. 3 - 18

1шт.

3

NSS

NOT SOLD SEPARAT

CAGE AND SHAFT - basic

1шт.

4

H747964

NEEDLE BEARING,Needle, 20.64mm ID x 26.99mm OD x 22.23mm W

NEEDLE BEARING - output shaft

1шт.

5

RESERVED

1шт.

D50030

GEAR

KIT - inner pinion, gear and shaft, Includes: Ref. 6 - 11

3шт.

6

NSS

NOT SOLD SEPARAT

PINION GEAR - inner

1шт.

7

NSS

NOT SOLD SEPARAT

PINION SHAFT - inner

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - shaft retaining

1шт.

9

NSS

NOT SOLD SEPARAT

SPACER - pinion bearing

3шт.

10

NSS

NOT SOLD SEPARAT

ROLLER - pinion bearing

48шт.

11

NSS

NOT SOLD SEPARAT

PLATE - thrust

2шт.

D50031

KIT

KIT - outer pinion, gear and shaft, Includes: Ref. 12 - 17

3шт.

12

NSS

NOT SOLD SEPARAT

PINION GEAR - outer

1шт.

13

NSS

NOT SOLD SEPARAT

PINION SHAFT - outer

1шт.

14

NSS

NOT SOLD SEPARAT

PIN - shaft retaining

1шт.

15

NSS

NOT SOLD SEPARAT

SPACER - pinion bearing

3шт.

16

NSS

NOT SOLD SEPARAT

ROLLER - pinion bearing

48шт.

17

NSS

NOT SOLD SEPARAT

PLATE - thrust

2шт.

18

D50087

RING

RING - collector

1шт.

18a

D50080

RING,40.25mm ID x 44.36mm OD x 2.38mm Thk

RING - sealing

2шт.

19

D50056

GUARD

BAFFLE - plate

1шт.

20

RESERVED

1шт.

21

RESERVED

1шт.

22

D50057

SLEEVE

SPACER - ball bearing

1шт.

23

40011

BEARING,1.378" ID x 3.1496" OD x 0.8268"

BALL BEARING - output shaft

1шт.

24

D50058

GASKET

GASKET - ball bearing retainer

1шт.

25

D50059

BEARING HOUSING

RETAINER - rear ball bearing

1шт.

26

92-7

LOCK WASHER,7/16"

LOCK WASHER, 7/16"

6шт.

27

113-363

BOLT,Hex, 7/16" - 14 x 1-1/8", Gr 5, Full Thd

BOLT - hex head, 7/16" - 14 NC x 1-1/8", plated

6шт.

28

D50060

SEAL,53.98mm ID x 77.93mm OD x 13.11mm Thk

SEAL - oil, rear

1шт.

28a

D73776

FLANGE

FLANGE - output shaft mounting

1шт.

29

D65247

WASHER

WASHER - output shaft

1шт.

345-84

ADHESIVE

SEAL - 3 oz. (89 ml) of sealer in a tube, not shown, can be used between D65247 washer and end of shaft

1шт.

30

131-91

LOCK NUT,3/4"-16, G8

NUT - hex, self-locking, 3/4" - 16 NF, plated

1шт.

31

221-849

PLUG,Hex Soc, 1/8"-27

PLUG - hex socket head, 1/8" NPT

2-3шт.

32

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - hex socket head, 3/8" NPT

1шт.

33

D50062

BREATHER

BREATHER - power shuttle

1шт.

D77473

VALVE

VALVE ASSEMBLY - power shutttle transmission, Includes: Ref. 34 - 46A

1шт.

34

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

35

D50089

VALVE

PISTON - pressure regulator

1шт.

36

D50090

SPRING

SPRING - valve

1шт.

37

D50091

RETAINER,9.53mm ID x 28.42mm OD x 1.34mm Thk

RETAINER - spring

1шт.

38

D50092

RING

RING - spring retaining

1шт.

39

41-12

PLUG,Exp, 3/4"

PLUG - expansion

1шт.

40

D77476

SPRING

SPRING - clutch cutout

1шт.

41

D77474

SPOOL

SPOOL - valve

1шт.

42

135-198

GROOVED PIN,5/64" x 1", Type B

PIN, GROOVED, 5/64" x 1", Type B

1шт.

43

D75488

PLUNGER

PLUNGER - valve

1шт.

Part of Valve Plunger and Seal Replacement Kit P/N D75490

1шт.

44

D77475

SPRING

SPRING - plunger, valve

1шт.

45

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

Part of Valve Plunger and Seal Replacement Kit P/N D75490

1шт.

46

D75489

SEAL,11.11mm ID x 17.46mm OD x 3.17mm Thk

SEAL - oil, when ordering Ref. 46, must also order Ref. 46A

1шт.

Part of Valve Plunger and Seal Replacement Kit P/N D75490

1шт.

46a

D75492

PLASTIC RING

INSTALLATION TOOL - must be used with Ref. 46, not shown

1шт.

Part of Valve Plunger and Seal Replacement Kit P/N D75490

1шт.

47

D50066

GASKET,0.41mm Thk

GASKET - valve cover

1шт.

Part of Valve Plunger and Seal Replacement Kit P/N D75490

1шт.

48

D72822

COVER

COVER - valve, without ball detent, if used

1шт.

48a

D86488

COVER

COVER - valve, with ball detent, if used

1шт.

49

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

50

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

BOLT - hex head, 1/4" - 20 NC x 7/8", plated

3шт.

51

D70660

CAM

CAM - neutral start switch, without ball detent, if used

1шт.

51a

D86489

CAM

CAM - neutral start switch, with ball detent, if used

1шт.

52

S113435

SWITCH

SWITCH - neutral start, Includes: Ref. 52A

1шт.

52a

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-Ring, 6-1, 90 Duro, .468" ID x .078" Thk, neutral start switch, if used

1шт.

53

D37156

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

O-RING - valve

1шт.

54

A75171

SNAP RING,#112, 1.060", Ext

RING - retaining

1шт.

55

S47892

SPRING

SPRING - poppet

1шт.

56

211-9

BALL,5/16" Dia

BALL - steel, meter 5/16" Dia

1шт.

Part of Valve Plunger and Seal Replacement Kit P/N D75490

1шт.

57

D77621

LEVER

LEVER - shift, forward and reverse

1шт.

58

113-329

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 5

BOLT - hex head, 7/16" - 14 NC x 3-1/4", plated

6шт.

59

92-7

LOCK WASHER,7/16"

LOCK WASHER, 7/16"

6шт.

60

222-3006

FITTING,1 1/2"-12 x 3/4" NPT

CONNECTOR ASSEMBLY - male, straight, power shuttle to dipstick tube, Includes: Ref. 61 - 65

1шт.

61

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

62

222-3111

TUBE NUT,1"-12

NUT - connector

1шт.

63

222-3105

SLEEVE,1" Tube

SLEEVE - connector

1шт.

64

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

O-RING - connector

1шт.

65

D54295

RING

BACKUP RING - connector O-ring

1шт.

66

D76129

TUBE,1" OD x 9.746, 13.852" L

TUBE - filler, power shuttle

1шт.

67

D76474

BRACKET

BRACKET - filler tube mounting

1шт.

68

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/4", G5

1шт.

69

193-72

LOCK WASHER

WASHER - external-internal tooth lock, 3/8", plated

1шт.

70

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

HOSE CLAMP, - filler tube mounting #16, 0.81/1.50 Type F Worm

1шт.

71

D78855

DIPSTICK,653.8mm L

DIPSTICK - power shuttle transmission

1шт.

D75490

PLUNGER

KIT - valve plunger and seal replacement, Includes: Ref.43, 45, 46, 46A, 47 and 56

1шт.

D103218

BEARING ASSY

KIT bearing

1шт.

D103219

PACKAGE

KIT overhaul, clutch

1шт.

D103220

SEAL PACKAGE

KIT seal, gasket

1шт.
