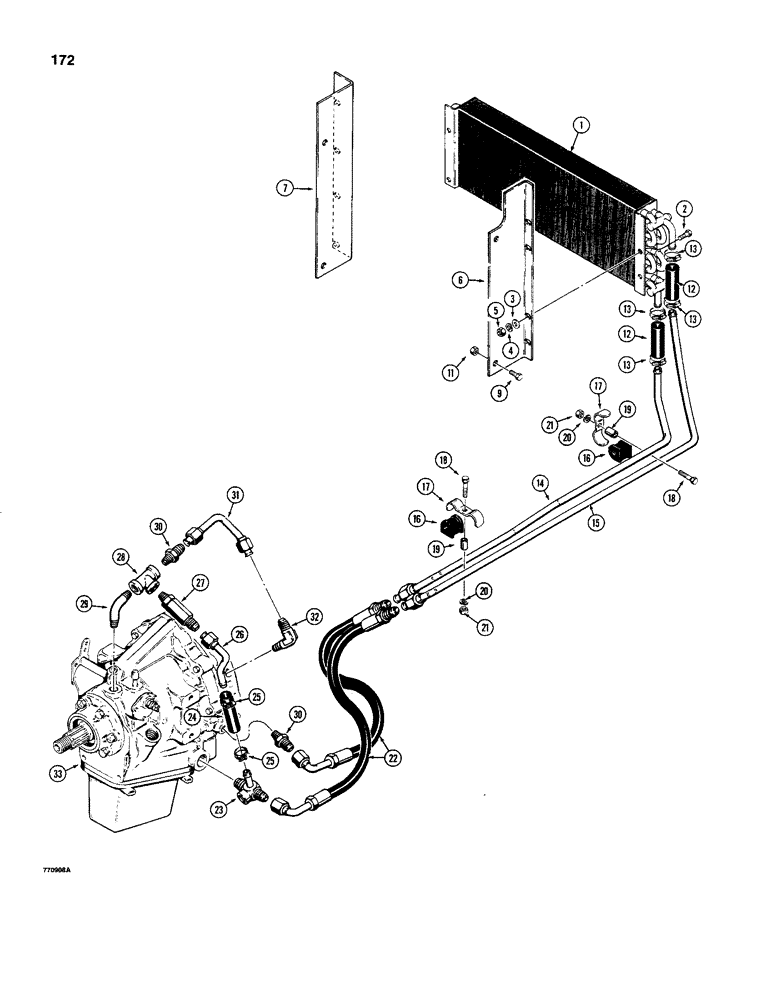

Запчасти Case 480C (172) - POWER SHUTTLE COOLING SYSTEM (21) - TRANSMISSION

1

D76097

COOLER

OIL COOLER - power shuttle transmission

1шт.

2

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

3

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

4шт.

6

D76570

BRACKET

- cooler, right-hand mounting, upper bracket holes use existing radiator mounting hardware

1шт.

7

D76569

STABILIZER

BRACKET - cooler, left-hand mounting

1шт.

8

RESERVED

1шт.

9

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

10

RESERVED

1шт.

11

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

12

D69050

HOSE

- cooler to tubes, 1/2" (13 mm) ID x 3" (76 mm) long

2шт.

13

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

14

D76866

TUBE - cooler inlet

1шт.

15

D76864

TUBE - cooler outlet

1шт.

16

D67296

GROMMET

INSULATOR - tube

4шт.

17

D68646

CLAMP

- tube, double

2шт.

18

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

19

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube clamp

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

22

D69051

HOSE

- power shuttle to tubes, 18" (457 mm) long

2шт.

23

D68972

CONNECTOR, ELEC

FITTING - four-way, special

1шт.

24

D55583

HOSE,12.7 mm ID x 101.60 mm, SAE 100R3

1шт.

25

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

26

D68973

HYD TUBE,0.5" OD x 4.84, 2.51" L

TUBE - outlet

1шт.

27

D48540

VALVE POPPET

VALVE - relief

1шт.

28

221-423

TEE,3/8" NPT

- three-way, , do not use plated tee this location 3/8" NPT

1шт.

29

D48539

FITTING

ELBOW - 75 degree, special

1шт.

30

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, male

2шт.

31

D48523

TUBE

- inlet

1шт.

32

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree, male

1шт.

33

REF

INSTRUCTION

POWER SHUTTLE ASSEMBLY - see Figure 175

1шт.
