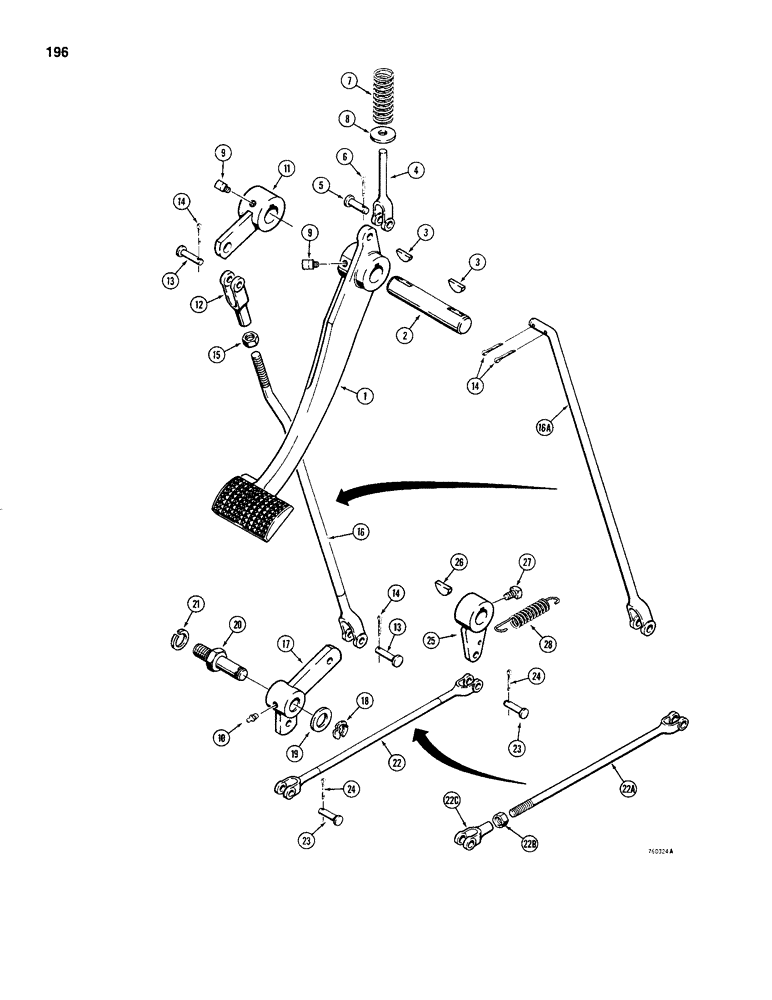

Запчасти Case 480C (196) - CLUTCH PEDAL AND LINKAGE (18) - CLUTCH

1

D67987

PEDAL

- clutch

1шт.

2

D67039

SHAFT

- clutch pedal

1шт.

3

126-33

WOODRUFF KEY,#D, 5/16" x 1 1/4"

#D, 5/16" x 1-1/4"

2шт.

4

D66142

YOKE

CLEVIS - clutch pedal

1шт.

5

141-64

CLEVIS PIN,7/16" x 1.190"

plated 7/16" x 1.190"

1шт.

6

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

7

D72404

SPRING

- clutch pedal return

1шт.

8

195-105

WASHER,7/16"

- flat, , plated 7/16"

1шт.

9

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

- square head, 3/8" - 16 NC x 3/4"

2шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

11

D76166

LEVER

- clutch

1шт.

12

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS - 1/2" diameter, used with Ref. 16

1шт.

13

141-56

CLEVIS PIN,1/2" x 1.360"

- 1/2" diameter, plated

1-2шт.

14

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2-3шт.

15

129-125

NUT,1/2"-20, G5

Used with Ref. 16 1/2"-20, G5

1шт.

16

D70394

ROD - clutch, upper, adjustable, if used

1шт.

16a

D74215

ROD - clutch, upper, non-adjustable, if used

1шт.

17

D70468

BELLCRANK - clutch

1шт.

18

D95097

RING, SNAP

RING - retaining

1шт.

19

195-45

WASHER,3/4"

1шт.

20

D67041

STUD

- lock, 3/4"

1шт.

22

D70473

ROD

- clutch, lower, non-adjustable, if used, order 22A - 22C

1шт.

22a

D76125

ROD

- clutch, lowe, adjustable, if used

1шт.

22b

129-123

NUT,3/8"-24, G5

1шт.

22c

213-41

ADJUSTABLE CLEVIS,3/8"-24

plated 3/8"-24

1шт.

23

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

24

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

25

D70454

LEVER - clutch

1шт.

26

126-126

WOODRUFF KEY - square head, 3/8" - 16 NC x 3/4"

1шт.

28

A36199

SPRING

- clutch return

1шт.
