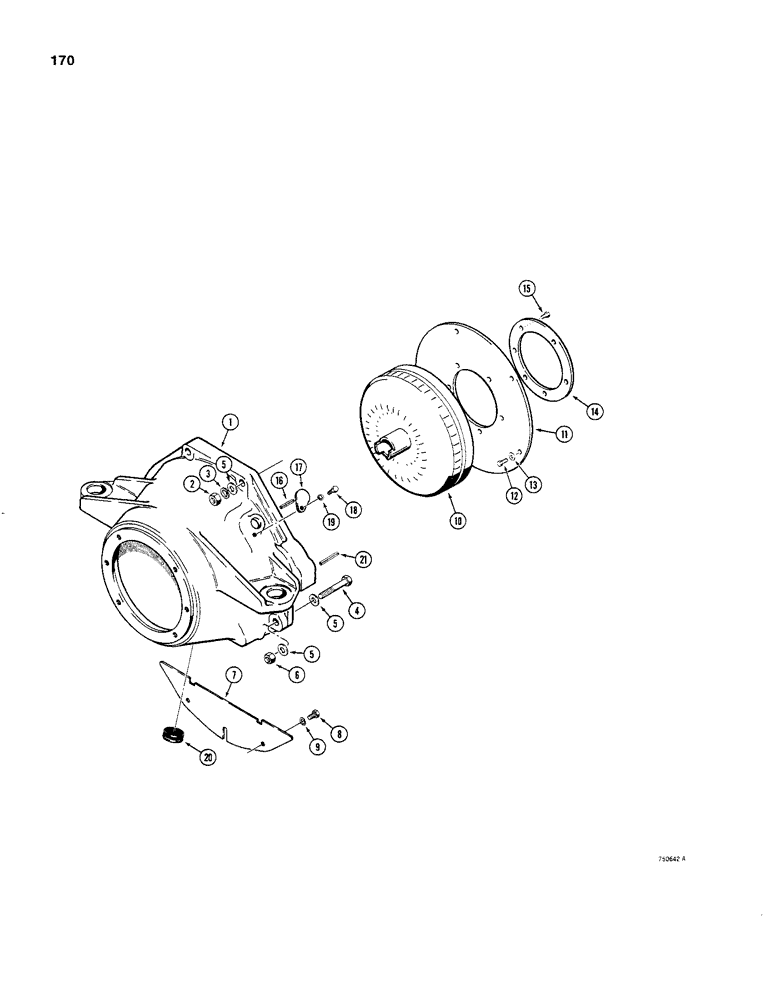

Запчасти Case 480C (170) - TORQUE CONVERTER AND HOUSING (17) - TORQUE CONVERTER

1

D63263

HOUSING

- torque converter

1шт.

2

129-127

NUT,5/8"-18, G5

2шт.

3

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , No longer used, not required 5/8"

2шт.

4

D76605

BOLT

- hex head, 5/8" - 18 NF x 3-1/2"

2шт.

5

A35147

WASHER

- hardened, 5/8"

6шт.

6

129-127

NUT,5/8"-18, G5

2шт.

7

D68670

COVER ASSY

COVER - flywheel

1шт.

8

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

D81693

CONVERTER

TORQUE CONVERTER - transmission

1шт.

11

A15670

PLATE

- torque converter

1шт.

12

121-103

BOLT,Lock Place, Hex, 5/16" - 18 x 5/8", Gr 8

Special, converter mounting Hex, Lock, 5/16"-18 x 5/8"

6шт.

13

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

- flat, special

6шт.

14

D81592

PLATE

- converter drive

1шт.

15

121-203

BOLT,Lock Place, Hex, 3/8" - 24 x 1/2", Gr 8

- special, drive plate mounting

6шт.

16

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

PIN, , Timing pin 1/8" x 1 1/2", Slotted

1шт.

17

A29068

COVER

- timing hole

1шт.

18

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20

D68661

PLUG

- converter drain

1шт.

21

139-62

PIN,1/8" x 1", Tapered

DOWEL PIN - tapered, 1" long

2шт.
