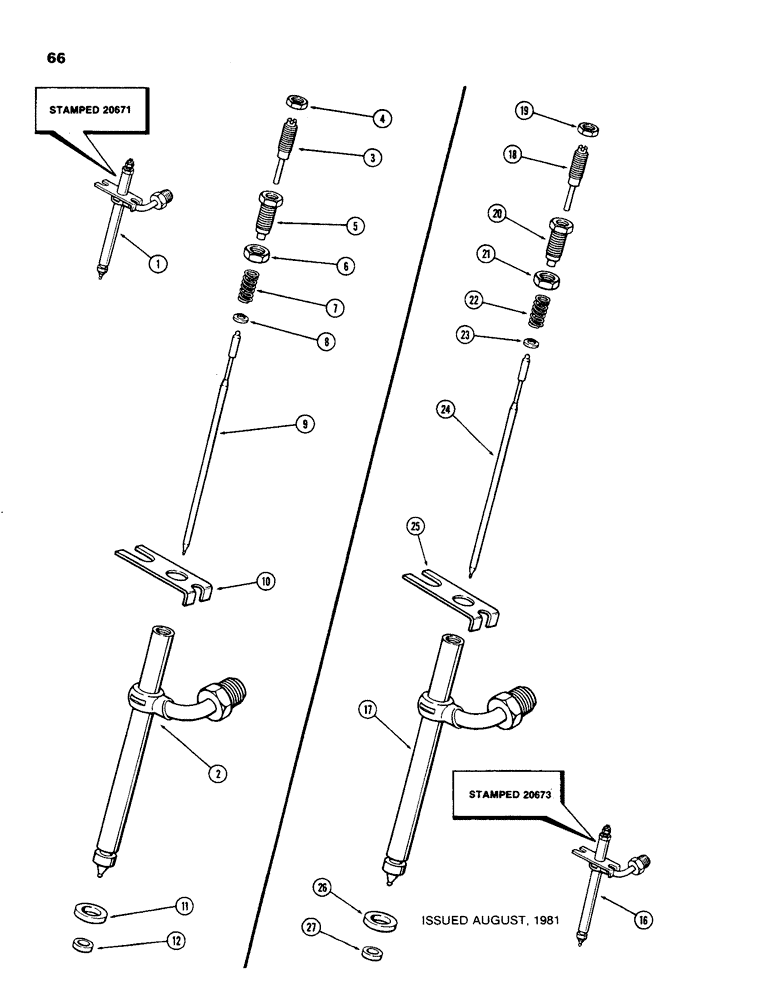

Запчасти Case 480C (066) - INJECTION NOZZLES, 188 DIESEL ENGINE, USED ENGINE SERIAL NUMBER 2835235 AND AFTER (10) - ENGINE

1

A140829

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injector (Stamped 20671 on body) (White color code), Includes: Ref. 2 - 12

4шт.

WHENEVER A NOZZLE IS REMOVED FROM THE HEAD, A41403 WASHER AND A41402 SEAL MUST BE REPLACED BEFORE THE NOZZLE IS INSTALLED BACK INTO TH HEAD.

1шт.

A140829R

REMAN-INJECT NOZZLE

480C USED ENGINE SERIAL NUMBER 2835235 AND AFTER

4шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

6

42424

NUT - lock, pressure adjusting screw

1шт.

7

A43733

SPRING

- pressure (9/16" free length with red stain)

1шт.

8

A44369

SEAT

- pressure spring

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

10

A43506

PLATE ASSY.

PLATE - nozzle hold down

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body, 3/8 x 9/16 x 1/8" nylon (9.53 x 14.29 x 3.18 mm)

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, 5/16 x 3/8 x 1/8" teflon (7.94 x 9.53 x 3.18 mm)

1шт.

16

A140828

FUEL SYSTEM INJECTOR

NOZZLE ASSEMBLY - fuel injector (Stamped 20673 on body) (White and yellow color code), prior to eng s/n 2835235, Includes: Ref. 16 - 27

4шт.

WHENEVER A NOZZLE IS REMOVED FROM THE HEAD, A41403 WASHER AND A41402 SEAL MUST BE REPLACED BEFORE THE NOZZLE IS INSTALLED BACK INTO TH HEAD.

1шт.

A140828R

REMAN-INJECT NOZZLE

480C PRIOR to S/N 2835235

4шт.

A140828C

CORE-NOZZLE, INJECT

Return Number

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - nozzle, prior to eng s/n 2835235

1шт.

18

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting, prior to eng s/n 2835235

1шт.

19

A43602

NUT

- lock, lift adjusting screw, prior to eng s/n 2835235

1шт.

20

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting, prior to eng s/n 2835235

1шт.

21

A42424

LOCK NUT

- lock, pressure adjusting screw, prior to eng s/n 2835235

1шт.

22

A43733

SPRING

- pressure (9/16" free length with red stain), prior to eng s/n 2835235

1шт.

23

A44369

SEAT

- pressue spring, prior to eng s/n 2835235

1шт.

24

NSS

NOT SOLD SEPARAT

VALVE - nozzle, prior to eng s/n 2835235

1шт.

25

A43506

PLATE ASSY.

PLATE - nozzle hold down, prior to eng s/n 2835235

1шт.

26

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body, 3/8 x 9/16 x 1/8" nylon (9.53 x 14.29 x 3.18 mm), prior to eng s/n 2835235

1шт.

27

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, 5/16 x 3/8 x 1/8" teflon (7.94 x 9.53 x 3.18 mm), prior to eng s/n 2835235

1шт.
