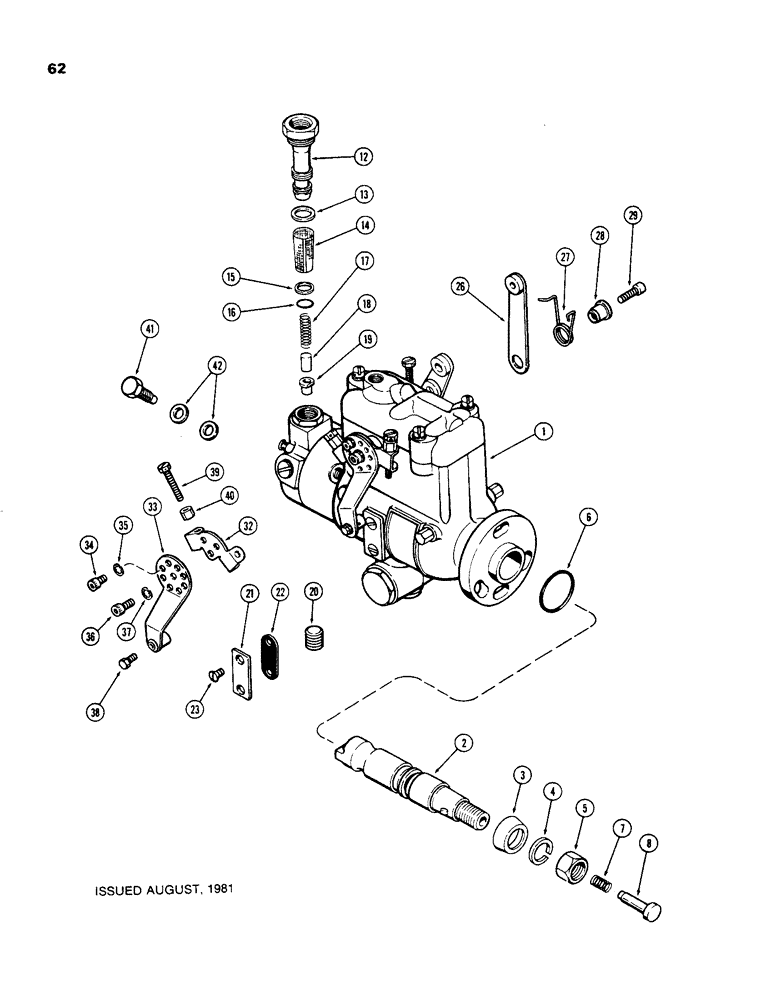

Запчасти Case 480C (062) - INJECTION PUMPS, 188 DIESEL ENGINE (10) - ENGINE

1

A51045

PUMP

ASSEMBLY - fuel injection (1900 RPM) (Mechanical Shuttle) (Used engine serial no. 2835303 and after) (Stanadyne model no. DBGFCC431-40AJ), Includes: Ref. 2 - 42

1шт.

1

A51629

PUMP

ASSEMBLY - fuel injection (1900 RPM) (Mechanical Shuttle) (Prior to engine serial no. 2835303) (Stanadyne model no. DBGFCC431-48AJ), Includes: Ref. 2 - 42

1шт.

1

A152378

PUMP

ASSEMBLY - fuel injection (2000 RPM) (Power Shuttle), Includes: Ref. 2 - 42

1шт.

2

A44710

SHAFT

ASSEMBLY - drive, with pin

1шт.

3

R14711

SEAL

- drive shaft

1шт.

4

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

5

25-119

NUT,9/16"-18, G5

- 9/16" NF hex, jam

1шт.

6

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - pilot tube

1шт.

7

G48502

SPRING

- thrust, pump shaft, 1-3/16" free length (30.16 mm)

1шт.

8

A44653

PLUNGER

- thrust spring

1шт.

12

A43869

SLEEVE

- end plate

1шт.

13

73666

AIR CLEANER

- end plate sleeve

1шт.

14

A43870

FILTER, FUEL

FILTER - element

1шт.

15

A43871

SEAL

- element, 3/8 x 1/2 x 1/16" (9.53 x 12.7 x 1.59 mm)

1шт.

16

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Sleeve

1шт.

17

A43867

SPRING

- regulating, 21/32" free length (16.66 mm)

1шт.

18

73621

PISTON

- regulating (Replaces A43866)

1шт.

19

A43868

SEAL

- regulating piston (Rubber)

1шт.

20

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

COVER - timing window

1шт.

22

NLS

NO LONGER SERVICED

- timing window cover

1шт.

23

73514

SCREW

- timing window cover

2шт.

26

G45338

ARM

- throttle

1шт.

27

G48505

SPRING

- throttle arm

1шт.

28

G49621

RETAINER

- throttle arm spring

1шт.

29

165-124

HEX SOC SCREW,Prev Torque, #10 - 32 x 3/4"

SCREW - throttle arm

1шт.

32

G45337

ARM

- shut-off

1шт.

33

NSS

NOT SOLD SEPARAT

LEVER - shut-off

1шт.

34

165-1

SCREW,#8 x 1/4"

- position, shut-off arm

1шт.

35

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Position screw Int Tooth, #8

1шт.

36

165-30

HEX SOC SCREW,#10 - 32 x 3/8"

SCREW - retaining, shut-off arm

1шт.

37

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, , Retaining screw Int Tooth, #10

1шт.

38

163-7

SCREW,Sl Hex, #8 - 32 x 3/8"

- pivot

1шт.

39

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- adjusting high idle (#10-32 x 1-3/4" slotted head)

2шт.

40

51200274

NUT

- lock, high idle adjusting screw

2шт.

41

73613

SCREW

- connector, injector tubes

4шт.

42

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screw

8шт.
