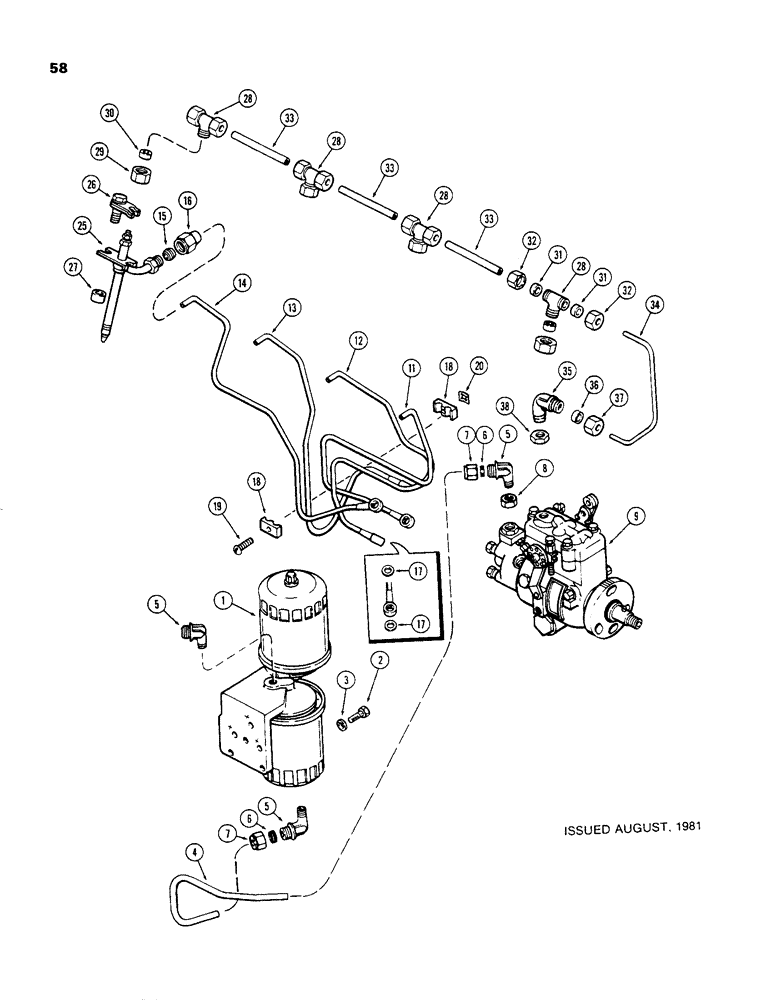

Запчасти Case 480C (058) - FUEL INJECTION AND FILTER SYSTEM, 188 DIESEL ENGINE (10) - ENGINE

1

REF

INSTRUCTION

FILTER ASSEMBLY - fuel (See Figure 61)

1шт.

2

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

3

92-5

LOCK WASHER,5/16"

3шт.

4

A51784

TUBE

- fuel, Serial Range: filter-pump

1шт.

5

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - pump and filter, Includes: Ref. 6 and 7

3шт.

6

222-104

SLEEVE,3/8" Tube

- (for ) 3/8" Tube

1шт.

7

222-114

NUT,5/8"-24

NUT - (for 3/8" tube)

1шт.

8

A38161

LOCK NUT

- sealing (at pump)(1/4" PT)

1шт.

9

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 63)

1шт.

11

A41391

TUBE

ASSEMBLY - pump to #1 nozzle (Includes Ref. 15, 16 and 17) Order 1-A37842 and 2-G49407

1шт.

12

A41392

TUBE

ASSEMBLY - pump to #2 nozzle (Includes Ref. 15, 16 and 17) Order 1-A37844 and 2-G49407

1шт.

13

A41393

TUBE

ASSEMBLY - pump to #3 nozzle (Includes Ref. 15, 16 and 17) Order 1-A37846 and 2-G49407

1шт.

14

A41394

TUBE

ASSEMBLY - pump to #4 nozzle Order 1-A37848 and 2-G49407, Includes: Ref. 15 - 17

1шт.

A41394 not illustrated properly the part pictured is A35061 see 310G crawler Figure 40 for illustration of all tubes if customer requires tube which looks like picture

1шт.

15

A37850

PIPE FITTING

SLEEVE - tube

1шт.

16

A37851

NUT

- tube

1шт.

17

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screw

2шт.

18

A58709

BRACKET

CLAMP - injection tube

4шт.

19

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamp (#10-24 x 1" round head)

2шт.

20

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10-24 hex

2шт.

25

REF

INSTRUCTION

NOZZLE ASSEMBLY - fuel injector (See Figure 67)

4шт.

26

A37837

CLAMP

ASSEMBLY - injector nozzle

4шт.

27

A37839

SPACER

- clamp

4шт.

28

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - nozzle leak-off lines

4шт.

29

A58961

NUT

-, Serial Range: tee-nozzle

4шт.

30

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

-, Serial Range: tee-nozzle

4шт.

31

222-102

SLEEVE,1/4" Tube

8шт.

32

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

8шт.

33

A38644

TUBE

- fuel leak-off

3шт.

34

A142906

TUBE

- fuel leak-off (to injection pump)

1шт.

35

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSEMBLY, Includes: Ref. 36 and 37

1шт.

36

222-102

SLEEVE,1/4" Tube

1шт.

37

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

1шт.

38

A38160

LOCK NUT

- sealing (1/8" PT)

1шт.
