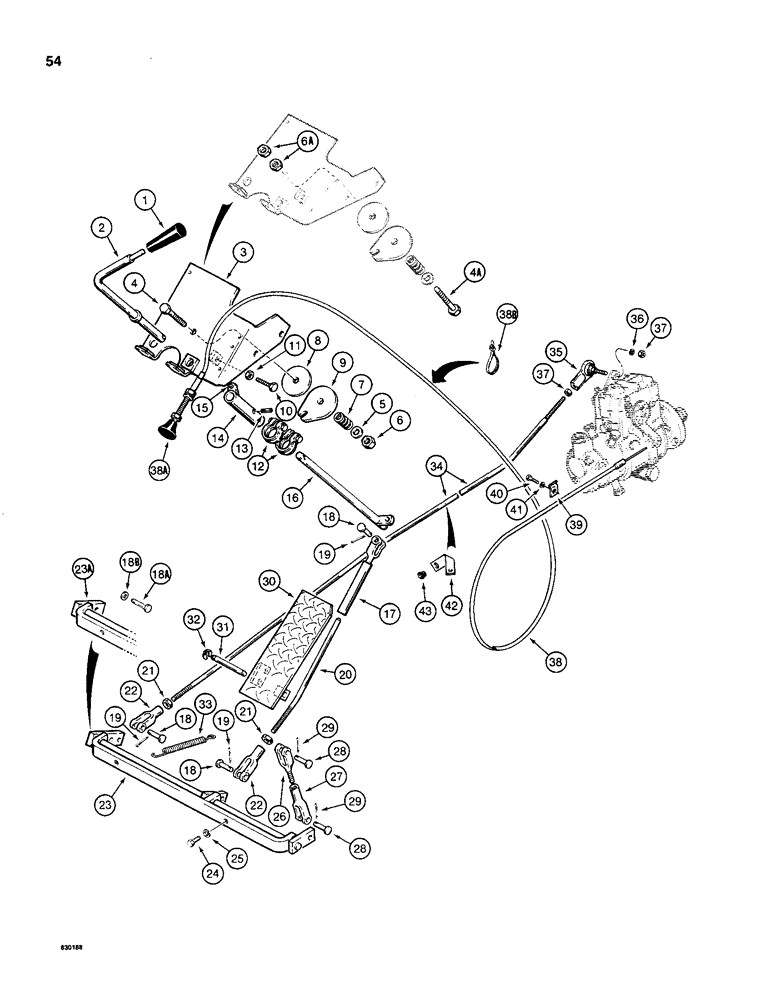

Запчасти Case 480C (054) - THROTTLE CONTROL LINKAGE AND FUEL SHUT-OFF CABLE (10) - ENGINE

1

A37247

KNOB

- hand throttle

1шт.

2

D76429

LEVER

CONTROL LEVER - hand throttle

1шт.

3

REF

INSTRUCTION

BRACKET - mounting, see Figure 147 for correct bracket

1шт.

4

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5, If used

1шт.

4a

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2", plated, if used

1шт.

5

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

1шт.

6

131-1116

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated, if used

1шт.

6a

129-105

NUT,Hex, 1/2" - 13, Gr 5

If used 1/2"-13, G5

2шт.

7

A34113

SPRING

- detent

1шт.

8

R15071

DISC

- friction

1шт.

9

D66096

LARGE PLATE

PLATE - throttle linkage

1шт.

10

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

12

D71880

CLAMP,22.23mm

- throttle linkage, includes hardware

2шт.

13

138-150

LOCK PIN,5/16" x 13/16", Slotted

PIN, 5/16" x 13/16", Slotted

2шт.

14

D71815

CLAMP

SLEEVE - throttle linkage, Includes: Ref. 15

1шт.

15

138-128

LOCK PIN,1/4" x 5/8", Slotted

PIN, 1/4" x 5/8", Slotted

1шт.

16

D71820

SHAFT

- throttle

1шт.

17

D66655

ROD

SLEEVE - throttle

1шт.

18

141-53

CLEVIS PIN,5/16" x .940"

plated - rod ends 5/16" x .940"

2-3шт.

18a

141-60

CLEVIS PIN,5/16" x 1 1/8"

- throttle control rod, used on models with spring attaching to clevis pin rather than to lug on shaft, used with Refs. 18B and 23A

1шт.

18b

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, used with Refs. 18A and 23A

1шт.

19

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

3шт.

20

D68266

ROD

- throttle

1шт.

21

129-122

NUT,5/16"-24, G5

2шт.

22

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - rod end

2шт.

23

NSS

NOT SOLD SEPARAT

SHAFT - throttle, with extra hole in left-hand lug for spring, no longer used, order Refs. 23A, 18A, and 18B

1шт.

23a

D75201

SHAFT

- throttle, used on models with spring attaching to clevis pin rather than to lug on shaft, when replacing Ref. 23 also order Refs. 18A and 18B

1шт.

24

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

D68186

YOKE

CLEVIS - special male

1шт.

27

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - female

1шт.

28

141-53

CLEVIS PIN,5/16" x .940"

plated - pedal shaft 5/16" x .940"

2шт.

29

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

30

D66581

ACCELERATOR - foot throttle

1шт.

31

D66055

PIN,9.53mm OD x 79.25mm L

- pivot

1шт.

32

D95093

RING

RETAINING RING - pivot pin

2шт.

33

D93823

SPRING

- throttle return

1шт.

34

D75463

ROD

- throttle control to injection pump

1шт.

35

D63154

JOINT,1/4" - 28 x 1-1/3"

BALL JOINT - at injection pump, 1/4", female

1шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

37

129-121

NUT,1/4"-28, G5

2шт.

38

D67656

CABLE

- fuel shutoff, Includes: Ref. 38A

1шт.

38a

L33717

KNOB

- part of D67656 cable

1шт.

38b

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

39

A26673

CLIP

- cable retaining

1шт.

40

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

41

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

42

D75466

SUPPORT

- throttle rod, no longer available, used on some models with throttle control rod requiring extra support, order D75463 throttler control rod (Ref. 34), which is rigid and no longer requires this support

1шт.

43

353-459

BUSHING

- snap type, if used

1шт.
