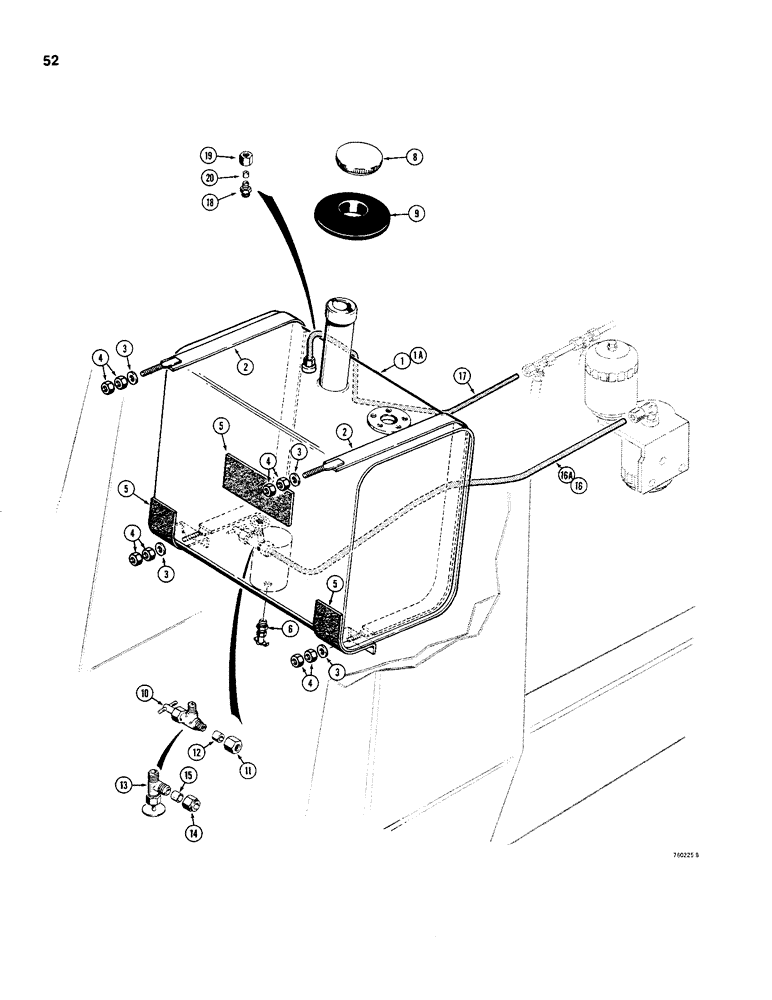

Запчасти Case 480C (052) - FUEL TANK AND FUEL LINES (10) - ENGINE

1

D64997

TANK

FUEL TANK - used before tractor SN 8956742, see order not below

1шт.

Order D75422 tank, D74027 valve and D76917 tube for service of D64997 tank.

1шт.

1a

D75422

FUEL TANK

- used on tractor SN 8956742 and after

1шт.

2

D65000

STRAP

- fuel tank mounting

2шт.

3

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

5

D64999

FOAM

INSULATOR - rubber mounting

3шт.

6

217-81

VALVE

- fuel tank drain

1шт.

7

RESERVED

1шт.

8

A51390

CAP

- fuel tank

1шт.

9

R14780

GROMMET

- fuel tank neck

1шт.

A27955

VALVE

SHUTOFF VALVE ASSEMBLY - fuel tank outlet, used before tractor SN 8956742, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - shutoff valve

1шт.

11

222-114

NUT,5/8"-24

NUT - compression, flex tube, 3/8"

1шт.

12

222-104

SLEEVE,3/8" Tube

- compression, 3/8"

1шт.

D74027

VALVE

SHUTOFF VALVE ASSEMBLY - fuel tank outlet, used on tractor SN 8956742 and after, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - shutoff valve

1шт.

14

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT - compression, tapered, 3/8"

1шт.

15

222-654

FERRULE,3/8" Tube, Comp

- compression, tapered, 3/8"

1шт.

16

D75104

TUBE - outlet, 3/8", used before tractor SN 8956742, order D76917

1шт.

16a

D76917

TUBE

- outlet, 3/8", used on tractor SN 8956742 and after

1шт.

17

D69896

TUBE - return, 1/4"

1шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR - straight, flex tube, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

19

87017024

TUBE NUT,1/2"-24

NUT - compression, flex tube, 1/4"

1шт.

20

222-102

SLEEVE,1/4" Tube

Compression 1/4" Tube

1шт.
