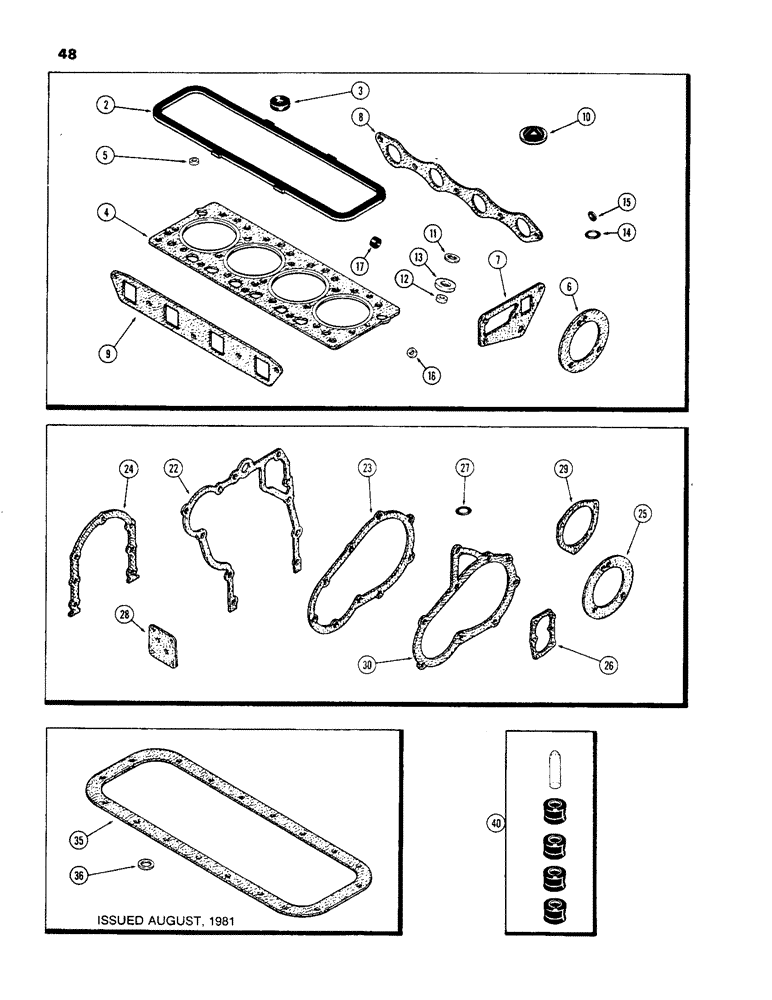

Запчасти Case 480C (048) - ENGINE GASKET KITS, 188 DIESEL ENGINE, VALVE GRIND KIT (10) - ENGINE

A155589

GASKET KIT

- valve grind (Replaces A43193 and A143000), Includes: Ref. 2 - 17

1шт.

for complete engine overhaul order 1-A155589, 1-A43198 and 1-A44758 gasket kits.

1шт.

2

A43030

GASKET,3.05mm Thk

- valve cover

1шт.

3

A142098

GROMMET

- valve cover studs (Rubber)

2шт.

4

A148745

CYLINDER HEAD GASKET

- cylinder head (Replaces A39279)

1шт.

5

G46851

SEAL

- valve stem (Rubber) (See Ref. 40)

8шт.

6

A38083

GASKET

- water, Serial Range: pump-body

1шт.

7

A38084

GASKET,1.27mm Thk

- water pump body to cylinder head

1шт.

8

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

9

G46871

GASKET

- intake manifold

1шт.

10

A50694

DISC

WASHER - sealing, intake manifold studs (See Figure 20 for application)

3шт.

11

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - fuel injection, Serial Range: lines-pump

8шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, injector nozzles

4шт.

13

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- seat, injector nozzles

4шт.

14

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- water pump body, 3/4 x 1 x 1/8" (19.05 x 25.4 x 3.17 mm)

1шт.

15

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- manifold studs, 3/8 x 9/16 x 3/32" (9.52 x 14.28 x 2.38 mm) (See Figure 20 for application)

3шт.

16

G49068

GASKET

- injector nozzle seat (Not used this application)

4шт.

17

222-101

SLEEVE,3/16" Tube

- for (Not used this application) 3/16" Tube

4шт.

17

222-103

SLEEVE,5/16" Tube

(Not used this application) 5/16" Tube

2шт.

A43198

GASKET

KIT - cyliner block, Includes: Ref. 22 - 30

1шт.

for complete engine overhaul order 1-A155589, 1-A43198 and 1-A44758 gasket kits.

1шт.

22

A51529

GASKET

- timing gear cover, cyl block kit

1шт.

23

A39925

GASKET

- injection pump drive cover, cyl block kit

1шт.

24

A39188

GASKET

- rear oil seal retainer, cyl block kit

1шт.

25

A38083

GASKET

- water pump, cyl block kit

1шт.

26

G46852

GASKET

- oil pump cver, cyl block kit

1шт.

27

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- water pump body to cover, 3/4 x 1 x 1/8" (19.05 x 25.4 x 3.17 mm), cyl block kit

1шт.

28

G46854

GASKET

- (Not used this application), cyl block kit

1шт.

29

A30042

GASKET

- (Not used this application), cyl block kit

1шт.

30

G46859

GASKET

- (Not used this application), cyl block kit

1шт.

A44758

GASKET

KIT - oil pan, Includes: Ref. 35 and 36

1шт.

for complete engine overhaul order 1-A155589, 1-A43198 and 1-A44758 gasket kits.

1шт.

35

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

36

A58608

GASKET

- drain plug, 3/4 x 1 x 1/16" (19.05 x 25.4 x 1.58 mm) Nylon, oil pan

1шт.

36

A34827

GASKET

- drain plug, 7/8 x 1-1/8 x 3/64" (22.22 x 28.57 x 1.19 mm) Copper, oil pan

1шт.

40

M20611

SEAL KIT

SEAL KIT - valve (Includes 4 seals and installation sleeve), oil pan

2шт.
