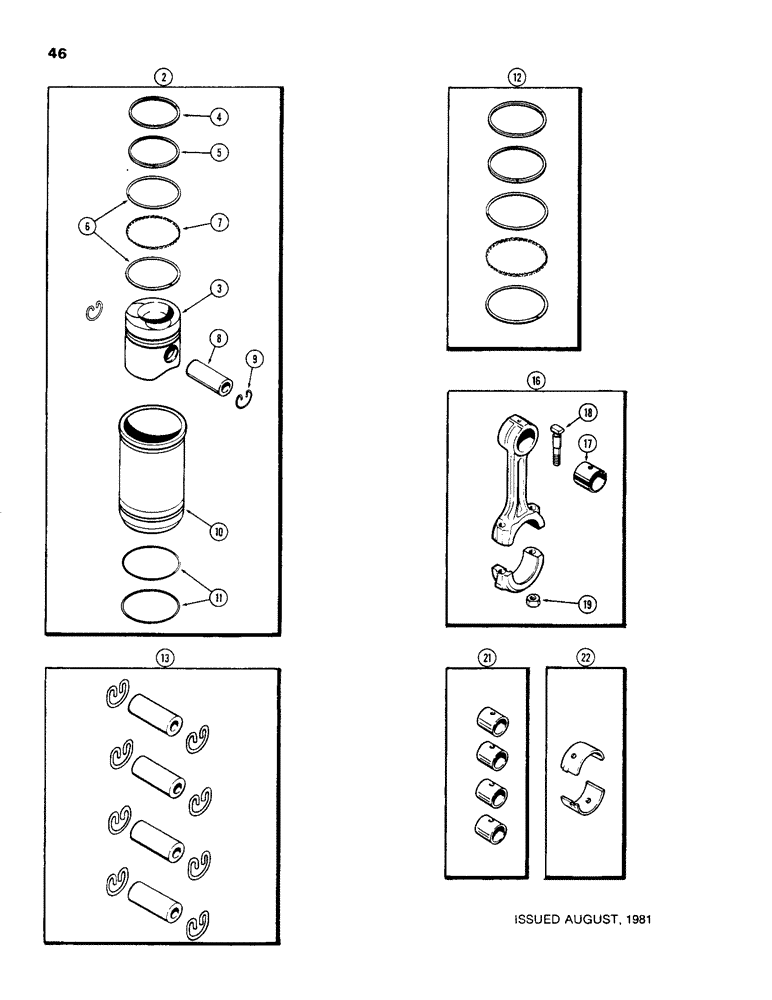

Запчасти Case 480C (046) - PISTONS, 188 DIESEL ENGINE, USED ENGINE SERIAL NUMBER 2836084 AND AFTER (10) - ENGINE

A151995

SLEEVE ASSY

PISTON ASSY (Set of 4) (Replaces A42813), Incl. Ref. 2 - 11

1шт.

Ref. 1, part number A139082. This should be shown as 8L x 16 Tires.

1шт.

2

A151995

SLEEVE ASSY

PISTON ASSY (Set of 1) (Replaces A42812), Incl. Ref. 3 - 11

4шт.

3

A38424

PISTON

1шт.

4

A51189

RING

Compression, first groove (See Ref. 12)

1шт.

5

G4817

RING

Compression, second groove (See Ref. 12)

1шт.

6

G47155

RAIL

Oil control, third groove (See Ref. 12)

2шт.

7

G47174

SPRING

SPACER - oil control rail (See Ref. 12)

1шт.

8

A35770

PISTON PIN,31.75mm OD x 80.44mm L

Piston

1шт.

9

G46702

RING, LOCKING

RING, LOCK Piston pin retaining

2шт.

10

A39006

SLEEVE

Piston (Replaces A36036)

1шт.

11

G46888

O-RING,3.737" ID x 3.943" OD

Sleeve packing, 3-3/4 x 3-7/8 x 1/8" (95.25 x 98.43 x 3.18 mm)

2шт.

12

A151857

PISTON RING SET

Re-ring (Set of 1)

4шт.

16

A136931

ROD, CONNECTING

ASSY - connecting, connecting rods, Incl. Ref. 17 - 19

4шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order Ref. 21), connecting rod

1шт.

18

G49064

STEP BOLT

Connecting rod bearing cap, connecting rods

2шт.

19

A51904

NUT

Bearing cap bolt, connecting rod, connecting rods

2шт.

21

A44083

KIT

BUSHING - piston pin (Set of 4), connecting rod

1шт.

22

A46050

BEARING LINER,53.66mm ID x 56.82mm OD x 26.67mm W

LINER - connecting rod bearing, standard (Set of 2), connecting rods

4шт.

22

A46051

BEARING LINER

SET - connecting rod bearing, -0.002" (-0.051 mm) (Set of 2), connecting rods

4шт.

22

A46052

BEARING LINER,53.4mm ID x 56.82mm OD x 26.67mm W

LINER SET - connecting rod bearing, -0.010" (-0.254 mm) (Set of 2), connecting rods

4шт.

22

A46053

BEARING LINER,53.15mm ID x 56.82mm OD x 26.67mm W

LINER SET - connecting rod bearing, -0.020" (-0.508 mm) (Set of 2), conecting rods

4шт.

22

A46054

BEARING LINER

SET - connecting rod bearing, -0.030" (-0.762 mm) (Set of 2), connecting rods

4шт.
