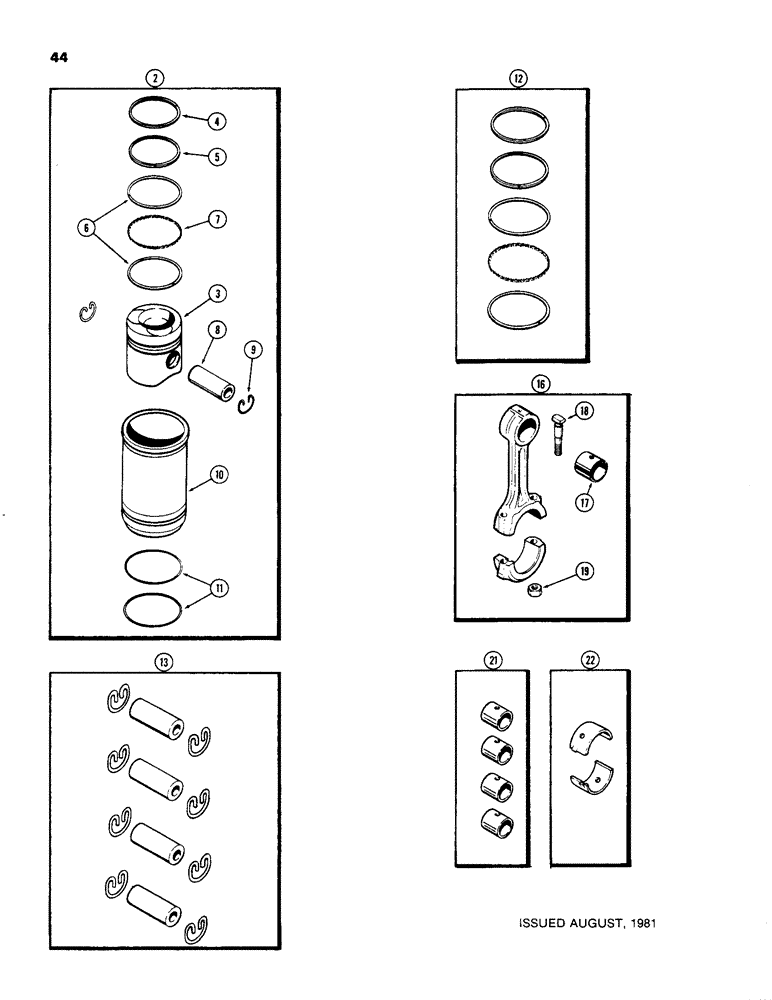

Запчасти Case 480C (044) - PISTONS, 188 DIESEL ENGINE, PRIOR TO ENGINE SERIAL NUMBER 2836084 (10) - ENGINE

2

A44003

SLEEVE

PISTON ASSEMBLY - (Set of 1), Includes: Ref. 3 - 11

4шт.

3

A51568

PISTON

1шт.

4

A51189

RING

- compression, first groove (See Ref. 12) (Replaces G4819)

1шт.

5

G4817

RING

- compression, second groove (See Ref. 12)

1шт.

6

G47155

RAIL

- oil control, third groove (See Ref. 12)

2шт.

7

G47174

SPRING

SPACER - oil control rail (See Ref. 12)

1шт.

8

A35770

PISTON PIN,31.75mm OD x 80.44mm L

PIN - piston

1шт.

9

G46702

RING, LOCKING

RING - piston pin retaining

2шт.

10

A39006

SLEEVE

- piston

1шт.

11

G46888

O-RING,3.737" ID x 3.943" OD

- sleeve packing, 3-3/4 x 3-7/8 x 1/8" (95.25 x 98.43 3.18 mm)

2шт.

12

A151857

PISTON RING SET

RING KIT - piston re-ring (Set of 1)

4шт.

16

A136931

ROD, CONNECTING

ROD ASSEMBLY - connecting, connecting rods, Includes: Ref. 17 - 19

4шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order Ref. 21), connecting rod

1шт.

18

G49064

STEP BOLT

BOLT - connecting rod bearing cap, connecting rods

2шт.

19

A51904

NUT

NUT - bearing cap bolt, connecting rod

2шт.

21

A44083

KIT

BUSHING SET - piston pin (Set of 4), connecting rod

1шт.

22

A46050

BEARING LINER,53.66mm ID x 56.82mm OD x 26.67mm W

LINER SET - connecting rod bearing (Standard) (Copper-Lead) (Set of 2), connecting rods

4шт.

Always replace all connecting rod bearing liners. Do not mix copper-lead and aluminum liners in the same engine.

1шт.

22

A36500

SEAL

LINER SET - connecting rod bearing (Standard) (Aluminum) (Set of 2) (Order A46050) , connecting, Start Serial: rod

4шт.

22

A46051

BEARING LINER

LINER SET - connecting rod bearing, -0.002" (-0.051 mm) (Copper- Lead)(Set of 2)

4шт.

Always replace all connecting rod bearing liners. Do not mix copper-lead and aluminum liners in the same engine.

1шт.

22

A36501

BEARING LINER

LINER SET - connecting rod bearing, -0.002" (-0.051 mm) (Aluminum) (Set of 2) (Order A46051), connecting rod

4шт.

22

A46052

BEARING LINER,53.4mm ID x 56.82mm OD x 26.67mm W

LINER SET - connecting rod bearing, -0.010" (-0.254 mm) (Copper- Lead) (Set of 2), connecting rod, Start Serial: ,

4шт.

Always replace all connecting rod bearing liners. Do not mix copper-lead and aluminum liners in the same engine.

1шт.

22

A36502

LINING

LINER SET - connecting rod bearing, -0.010" (-0.254 mm) (Aluminum) (Set of 2) (Order A46052), connecting rod

4шт.

22

A46053

BEARING LINER,53.15mm ID x 56.82mm OD x 26.67mm W

LINER SET - connecting rod bearing, -0.020" (-0.508 mm) (Copper- Lead) (Set of 2), connecting rod

4шт.

Always replace all connecting rod bearing liners. Do not mix copper-lead and aluminum liners in the same engine.

1шт.

22

A36503

BEARING LINER

LINER SET - connecting rod bearing, -0.020" (-0.508 mm) (Aluminum) (Set of 2) (Order A46053), connecting rod

4шт.

22

A46054

BEARING LINER

LINER SET - connecting rod bearing, -0.030" (-0.762 mm) (Copper- Lead) (Set of 2), connecting rod

4шт.

Always replace all connecting rod bearing liners. Do not mix copper-lead and aluminum liners in the same engine.

1шт.

22

A36504

KIT

LINER SET - connecting rod bearing, -0.030" (-0.762 mm) (Aluminum) (Set of 2) (Order A46054), connecting rod

4шт.
