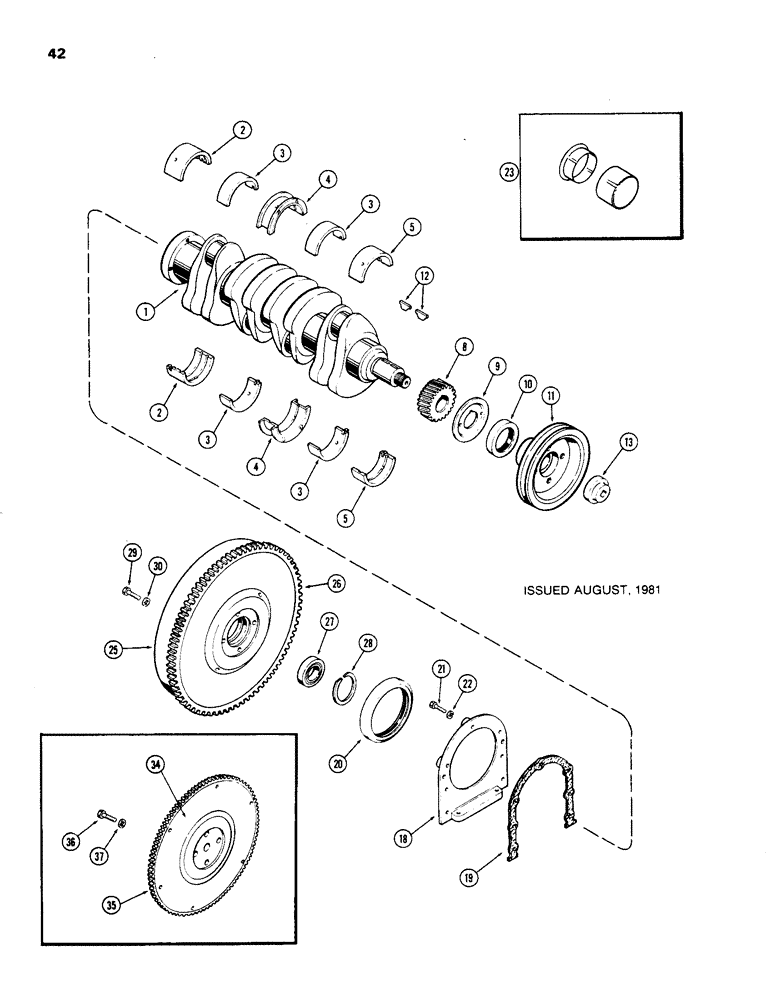

Запчасти Case 480C (042) - CRANKSHAFT, 188 DIESEL ENGINE (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A151015
CRANKSHAFT
- (Replaces A39146)
1шт.
2
A36495
BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W
LINER KIT - main bearing, rear, standard (Set of 2)
1шт.
2
A36496
LINING
LINER KIT - main bearing, rear, -0.002" (-0.06 mm) (Set of 2)
1шт.
2
A36497
BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W
LINER KIT - main bearing, rear, -0.010" (-0.26 mm) (Set of 2)
1шт.
2
A36498
KIT
LINER KIT - main bearing, rear, -0.020" (-0.50 mm) (Set of 2)
1шт.
2
A36499
BEARING LINER
LINER KIT - main bearing, rear, -0.030" (-0.76 mm) (Set of 2)
1шт.
3
A36485
LINING
LINER KIT - main bearing, intermediate, standard (Set of 2)
2шт.
3
A36486
LINING
LINER KIT - main bearing, intermediate, -0.002" (-0.06mm) (Set of 2)
2шт.
3
A36487
BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W
LINER KIT - main bearing, intermediate, -0.010" (-0.26 mm) (Set of 2)
2шт.
3
A36488
CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"
LINER KIT - main bearing, intermediate, -0.020" (-0.50 mm) (Set of 2)
2шт.
3
A36489
LINING
LINER KIT - main bearing, intermediate, -0.030" (-0.76 mm) (Set of 2)
2шт.
4
A36490
BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W
LINER KIT - main bearing, center, standard (Set of 2)
1шт.
4
A36491
LINING
LINER KIT - main bearing, center, -0.002" (-0.06 mm) (Set of 2)
1шт.
4
A36492
BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W
LINER KIT - main bearing, center, -0.010" (-0.26 mm) (Set of 2)
1шт.
4
A36493
BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W
LINER KIT - main bearing, center, -0.020" (-0.50 mm) (Set of 2)
1шт.
4
A36494
LINING
LINER KIT - main bearing, center, -0.030" (-0.76 mm) (Set of 2)
1шт.
5
A36480
BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W
LINER KIT - main bearing, front, standard (Set of 2)
1шт.
5
A36481
LINING
LINER KIT - main bearing, front, -0.002" (-0.06 mm) (Set of 2)
1шт.
5
A36482
BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W
LINER KIT - main bearing, front, -0.010" (-0.26 mm) (Set of 2)
1шт.
5
A36483
LINING
LINER KIT - main bearing, front, -0.020" (-0.50 mm) (Set of 2)
1шт.
5
A36484
LINING
LINER KIT - main bearing, front, -0.030" (-0.76 mm) (Set of 2)
1шт.
8
A39288
GEAR
- crankshaft
1шт.
9
A29259
SLINGER
- oil
1шт.
10
A39110
OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk
- oil, front, 2 x 3 x 1/2" (50.8 x 76.2 x 12.7 mm)
1шт.
11
A156354
PULLEY
- fan drive
1шт.
12
A39132
KEY
- pulley and gear
2шт.
13
A35673
NUT
- pulley retaining
1шт.
18
A38390
RETAINER
- rear oil seal
1шт.
19
A39188
GASKET
- retainer
1шт.
20
A51339
OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk
- oil, rear, 4 x 5 x 1/2" (101.6 x 127 x 12.7 mm)
1шт.
21
26-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 8
- retainer, 1/4 x 3/4" NC hex
4шт.
21
26-416
BOLT,Hex, 1/4" - 20 x 1", Gr 8
- retainer, 1/4 x 1" NC hex
3шт.
22
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
7шт.
23
A155893
SLEEVE
KIT - wear sleeve, front oil seal
1шт.
25
A135973
FLYWHEEL
ASSEMBLY, mechanical shuttle, Includes: Ref. 26
1шт.
26
G11710
GEAR
- ring, starter, flywheel mechanical shuttle
1шт.
27
A51983
BALL BEARING,1.1811" ID x 2.1654" OD x 0.5118"
BEARING - main shaft, front, flywheel mechanical shuttle
1шт.
28
49482
SNAP RING,2.125", Int, #212
Ring, Snap, , front brg, flywheel mechanical shuttle 2.125", Int, #212
1шт.
29
A37216
BOLT
- flywheel to crankshaft, 7/16 x 1-1/2" NF hex, mechanical shuttle
4шт.
30
A30013
WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk
- flywheel bolt, 7/16 x 3/4 x 1/16" (11.11 x 19.05 x 1.59 mm), mechanical shuttle
4шт.
34
A38915
FLYWHEEL
ASSEMBLY, power shuttle, Includes: Ref. 35
1шт.
35
G11710
GEAR
- ring, starter, power shuttle
1шт.
36
121-300
LOCK BOLT,Lock Place, Hex, 7/16" - 20 x 1 1/8", Gr 8
BOLT - flywheel to crankshaft, 7/16 x 1-1/8" NF hex, power shuttle
4шт.
37
A30013
WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk
- flywheel bolt, 7/16 x 3/4 x 1/16 (11.11 x 19.05 x 1.59 mm), power shuttle
4шт.
Выбрано товаров: 44
