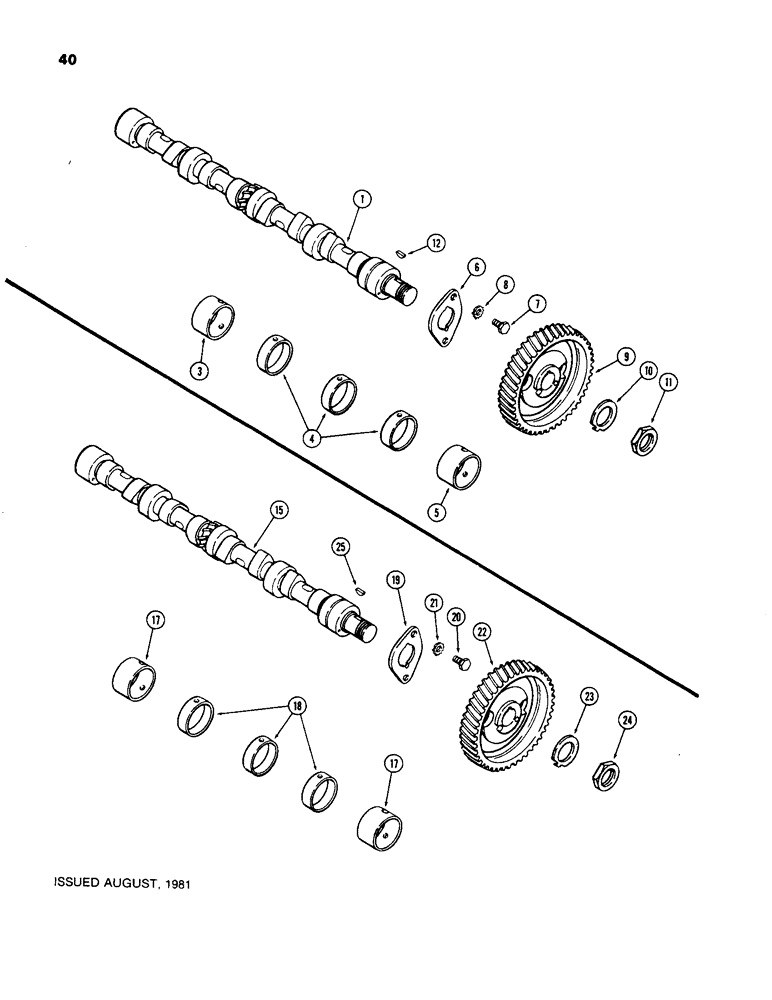

Запчасти Case 480C (040) - CAMSHAFT, 188 DIESEL ENGINE, USED ENGINE SERIAL NUMBER 2850355 AND AFTER (10) - ENGINE

1

A39013

CAM

SHAFT - (For service use A153521)

1шт.

3

A151068

BUSHING,44.51mm ID x 47.92mm OD x 24.64mm L

- rear, 1" wide (25.4 mm) with two oil holes

1шт.

4

A41231

BUSHING,44.5mm ID x 47.78mm OD x 12.45mm L

BUSHING - intermediate, 1/2" wide (12.7 mm) with one oil hole

3шт.

5

A41230

BUSHING,44.45mm ID x 47.75mm OD x 31.06mm L

- front, 1-1/4" wide (31.75 mm) with two oil holes

1шт.

6

A29290

PLATE

- thrust, camshaft

1шт.

7

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

BOLT - thrust plate

2шт.

8

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

9

A38931

GEAR

- camshaft

1шт.

10

A29438

LOCK NUT

WASHER - lock, camshaft nut (tab type)

1шт.

11

A30063

NUT

- camshaft gear retaining

1шт.

12

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Camshaft gear #6, 5/32" x 5/8"

1шт.

15

A39013

CAM

SHAFT - (For service use A153521), prior to eng s/n 2850355

1шт.

A151075

BUSHING

KIT - camshaft (Replaces A42746) (Order Reference 3, 4 and 5), prior to eng s/n 2850355, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - front and rear, 1-1/4" wide (31.75 mm) with two oil holes, prior to eng s/n 2850355

2шт.

18

NSS

NOT SOLD SEPARAT

BUSHING - center, 1/2" wide (12.7 mm) with one oil hole, prior to eng s/n 2850355

3шт.

19

A29290

PLATE

- thrust, camshaft, prior to eng s/n 2850355

1шт.

20

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

BOLT - thrust plate, prior to eng s/n 2850355

2шт.

21

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, , Prior to eng S/N 2850355 Ext Tooth, 5/16"

2шт.

22

A38931

GEAR

- camshaft, prior to eng s/n 2850355

1шт.

23

A29438

LOCK NUT

WASHER - lock, camshaft nut (tab type), prior to eng s/n 2850355

1шт.

24

A30063

NUT

- camshaft gear retaining, prior to eng s/n 2850355

1шт.

25

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Camshaft gear, Prior to eng S/N 2850355 #6, 5/32" x 5/8"

1шт.
