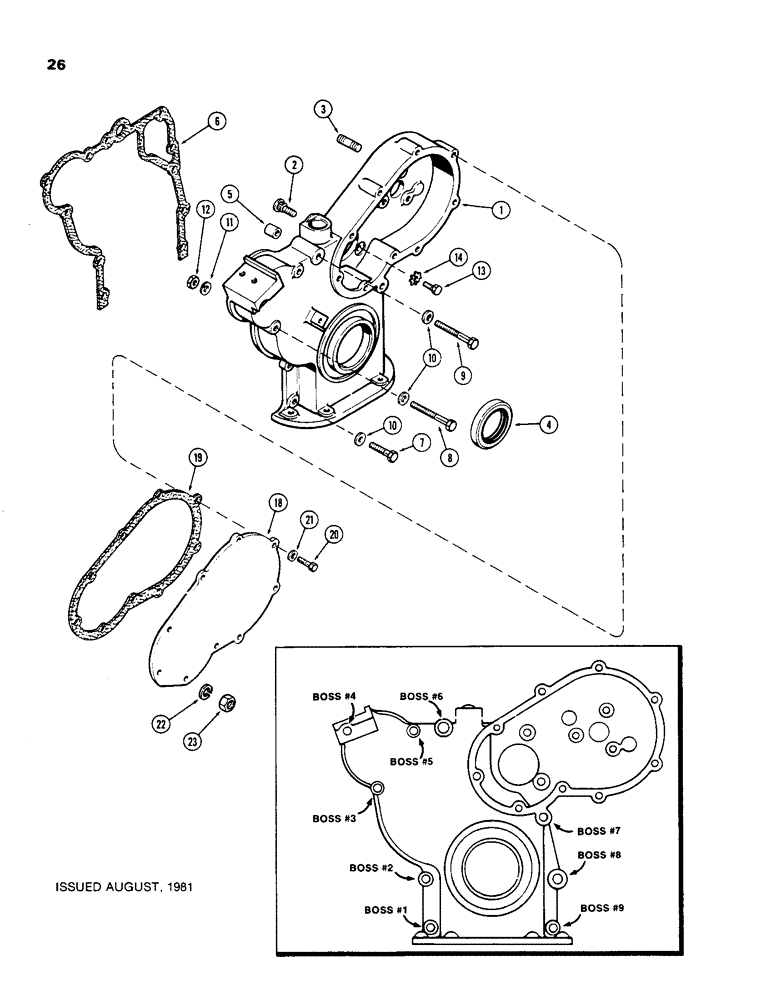

Запчасти Case 480C (026) - TIMING GEAR COVER, 188 DIESEL ENGINE (10) - ENGINE

1

A51981

COVER

ASSEMBLY - timing gear, Includes: Ref. 2 - 4

1шт.

2

A51649

STUD

- timing gear cover

2шт.

3

G102128

BOLT

- injection pump (3/8" NC x 1-1/2")

3шт.

4

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft, front, 2 x 3 x 1 1/2" (50.8 x 76.2 x 12.7 mm)

1шт.

5

A29442

RING

DOWEL - cover locating, 9/16 x 3/8 x 5/8" (14.29 x 9.53 x 15.88 mm)

2шт.

6

A51529

GASKET

-, Serial Range: cover-block

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover (Boss #1, #2, and #9) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover (3/8 x 1-1/2" NC hex) (Boss #8)

1шт.

8

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- cover (3/8 x 2-3/4" NC hex) (Boss #7)

1шт.

9

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- cover (3/8 x 3" NC hex) (Boss #6)

1шт.

9

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- cover (3/8 x 3-1/2" NC hex) (Boss #3, #4 and #5)

3шт.

10

A50820

WASHER

- 3/8 x 3/4 x 1/8" (9.53 x 19.05 x 3.18 mm)

9шт.

10

95-6

WASHER,3/8"

- 7/16 x 1 x 1/16" (11.11 x 25.4 x 1.58 mm)

1шт.

10

195-22

WASHER

- 3/8 x 3/4 x 1/16" (9.53 x 19.05 x 1.58 mm)

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

3шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Cover (inside) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

14

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

18

A51908

COVER

COVER - injection pump gears

1шт.

19

A39925

GASKET

- drive gear cover

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

5шт.

20

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover (3/8 x 1-1/2 NC hex)

2шт.

21

A50820

WASHER

- 3/8 x 3/4 x 1/8" (9.53 x 19.05 x 3.18 mm)

7шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.
