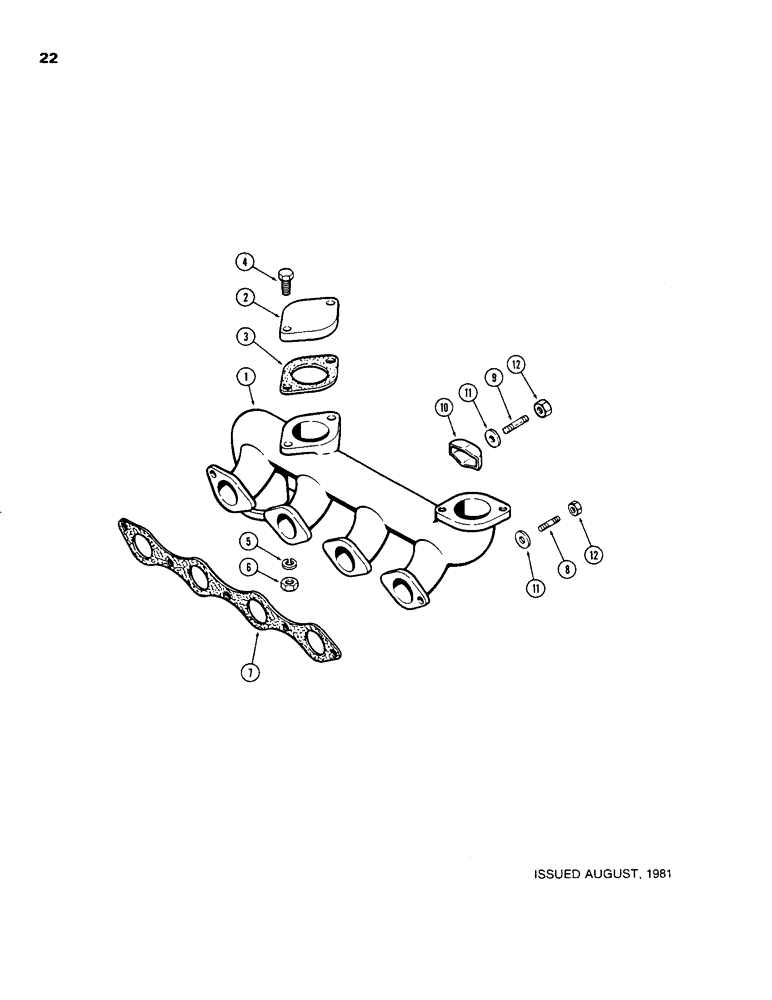

Запчасти Case 480C (022) - EXHAUST MANIFOLD, 188 DIESEL ENGINE (10) - ENGINE

1

A39233

MANIFOLD

ASSEMBLY - exhaust, Includes: Ref. 2 - 6

1шт.

2

A38188

PLATE

- cover

2шт.

3

G46853

MANIFOLD GASKET

- cover plate

2шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover plate Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

131-903

NUT,3/8"-16

NUT - 3/8" NC Seez-pruf

4шт.

7

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

8

A29431

STUD

- manifold ends, 3/8" NC x 1-3/4"

3шт.

9

A39129

STUD

- manifold clamps, 3/8" NC x 2-1/16"

3шт.

10

A35028

CLAMP

- manifold

3шт.

11

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16"

5шт.

12

131-903

NUT,3/8"-16

NUT - 3/8" NC Seez-pruf

5шт.
