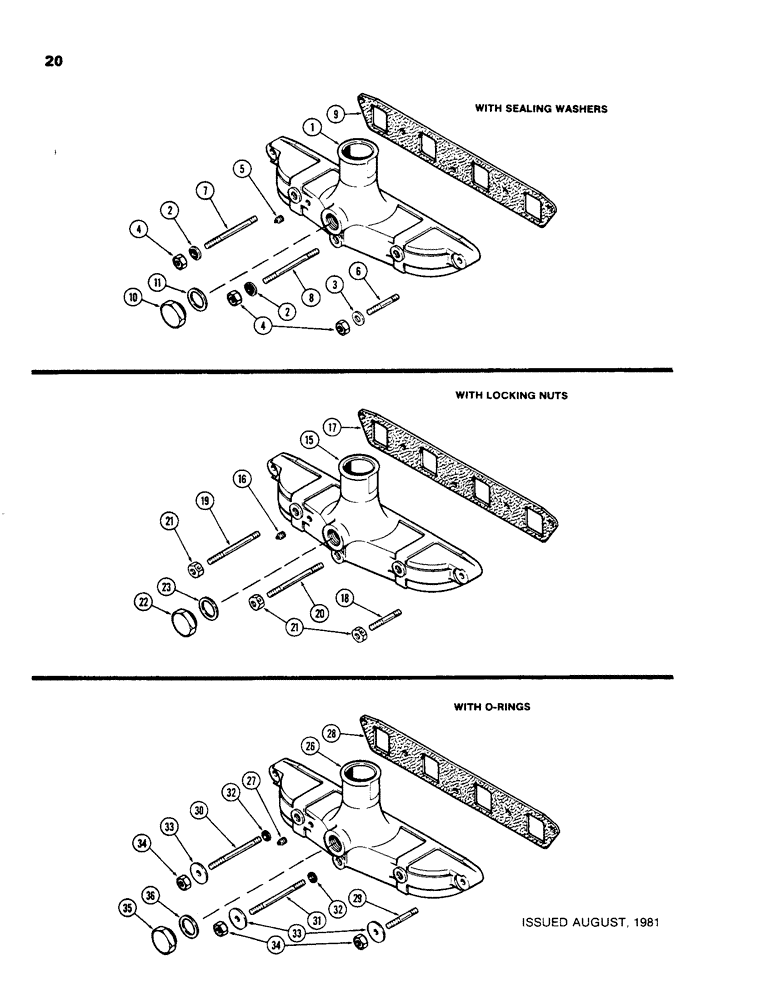

Запчасти Case 480C (020) - INTAKE MAINFIELD, 188 DIESEL ENGINE, WITH SEALING WASHERS (10) - ENGINE

1

A152536

MANIFOLD

ASSEMBLY - intake, Includes: Ref. 2 - 5

1шт.

2

A50694

DISC

WASHER - sealing, with rubber insert (For intermediate and center stud holes)

3шт.

3

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16" (For end stud holes)

2шт.

4

25-166

NUT,3/8"-16, G5, Hvy

- 3/8" NC hex

5шт.

5

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" PT, square head

1шт.

6

A140924

STUD

- manifold end holes, 3/8" NC x 2-7/16"

2шт.

7

A153248

STUD

- manifold intermediate holes, 3/8" NC x 4-13/16"

2шт.

8

A51500

STUD

- manifold center hole , 3/8" NC x 5-5/16"

1шт.

9

G46871

GASKET

-, Serial Range: manifold-head

1шт.

10

A20917

PLUG

- manifold (Heater hole)

1шт.

11

A20916

MANIFOLD GASKET

GASKET - plug

1шт.

15

A148898

MANIFOLD - intake (Order A152536), with locking units

1шт.

16

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" PT, square head, with locking units

1шт.

17

G46871

GASKET

- manifold to head, with locking units

1шт.

18

A140924

STUD

- manifold end holes, 3/8" NC x 2-7/16", with locking units

2шт.

19

A153248

STUD

- manifold intermediate holes, 3/8" NC x 4-5/16", with locking units

2шт.

20

A51500

STUD

- manifold center hole, 3/8" NC x 5-5/16", with locking units

1шт.

21

131-206

NUT,3/8"-16

NUT - lock, 3/8" NC with nylon insert, with locking units

5шт.

22

A20917

PLUG

- manifold (Heater hole), with locking units

1шт.

23

A20916

MANIFOLD GASKET

GASKET - plug, with locking units

1шт.

26

A51876

MANIFOLD

ASSEMBLY - intake (Order A152536), with o-rings, Includes: Ref. 27

1шт.

27

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" PT, square head, with o-rings

1шт.

28

G46871

GASKET

- manifold to head, with o-rings

1шт.

29

A140924

STUD

- manifold end holes, 3/8" NC x 2-7/16", with o-rings

2шт.

30

A153248

STUD

- manifold intermediate holes, 3/8" NC x 4-5/16", with o-rings

2шт.

31

A51500

STUD

- manifold center hole, 3/8 NC x 5-5/16", with o-rings

1шт.

32

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- center and intermediate studs, 3/8 x 9/16 x 3/32" (9.53 x 14.29 x 2.38 mm), with o-rings

3шт.

33

D41740

WASHER

- 3/8 x 1 x 1/8" (9.53 x 25.4 x 3.18 mm), with o-rings

5шт.

34

D41740

WASHER

NUT - 3/8" NC hex

5шт.

35

A20917

PLUG

- manifold (Heater hole)

1шт.

36

A20916

MANIFOLD GASKET

GASKET - plug

1шт.
