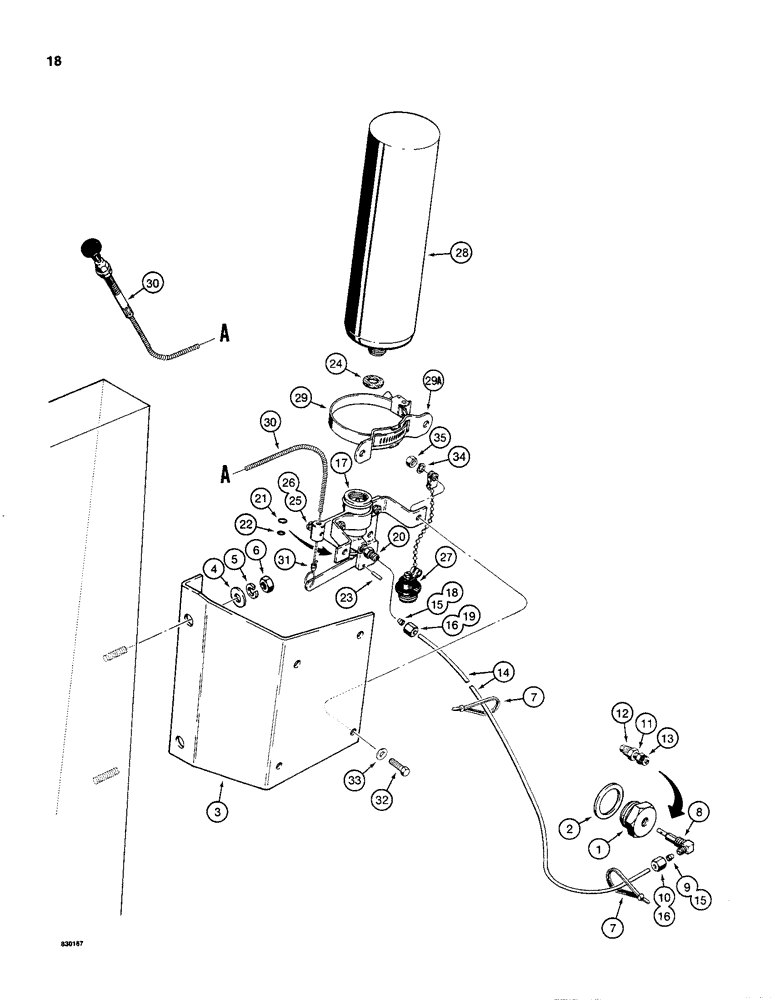

Запчасти Case 480C (018) - COLD START SYSTEM (10) - ENGINE

1

L10283

PLUG

- manifold, used with Ref. 8

1шт.

1

D79761

PLUG

- manifold, used with Ref. 11

1шт.

2

A20916

MANIFOLD GASKET

WASHER - special

1шт.

3

D70731

BRACKET

- cold start

1шт.

4

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

6

9635082

NUT,5/16" - 18, Gr 5

2шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

D55946

JET

INJECTOR ASSEMBLY - cold start, 90 degree, used with L10283 manifold plug only, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

INJECTOR - D55946 assembly, 90 degree

1шт.

9

222-650

SLEEVE,1/8" Tube, Comp

Brass 1/8" Tube, Comp

1шт.

10

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8", brass 5/16"-24, 45º Fl, Comp

1шт.

11

D81319

NOZZLE INJECTION

INJECTOR ASSEMBLY - cold start, straight, used with D79761 manifold plug only, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - injector

1шт.

13

NSS

NOT SOLD SEPARAT

NUT AND SLEEVE - one piece, service with 222-660 nut and 222-650 sleeve

1шт.

D55947

TUBE

ASSEMBLY - valve to injector, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

TUBE - 60" (1524 mm) long, cut to 48" (1219 mm)

1шт.

15

222-650

SLEEVE,1/8" Tube, Comp

Brass 1/8" Tube, Comp

2шт.

16

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8", brass 5/16"-24, 45º Fl, Comp

2шт.

D88743

VALVE

ASSEMBLY - starting fluid injection, replaces valve with elbow fitting, Includes: Ref. 17 - 27

1шт.

17

NSS

NOT SOLD SEPARAT

VALVE - actuator, Includes: Ref. 18 and 19

1шт.

18

222-650

SLEEVE,1/8" Tube, Comp

Brass 1/8" Tube, Comp

1шт.

19

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8", brass 5/16"-24, 45º Fl, Comp

1шт.

20

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

D55951

REPAIR KIT

KIT - service, valve seal, Includes: Ref. 21 - 24

1шт.

21

A51274

O-RING,0.145" ID x 0.285" OD

- internal plunger, upper

1шт.

22

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- internal plunger, lower

1шт.

23

135-313

GROOVED PIN,3/32" x 1/2"

Pin, Grooved, , drive 3/32" x 1/2"

1шт.

24

D74422

GASKET

SEAL - cylinder to valve cork

1шт.

25

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- pan heat, slotted, NO. 10 - 24 NC x 1/2", plated

1шт.

26

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

27

N8826

PLUG

- valve, with chain

1шт.

28

D55767

CYLINDER

- starting fluid, ether

1шт.

29

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - cylinder

1шт.

29a

L32579

BRACKET - clamp

1шт.

30

D88740

CABLE

- cold start control, 54" (1371.6 mm) long

1шт.

31

222-650

SLEEVE,1/8" Tube, Comp

Brass, Control cable to valve lever 1/8" Tube, Comp

1шт.

32

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

33

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

34

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

35

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.
