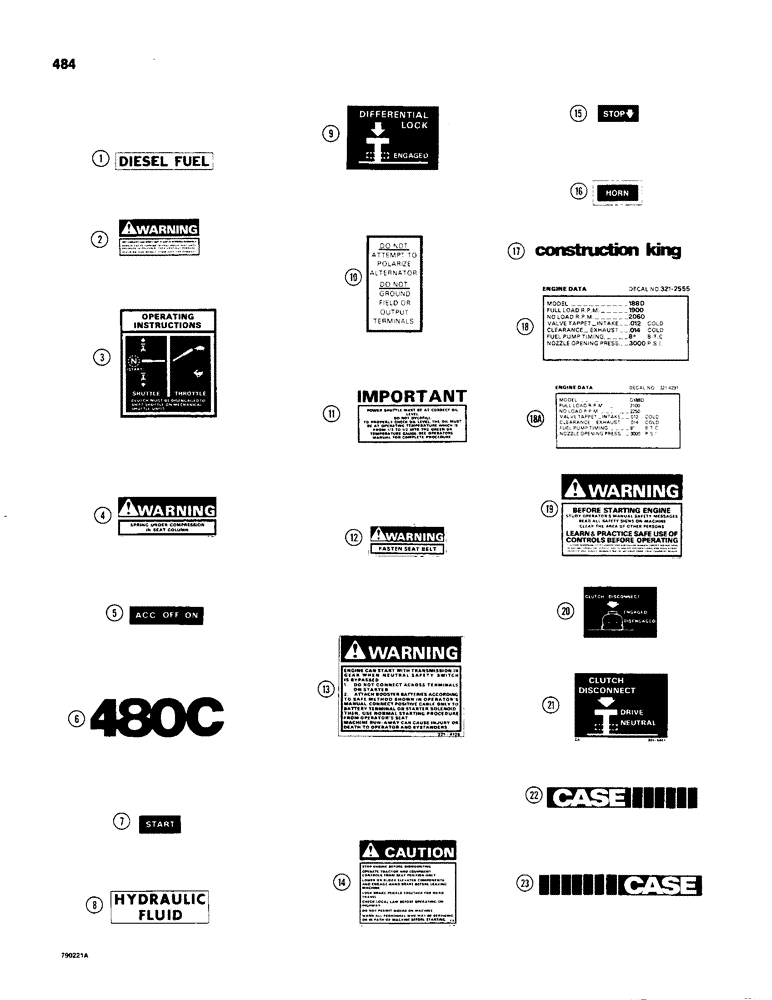

Запчасти Case 480C (484) - DECALS, SERIAL NUMBER 8980751 AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

D87273

KIT

- decal, 480C, SN 8980751 and after, Includes: Ref. 1 - 45

1шт.

1

321-230

DECAL

- Diesel Fuel

1шт.

2

321-5734

DECAL

- Warning, hot coolant

1шт.

3

321-3025

DECAL

- instructions, throttle and shifting

1шт.

4

321-3055

DECAL

- Warning, seat spring

1шт.

5

321-3402

DECAL

- key switch

1шт.

6

321-3314

DECAL

- 480C, hood

2шт.

6a

321-5588

DECAL - 480C, white color for use on dark painted tractors, not included in Kit, must be ordered separately, not shown

2шт.

7

321-3401

DECAL

- Start, push button

1шт.

8

321-229

DECAL

- Hydraulic Fluid

1шт.

9

321-1646

DECAL

- Differential Lock

1шт.

10

321-1061

DECAL

- alternator instructions

1шт.

11

321-3882

DECAL

- oil check

1шт.

12

321-5974

DECAL

- Warning, fasten seat belt

1шт.

13

321-5974

DECAL

- Warning, starter, negative ground

1шт.

14

321-3022

DECAL

- Caution, safety warnings

1шт.

15

321-3579

DECAL

- Stop, fuel shutoff

1шт.

16

321-3294

DECAL

- Horn

1шт.

17

321-3231

DECAL

- construction king, canopy or cab

2шт.

17a

321-5586

DECAL

- construction king, white color for use on dark painted tractors, not included in Kit, must be ordered separately, not shown

1шт.

18

321-2555

DECAL

- Engine Data, mechanical shuttle

1шт.

18a

321-4291

DECAL

- Engine Data, power shuttle

1шт.

19

321-3705

DECAL

- Warning, safety warning

1шт.

20

321-3307

DECAL

- clutch cutout switch, used before SN 8981142

1шт.

21

321-5441

DECAL

- clutch cutout switch, used on SN 8981142 and after

1шт.

22

321-5321

DECAL

- CASE, hood, right-hand, models without loader

1шт.

22a

321-5594

DECAL - CASE, hood, right-hand, models without loader, white color for use on dark painted tractors, not included in Kit, must be ordered separately, not shown

1шт.

23

321-5119

DECAL

- CASE, hood, left-hand, models without loader

1шт.

23a

321-5591

DECAL - CASE, hood, left-hand, models without loader, white color for use on dark painted tractors, not included in Kit, must be ordered separately, not shown

1шт.

REF

INSTRUCTION

KIT - decal, 480C, SN 8980751 and after

1шт.

24

321-3580

DECAL

- loader control, models with dual control lever

1шт.

24a

321-5684

DECAL

- loader control, models with single control lever

1шт.

25

321-5592

DECAL - CASE, with tread, right-hand

1шт.

25a

321-5592

DECAL - CASE, with tread, right-hand, white color for use on dark painted tractors, not included in Kit, must be ordered separately, not shown

1шт.

26

321-5127

DECAL

- CASE, with tread, left-hand

1шт.

26a

321-5593

DECAL - CASE, with tread, left-hand, white color for use on dark painted tractors, not included in Kit, must be ordered separately, not shown

1шт.

27

321-5128

DECAL

- CASE, backhoe console

1шт.

27a

321-6265

DECAL - CASE, backhoe console, white color for use on dark painted, tractors, not included in Kit, must be ordered separately, not shown

1шт.

28

321-5129

DECAL

- CASE, right-hand, dipper

1шт.

29

321-5130

DECAL

- CASE, left-hand, dipper

1шт.

30

321-2454

DECAL

- backhoe lever operation, models with foot swing

1шт.

31

321-917

DECAL

- dipper and bucket lever, models with hand swing, if used

1шт.

31a

321-5819

DECAL

- dipper and bucket lever, models with hand swing, if used

1шт.

32

321-918

DECAL

- boom and swing lever, models with hand swing, if used

1шт.

32a

321-5820

DECAL

- boom and swing lever, models with hand swing, if used

1шт.

33

321-919

DECAL

- stabilizer levers, models with hand swing

1шт.

34

321-4481

DECAL

- Warning, swinging boom

2шт.

35

321-5129

DECAL

- CASE, left-hand, extendahoe models

1шт.

35a

321-5683

DECAL - CASE, left-hand, all backhoe dippers, white color for use on dark painted tractors, not included in Kit, must be ordered separately, not shown

1шт.

36

321-5130

DECAL

- CASE, right-hand, extendahoe models

1шт.

36a

321-5682

DECAL - CASE, right-hand, all backhoe dippers, white color for use on dark painted tractors, not included in Kit, must be ordered separately, not shown

1шт.

37

321-3139

DECAL

- extendahoe

2шт.

38

321-5361

KIT

DECAL - CASE, three-point hitch frame

2шт.

39

321-3710

DECAL

- Warning, PTO shield, used on models with PTO

1шт.

40

321-3888

DECAL

- Warning, PTO speed, used on models with PTO

1шт.

41

321-3934

DECAL

- PTO circuit control

1шт.

42

321-4408

DECAL

- Warning, safety strut for loader

1шт.

43

D87870

DECAL

- reflector, red, rear

2шт.

44

D55216

PAD,2" x 9"

STRIP - anti-skid, short

2-4шт.

45

D80270

ANTI-SKID STRIP,635mm / 25 Inch

STRIP, ANTI-SKID, long

1шт.

46

321-4739

EMBLEM

- case, metal, front

1шт.

47

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - special, 1/4", attaches emblem to grille

2шт.

48

321-2101

DECAL

- oil filter

1шт.
