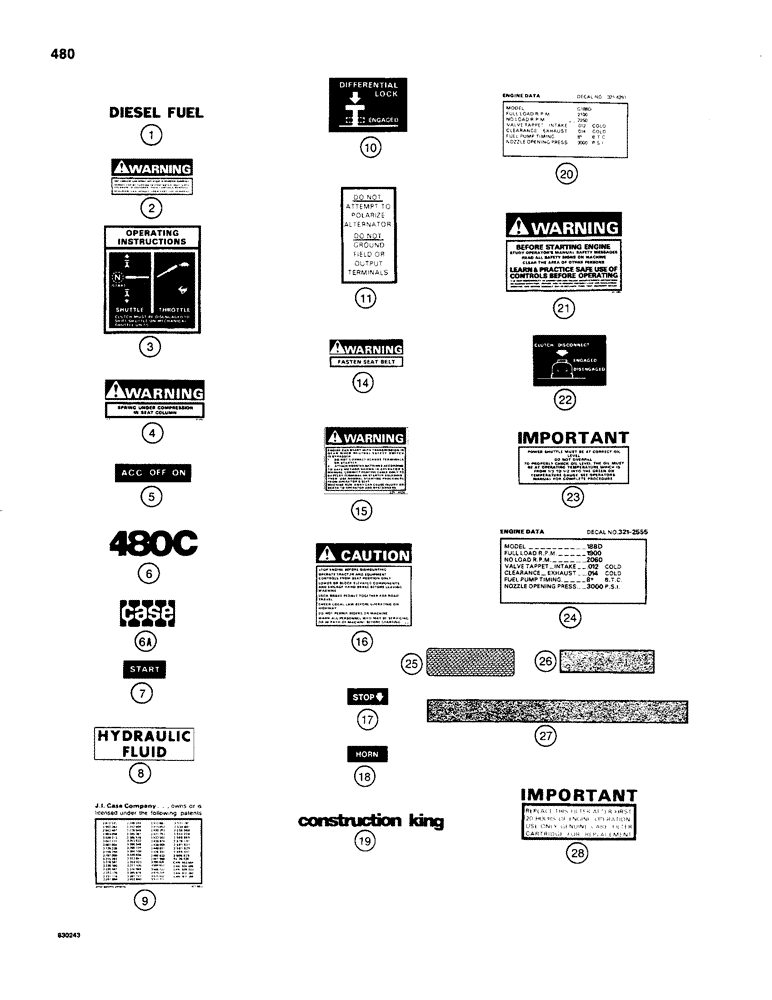

Запчасти Case 480C (480) - DECALS, BEFORE SERIAL NUMBER 8980751, BASIC TRACTOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

D74421

KIT

- decal, 480C, also includes Refs. on Figure 482, Includes: Ref. 1 - 27

1шт.

1

321-230

DECAL

- Diesel Fuel

1шт.

2

321-5734

DECAL

- Warning, hot coolant

1шт.

3

321-3025

DECAL

- instructions, throttle and shifting

1шт.

4

321-3055

DECAL

- Warning, seat spring

1шт.

5

321-3402

DECAL

- ignition switch

1шт.

6

321-3314

DECAL

- 480C, hood

2шт.

6a

321-1572

DECAL

- Case, hood, used on models without loader only

2шт.

7

321-3401

DECAL

- Start, push button

1шт.

8

321-229

DECAL

- Hydraulic Fluid

1шт.

9

321-663

DECAL

- equipment patent

1шт.

10

321-1646

DECAL

- Differential Lock

1шт.

11

321-1061

DECAL

- alternator instructions

1шт.

12

RESERVED

1шт.

13

RESERVED

1шт.

14

321-3060

DECAL

- Warning, fasten seat belt

1шт.

15

321-5974

DECAL

- Warning, starter, negative ground

1шт.

16

321-3022

DECAL

- Caution, safety warnings

1шт.

17

321-3579

DECAL

- Stop, fuel shutoff

1шт.

18

321-3294

DECAL

- Horn

1шт.

19

321-3231

DECAL

- construction king, canopy or cab

2шт.

20

321-2977

DECAL - Engine Data, used before engine SN 2838119 on mechanical shuttle models or SN 2836150 on power shuttle models

1шт.

20

321-2555

DECAL

- Engine Date, used on engine SN 2837119 and after on mechanical shuttle models or engine SN 2836150 and after on power shuttle models

1шт.

21

321-3705

DECAL

- Warning, safety warning

1шт.

22

321-3307

DECAL

- clutch cutout switch

1шт.

23

321-3882

DECAL

- oil check

1шт.

24

321-4291

DECAL

- engine data, power shuttle

1шт.

25

D87870

DECAL

- reflector, red, rear

2шт.

26

D55216

PAD,2" x 9"

STRIP - anti-skid, short

2-4шт.

27

D80270

ANTI-SKID STRIP,635mm / 25 Inch

STRIP, ANTI-SKID, long

1шт.

28

321-2101

DECAL

- oil filter

1шт.
