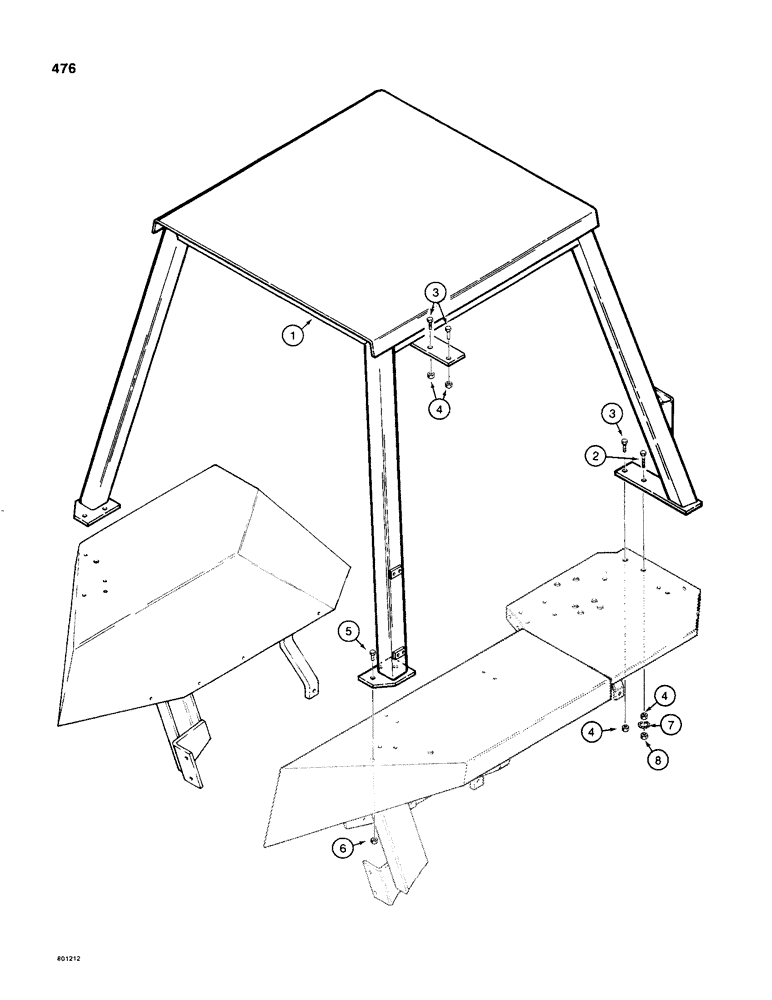

Запчасти Case 480C (476) - ROPS CANOPY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

REF

INSTRUCTION

ROPS CANOPY - machinery item, see Figure 2 for ordering

1шт.

2

113-684

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

Longer bolt for battery ground cable Hex, 5/8"-11 x 2 1/2", G8

1шт.

3

113-2619

BOLT,Hex, 5/8" - 11 x 2", Gr 8

3шт.

4

129-183

NUT,5/8"-11, G8

4шт.

5

113-2418

BOLT

- hex head, 1/2" - 13 NC x 1-3/4", grade 8, plated

6шт.

6

129-184

NUT,1/2"-13, G8

- hex, 1/2" - 13 NC, plated

6шт.

7

193-85

LOCK WASHER,Ext Tooth, 5/8"

WASHER - external tooth lock, 5/8", plated

1шт.

8

425-1410

JAM NUT,Jam, 5/8"-11, G5

JAM NUT - hex, 5/8" - 11 NC, plated

1шт.
