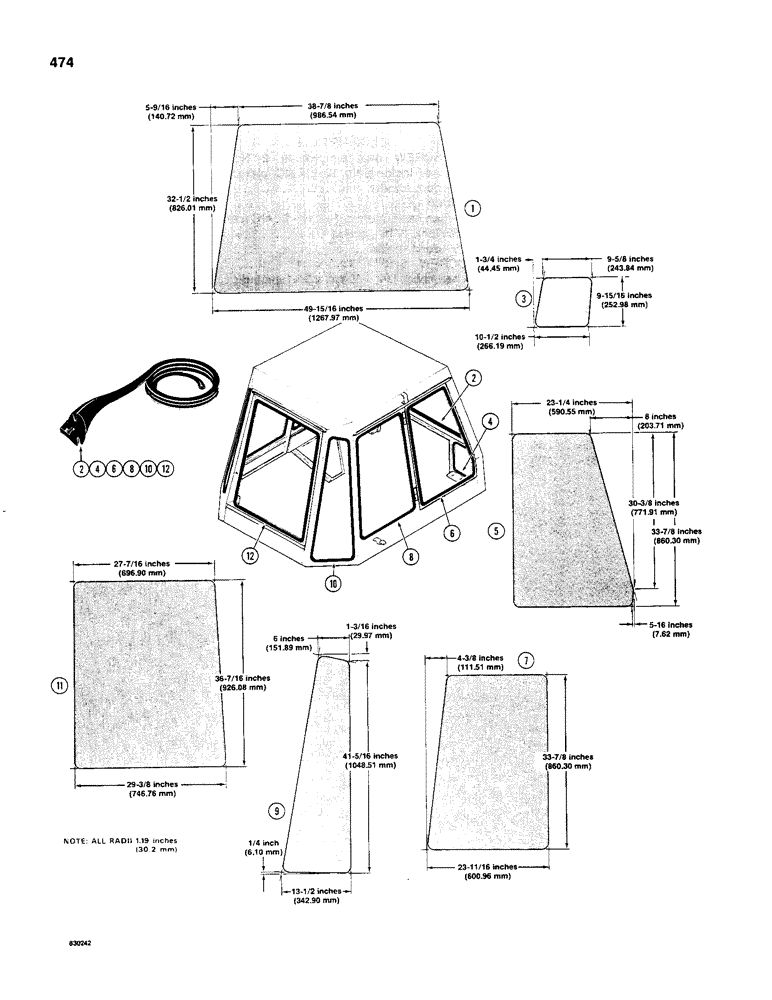

Запчасти Case 480C (474) - CAB GLASS AND MOLDING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

REF

INSTRUCTION

GLASS - windshield

1шт.

2

REF

INSTRUCTION

MOLDING - glass, 155.5" (3950 mm) long, cut from A42677 bulk

1шт.

Order glass from local sources. Order laminated safety glass to dimensions on Figure 470. Glass must be 7/32" thick (as described in SAEJ674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge, as described in SAEJ673a.

1шт.

3

REF

INSTRUCTION

GLASS - lower front

2шт.

4

REF

INSTRUCTION

MOLDING - glass, 41" (1041 mm) long, cut from A42677 bulk

1шт.

Order glass from local sources. Order laminated safety glass to dimensions on Figure 470. Glass must be 7/32" thick (as described in SAEJ674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge, as described in SAEJ673a.

1шт.

5

REF

INSTRUCTION

GLASS - side, front

2шт.

6

REF

INSTRUCTION

MOLDING - glass, 107" (2718 mm) long, cut from A42677 bulk

2шт.

Order glass from local sources. Order laminated safety glass to dimensions on Figure 470. Glass must be 7/32" thick (as described in SAEJ674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge, as described in SAEJ673a.

1шт.

7

REF

INSTRUCTION

GLASS - side, rear

2шт.

8

REF

INSTRUCTION

MOLDING - glass, 111" (2819 mm) long, cut from A42677 bulk

2шт.

Order glass from local sources. Order laminated safety glass to dimensions on Figure 470. Glass must be 7/32" thick (as described in SAEJ674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge, as described in SAEJ673a.

1шт.

9

REF

INSTRUCTION

GLASS - rear quarter

2шт.

10

REF

INSTRUCTION

MOLDING - glass, 104" (2642 mm) long, cut from A42677 bulk

2шт.

Order glass from local sources. Order laminated safety glass to dimensions on Figure 470. Glass must be 7/32" thick (as described in SAEJ674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge, as described in SAEJ673a.

1шт.

11

REF

INSTRUCTION

GLASS - rear window

1шт.

12

REF

INSTRUCTION

MOLDING - glass, 129.4" (3287 mm) long, cut from F43628 bulk

1шт.

Order glass from local sources. Order laminated safety glass to dimensions on Figure 470. Glass must be 7/32" thick (as described in SAEJ674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge, as described in SAEJ673a.

1шт.

A42677

MOLDING

- bulk roll, 50 ft (1524 cm) long

1шт.

Order glass from local sources. Order laminated safety glass to dimensions on Figure 470. Glass must be 7/32" thick (as described in SAEJ674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge, as described in SAEJ673a.

1шт.

F43628

MOLDING

- bulk roll, 100 ft (3048 cm) long

1шт.

Order glass from local sources. Order laminated safety glass to dimensions on Figure 470. Glass must be 7/32" thick (as described in SAEJ674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge, as described in SAEJ673a.

1шт.
