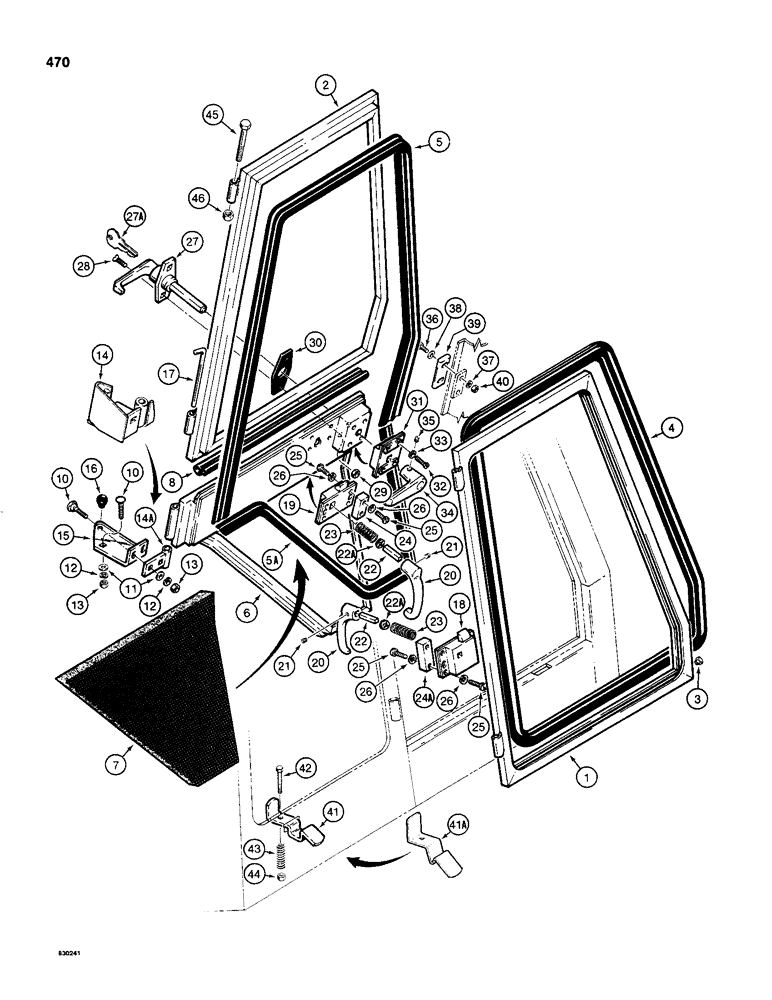

Запчасти Case 480C (470) - CAB DOORS, WINDOWS AND RELATED PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F93871

SPARE PART

FRAME - right-hand front window, used before cab SN 7867825

1шт.

1

F96694

WINDOW

FRAME - right-hand front window, used on cab SN 7867825 and after

1шт.

2

F93872

WINDOW

FRAME - left-hand front window, used before cab SN 7867825

1шт.

2

F96695

WINDOW

FRAME - left-hand front window, used on cab SN 7867825 and after

1шт.

3

353-62

PLUG,Cap, .302" OD

- plastic, window frames sides and top

16шт.

4

REF

INSTRUCTION

SEAL - right-hand window, 113" (2870 mm) long, cut from F43086 bulk

1шт.

For window glass, see Figure 474.

1шт.

5

REF

INSTRUCTION

SEAL - left-hand window, 90" (2286 mm) long, cut from F43086 bulk, items 5 and 5A replace one piece door frame seal used on some models

1шт.

For window glass, see Figure 474.

1шт.

5a

REF

INSTRUCTION

SEAL - lower door, 61-1/2" (1562 mm) long, cut from F44619 bulk

1шт.

For window glass, see Figure 474.

1шт.

6

F93883

DOOR

- cab, does not include latches

1шт.

7

F43981

FOAM

PAD - foam, door panel

1шт.

8

REF

INSTRUCTION

SEAL - top of door, 23.7" (602 mm) long, cut from F43086 bulk

1шт.

For window glass, see Figure 474.

1шт.

9

RESERVED

1шт.

10

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

3шт.

11

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

3шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

14

F93889

BRACKET

HINGE AND STOP - single piece style, if used

1шт.

14a

F44591

HINGE

- door pin, two piece style, hinge and stop

1шт.

15

R37339

BRACKET

- door stop, two piece style, hinge and stop

1шт.

16

L60224

BUMPER

CUSHION - rubber, door stop

1шт.

17

F42100

PIN

- window and door

1шт.

18

F93884

LOCK

- window, right-hnd

1шт.

19

F93892

LOCK

- window, left-hand

1шт.

20

F43966

HANDLE

- window, Includes: Ref. 21

2шт.

21

178-1102

SET SCREW,Hex Soc, #10-32 x 1/4"

- No. 10 - 32 NF x 1/4"

1шт.

22

F93880

SHAFT

- window latch, Includes: Ref. 22A

2шт.

22a

131-638

PUSH-ON NUT

- push on, shaft

1шт.

23

F43968

SPRING

- window latch

2шт.

24

F43964

BLOCK

- tapped, left-hand window latch

2шт.

24a

F43980

BLOCK

- tapped, right-hand window latch

2шт.

25

182-540

SCREW,Sl Pan Hd, 1/4" - 20 x 3/8"

- pan head, slotted, 1/4" - 20 NC x 3/8", plated

16шт.

26

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

16шт.

27

F93842

HANDLE

- door, outside, includes keys, Includes: Ref. 27A

1шт.

27a

A42653

SET OF 2 KEYS

KEY - handle

2шт.

345-44

ADHESIVE

- spray can, for attaching rubber pads to metal surfaces, not shown

1шт.

F43086

SEAL

- bulk roll, 100 ft (3048 cm) long

1шт.

For window glass, see Figure 474.

1шт.

F44619

SEAL

- bulk roll, 100 ft (3048 cm) long

1шт.

For window glass, see Figure 474.

1шт.

28

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

MACHINE SCREW - oval head, No. 10 - 24 NC x 5/8", plated

2шт.

29

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

30

F63860

GASKET

- door handle

1шт.

31

F98123

LATCH

LOCK - door

1шт.

32

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- pan head, slotted, No. 10 - 32 NC x 1/2", plated

4шт.

33

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

34

F63925

HANDLE

- door, inside, Includes: Ref. 35

1шт.

35

82-54

SET SCREW - 5/16" - 18 NC x 1/4"

1шт.

36

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

38

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

39

F63783

CATCH

STRIKER - latch

1шт.

40

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

41

F44038

LATCH

- window, rear swing back, used before cab SN 7867825

2шт.

41a

F44590

SUPPORT

LATCH - window, rear swing back, used on cab SN 7867825 and after

2шт.

42

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

43

D36669

SPRING

- window latch

2шт.

44

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

45

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3шт.

46

131-203

LOCK NUT,3/8"-16, GB, LH

NUT- hex, self-locking, 3/8" - 16 NC, plated

3шт.
