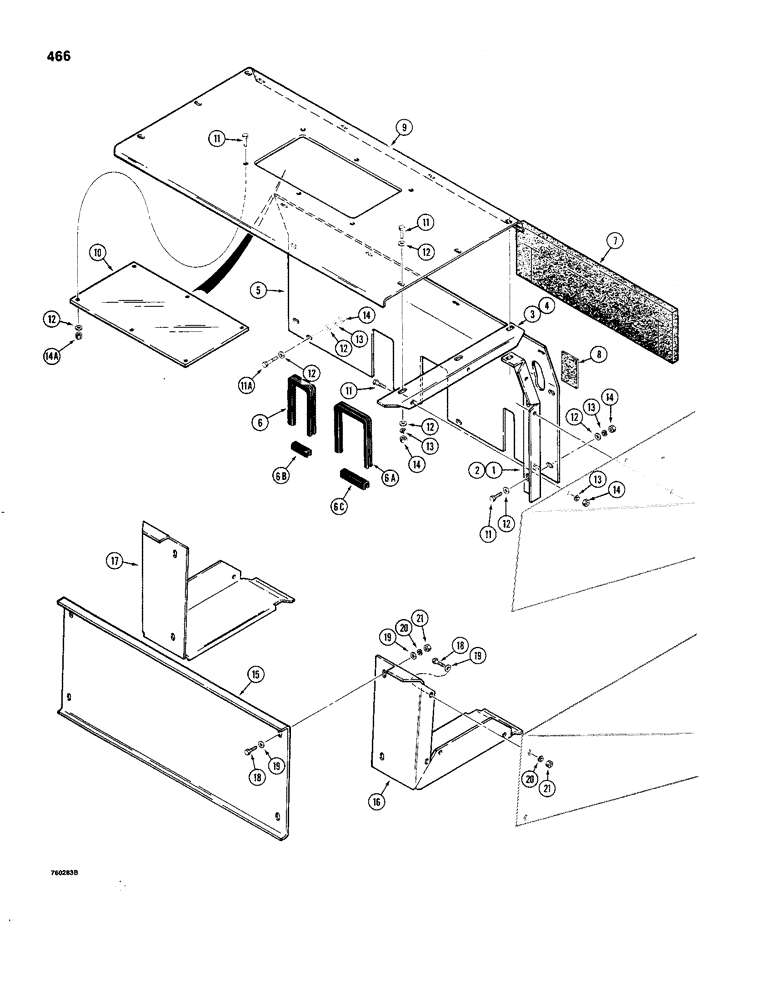

Запчасти Case 480C (466) - REAR CLOSURE PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D71028

ANGLE

BRACKET - right-hand side

1шт.

2

D71029

ANGLE

BRACKET - left-hand side

1шт.

3

D71026

ANGLE

BRACKET - right-hand top

1шт.

4

D71027

ANGLE

BRACKET - left-hand top

1шт.

5

D73223

PANEL

CLOSURE PANEL - vertical

1шт.

Some early production tractors had solid panels without see thru window, Ref. 10, and sealing foam pads or rubber edge trim around openings, when replacing Ref. 5 on these models, also order Refs. 6 - 8 to complete the installation, when replacing Ref. 9 on these models, also order the window panel, Ref. 10, and attaching hardware for Ref. 10.

1шт.

6

REF

INSTRUCTION

TRIM edge, 12.5", 318 mm, long, cut from D52812, see below

1шт.

Part of Trim P/N D52812

1шт.

6a

REF

INSTRUCTION

TRIM edge, 14.5", 368 mm, long, cut from D52812, see below

1шт.

Part of Trim P/N D52812

1шт.

6b

REF

INSTRUCTION

TRIM edge, 3", 76 mm, long, cut from D52812, see below

1шт.

Part of Trim P/N D52812

1шт.

6c

REF

INSTRUCTION

TRIM edge, 5", 127 mm, long, cut from D52812, see below

1шт.

Part of Trim P/N D52812

1шт.

7

D74213

FOAM

PAD - foam

1шт.

Some early production tractors had solid panels without see thru window, Ref. 10, and sealing foam pads or rubber edge trim around openings, when replacing Ref. 5 on these models, also order Refs. 6 - 8 to complete the installation, when replacing Ref. 9 on these models, also order the window panel, Ref. 10, and attaching hardware for Ref. 10.

1шт.

8

D75251

FOAM

PAD - foam

1шт.

Some early production tractors had solid panels without see thru window, Ref. 10, and sealing foam pads or rubber edge trim around openings, when replacing Ref. 5 on these models, also order Refs. 6 - 8 to complete the installation, when replacing Ref. 9 on these models, also order the window panel, Ref. 10, and attaching hardware for Ref. 10.

1шт.

9

D74846

PANEL

CLOSURE PANEL - horizontal

1шт.

P/N D74846 subs to D149916 and the area for viewing is much larger, the Plexi Glass should be purchased locally and cut to fit.

1шт.

Some early production tractors had solid panels without see thru window, Ref. 10, and sealing foam pads or rubber edge trim around openings, when replacing Ref. 5 on these models, also order Refs. 6 - 8 to complete the installation, when replacing Ref. 9 on these models, also order the window panel, Ref. 10, and attaching hardware for Ref. 10.

1шт.

10

D74847

WINDOW

COVER - D74846 panel, see thru window

1шт.

Some early production tractors had solid panels without see thru window, Ref. 10, and sealing foam pads or rubber edge trim around openings, when replacing Ref. 5 on these models, also order Refs. 6 - 8 to complete the installation, when replacing Ref. 9 on these models, also order the window panel, Ref. 10, and attaching hardware for Ref. 10.

1шт.

11

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

28шт.

11a

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

12

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

40шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

25шт.

14

9635082

NUT,5/16" - 18, Gr 5

25шт.

14a

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

6шт.

15

D75959

PANEL

CLOSURE PANEL - backhoe models only

1шт.

16

D70133

BRACKET - right-hand side, backhoe models only

1шт.

17

D70134

BRACKET - left-hand side, backhoe models only

1шт.

18

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, If used

12шт.

19

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, if used

12шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , If used 5/16"

12шт.

21

9635082

NUT,5/16" - 18, Gr 5

If used 5/16"-18, G5

12шт.

345-44

ADHESIVE

- spray can, for attaching rubber pads to metal surfaces, not shown

1шт.

D52812

RUBBER STRIP

TRIM edge, 83", 2108 mm, long, used for Ref. 6, 6A, 6B and 6C

1шт.
