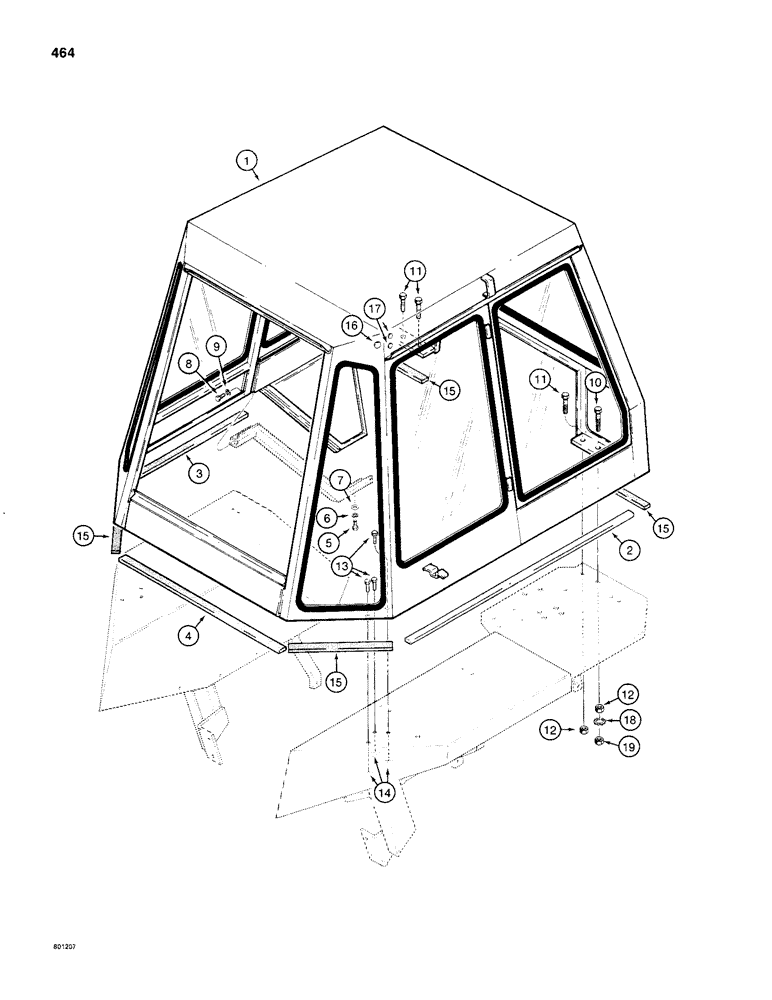

Запчасти Case 480C (464) - CAB AND MOUNTING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

REF

INSTRUCTION

CAP - operator's, parts list Figures 468-474, machinery item, see Figure 2 for ordering

1шт.

2

REF

INSTRUCTION

SEAL - fender, right-hand, 52.6" (1336 mm) long, cut from F44595 bulk

1шт.

3

REF

INSTRUCTION

SEAL - fender, left-hand, 27.7 (704 mm) long, cut from F44595 bulk

1шт.

4

F43996

RUBBER SEAL,25.4mm W x 932.179mm L x 19.05mm Thk

SEAL - rear panel, backhoe

1шт.

5

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

8

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

113-684

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

1шт.

11

113-2619

BOLT,Hex, 5/8" - 11 x 2", Gr 8

3шт.

12

129-183

NUT,5/8"-11, G8

4шт.

13

113-2418

BOLT

- hex head, 1/2" - 13 NC x 1-3/4", grade 8, plated

6шт.

14

129-184

NUT,1/2"-13, G8

- hex, 1/2" - 13 NC, plated

6шт.

15

NSS

NOT SOLD SEPARAT

SEAL - front and rear corners, cut from A42676 bulk roll

1шт.

16

353-403

PLUG,Dome, .437" hole, Nylon

Upper, If used Dome, .437" hole, Nylon

4шт.

17

353-405

PLUG,Dome, .562" hole, Nylon

- nylon, lower, if used

2шт.

18

193-85

LOCK WASHER,Ext Tooth, 5/8"

WASHER - external tooth lock, 5/8", plated

1шт.

19

425-1410

JAM NUT,Jam, 5/8"-11, G5

JAM NUT - hex, 5/8" - 11 NC, plated

1шт.

A42676

SEAL

- strip, bulk roll, 25 ft (762 cm)

1шт.

F44595

SEALING STRIP

- strip, bulk roll, 50 ft (1524 cm)

1шт.
