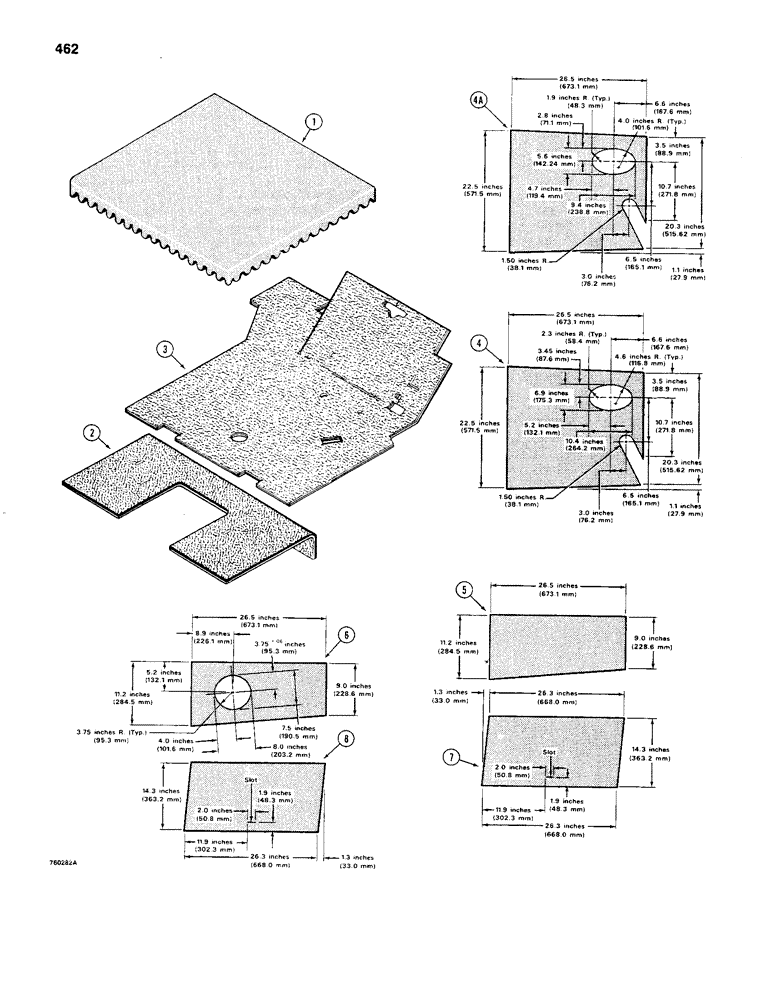

Запчасти Case 480C (462) - NOISE REDUCTION PADS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D69083

ROOF

PAD - ceiling, for ROPS canopy roof

1шт.

2

D70124

FLOORMAT - rear, used on models with backhoe only

1шт.

3

D69730

FLOOR MAT

FLOORMAT - operators compartment

1шт.

4

REF

INSTRUCTION

PAD - hood, top, for hood with muffler opening 6.9" (175 mm) x 10.4" (264 mm)

1шт.

4a

REF

INSTRUCTION

PAD - hood, top, for hood with muffler opening 5.6" (142 mm) x 9.4" (239 mm)

1шт.

5

REF

INSTRUCTION

PAD - hood, right-hand side

1шт.

6

REF

INSTRUCTION

PAD - hood, left-hand side

1шт.

7

REF

INSTRUCTION

PAD - engine side panel, right-hand

1шт.

8

REF

INSTRUCTION

PAD - engine side panel, left-hand

1шт.

345-44

ADHESIVE

- spray can, for attaching rubber pads to metal surfaces, not shown

1шт.

D61247

PADDING

PAD - service for Refs. 4 - 8 above, cut to dimensions shown, 54" (1372 mm) x 36" (914 mm) x 2" (51 mm) sheet

1шт.
