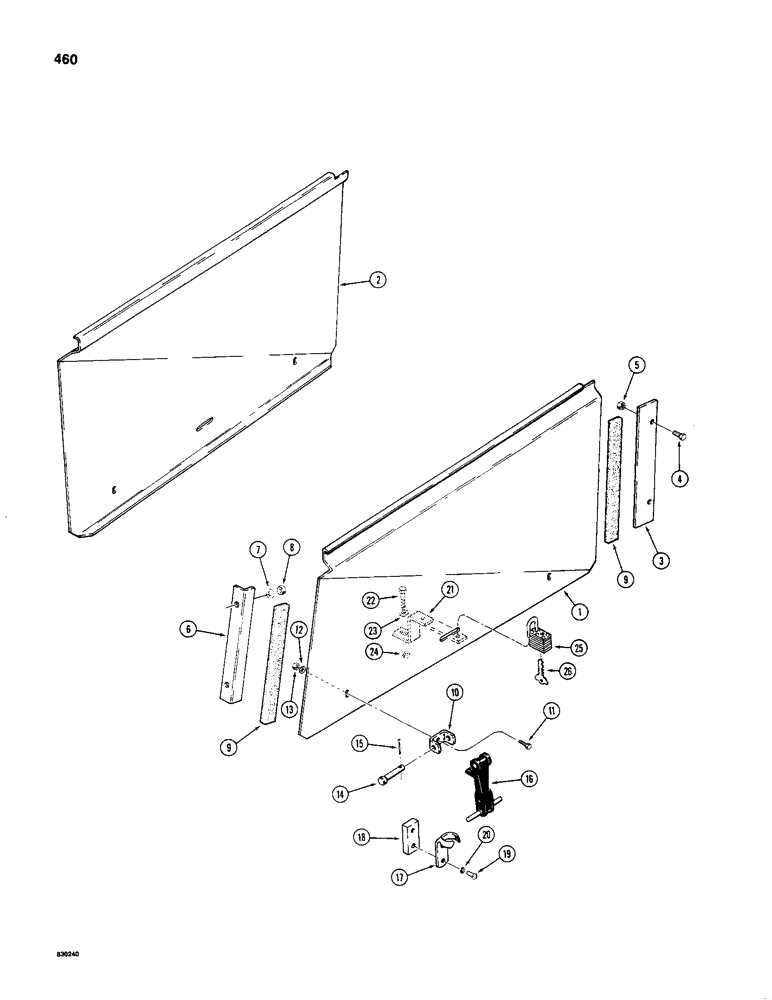

Запчасти Case 480C (460) - ENGINE SIDE PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D69890

PANEL

- engine side, right-hand

1шт.

2

D69891

PANEL

- engine side, left-hand

1шт.

3

D69160

STRIP

STRAP - side panel stop, front

2шт.

4

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

5

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

6

D68862

ANGLE

BRACKET - side panel stop, rear

2шт.

7

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

8

131-665

LOCK NUT,5/16"-18, GB

NUT- hex, self-locking, 5/16" - 18 NC, plated

4шт.

9

D95585

BAND

STRIP - rubber

4шт.

10

L47159

BRACKET

- anchor, hook

4шт.

11

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

12

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

13

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

14

141-66

CLEVIS PIN,5/16" x 1 13/16"

PIN - hook mounting

4шт.

15

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

16

L47157

HOOK

- side panel holddown

4шт.

17

L47158

BRACKET

- hook, on some models this bracket is welded to the tractor frame

4шт.

18

L48956

BLOCK

- side panel latch, if used

4шт.

19

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - pan head, slotted, No. 10 - 24 NC x 1/2", if used

8шт.

20

92-3

LOCK WASHER,#10

WASHER, LOCK, , If used #10

8шт.

21

D73867

BRACKET

- for padlock, if used

2шт.

22

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

23

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

24

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

25

D93753

PADLOCK

- side panels, includes keys, if used, Includes: Ref. 26

2шт.

26

R29555

KEY

- for Master padlock only

2шт.

26

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.
