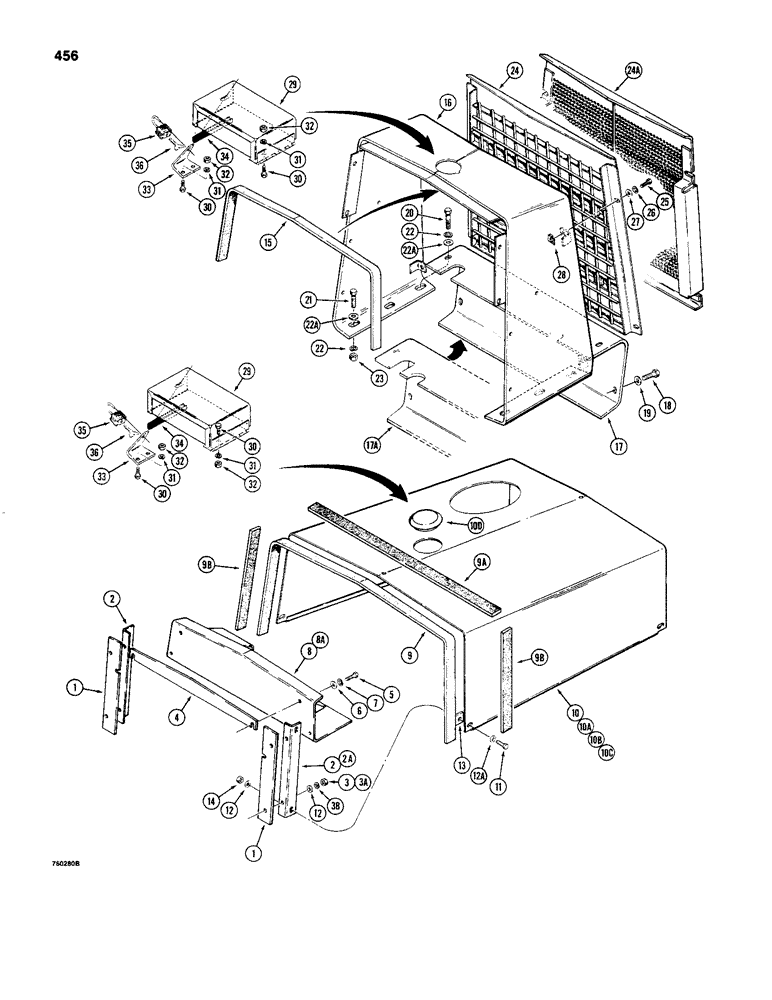

Запчасти Case 480C (456) - HOOD AND RADIATOR SHROUD (90) - PLATFORM, CAB, BODYWORK AND DECALS

Артикул

Название

Примечание

Количество

1

D70489

SPACER - support, hood mounting, if used

2шт.

2

D68568

SUPPORT - hood mounting, side, used with Refs. 1 and 4

2шт.

2a

D75573

ANGLE

SUPPORT - hood mounting, side, not used with Refs. 1 and 4

2шт.

3

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 16 NC, plated, if used

4шт.

3a

9635082

NUT,5/16" - 18, Gr 5

If used 5/16"-18, G5

6шт.

3b

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , If used 5/16"

6шт.

4

D70485

SPACER - hood mounting, if used

1шт.

5

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

6

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

D75519

SHOE

BRACKET - air cleaner mounting, used with Refs. 1 and 4

1шт.

8a

D75417

LARGE PLATE

BRACKET - air cleaner mounting, not used with Refs. 1 and 4

1шт.

9

D74959

STRIP

- rubber, rear, one piece, order one D75584 and tow D75585 strips, see Refs. 9A and 9B

1шт.

9a

D75584

STRIP

- rubber, rear, top, if used

1шт.

9b

D75585

STRIP

- rubber, sides, if used

2шт.

10

NSS

NOT SOLD SEPARAT

HOOD - engine, models with vertical air cleaner intake, muffler opening is 5.6" (142 mm) x 9.4" (239 mm), no longer available, order D74856 hood (Ref. 10A) and 353-255 plug (Ref. 10D)

1шт.

10a

D74856

HOOD

- engine, models with vertical air cleaner intake, muffler opening is 6.9" (175 mm) x 10.4" (264 mm)

1шт.

10b

NSS

NOT SOLD SEPARAT

HOOD - engine, models with horizontal air cleaner intake tube, muffler opening is 5.6 (142 mm) x 9.4" (239 mm), no longer available, order D74856 hood (Ref. 10A) and 353-255 plug (Ref. 10D)

1шт.

10c

NSS

NOT SOLD SEPARAT

HOOD - engine, models with horizontal air cleaner intake tube, muffler opening is 6.9 (175 mm) x 10.4" (264 mm), no longer available, order D74856 hood (item 10A) and 353-255 plug (Ref. 10D)

1шт.

10d

353-255

PLUG,3 1/2"

- button, 3-1/2" (89 mm)

1шт.

11

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

12

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4-8шт.

12

195-103

WASHER,5/16"

- flat, , plated 5/16"

4шт.

13

D61266

BUSHING

SPACER - hood

4шт.

14

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

15

D95583

STRIP - rubber, front

1шт.

16

D68106

GUARD

SHROUD - radiator

1шт.

17

D73429

GUARD

- pump, used before tractor SN 8967327

1шт.

17a

D76755

GUARD - pump, used on tractor SN 8967327 and after

1шт.

18

113-700

BOLT,Hex, 3/4" - 10 x 1", Gr 5

2шт.

19

195-45

WASHER,3/4"

1шт.

20

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

21

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

22

92-8

LOCK WASHER,1/2"

4шт.

22a

95-8

WASHER,1/2"

flat 1/2"

4шт.

23

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

24

D69240

GRILLE

- radiator, used before tractor SN 8967327

1шт.

24a

D77208

GRILLE

- radiator, used on tractor SN 8967327 and after

1шт.

25

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

If used Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

25

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

If used Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

26

92-6

LOCK WASHER,3/8"

4шт.

27

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

28

131-634

SPRING NUT,J, Ret, 3/8"-16

- 3/8" - 16 NC, J-type

4шт.

29

D70139

COVER

- radiator and fuel cap, models with lockup parts

2шт.

30

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

31

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

32

9635082

NUT,5/16" - 18, Gr 5

8шт.

33

D70140

BRACKET

- for padlock, if used

2шт.

34

D95461

LINING

TRIM - edge, 3" (76 mm) long

2шт.

35

D93753

PADLOCK

- radiator and fuel cap, includes keys, if used, Includes: Ref. 36

2шт.

36

R29555

KEY

- for Master padlock only

2шт.

36

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

Выбрано товаров: 52
