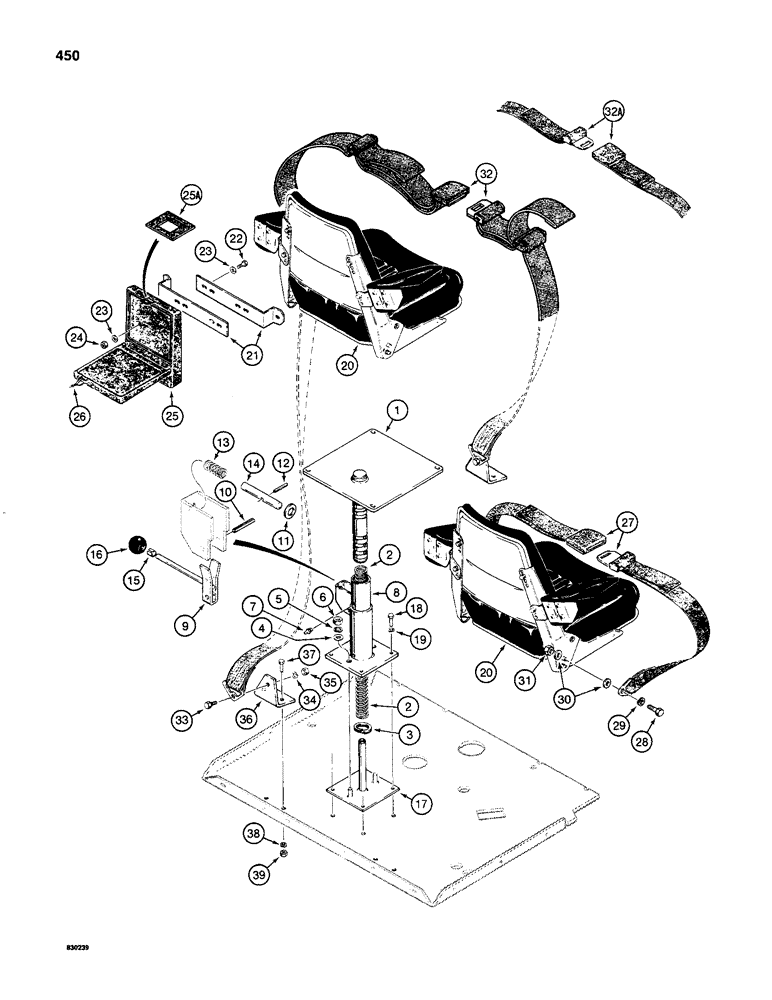

Запчасти Case 480C (450) - SEAT MOUNTING PARTS AND SEAT BELTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D87657

POST

- seat mounting, when replacing post before tractor SN 8982005, also order D84284 spring (Ref. 2) and D84285 pin (Ref. 14)

1шт.

2

D84284

SPRING

- seat

1шт.

3

D49776

SNAP RING,#187, 2.008", Int, Spiral

RETAINING RING - spring

1шт.

4

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

8

D64776

POST

- seat base

1шт.

9

D38258

LOCK

LEVER - seat height adjustment

1шт.

10

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

11

D49941

SPRING WASHER

- flat

1шт.

12

138-324

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.

13

D49774

SPRING

- lever

1шт.

14

D84285

PIN,12.7mm OD x 84.07mm L

- post latch

1шт.

15

38673

RING - knob retaining

1шт.

16

D38643

KNOB

- height adjustment lever

1шт.

17

D62012

POST

BASE - seat post

1шт.

18

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

REF

INSTRUCTION

SEAT ASSEMBLY - operators, see Figures 452 or 454

1шт.

21

D79933

BRACKET

- operators manual box, if used, for models with fender mounted box, see Figure 442

2шт.

22

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex head, 1/4" - 20 NC x 7/8", plated

2шт.

23

195-18

WASHER,1/4"

- flat, 1/4"

4шт.

24

193-1006

NUT,Keps, w/LW, 1/4"-20

- hex, special lock, 1/4" - 20 NC, plated

2шт.

25

R38893

CASE

MANUAL BOX - operators, if used, see Figure 442, Includes: Ref. 25A

1шт.

25a

N7120

LATCH

- manual box

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

27

D87964

SAFETY BELT

SEAT BELT - 2" (51 mm) wide, fastens to seat, if used

1шт.

28

114-302

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

- hex head, 7/16" - 20 NF x 1-1/4", plated

2шт.

29

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

30

195-529

WASHER,7/16", SAE

- flat, 7/16", plated

4шт.

31

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, plated

2шт.

32

D83760

SAFETY BELT

SEAT BELT - 3" (76 mm) wide, fastens to brackets on floor plate, if used

1шт.

32a

D75428

SAFETY BELT

SAFETY BELT, 2" (51 mm) wide, Fastens to brackets on floor plate, If used

1шт.

33

F42236

STEP BOLT

BOLT - shoulder, 7/16" - 20 NF x 1-1/4", plated

2шт.

34

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

35

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 24 NF, plated

2шт.

36

D75008

BRACKET

- mounting, seat belt

2шт.

37

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

38

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

39

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.
