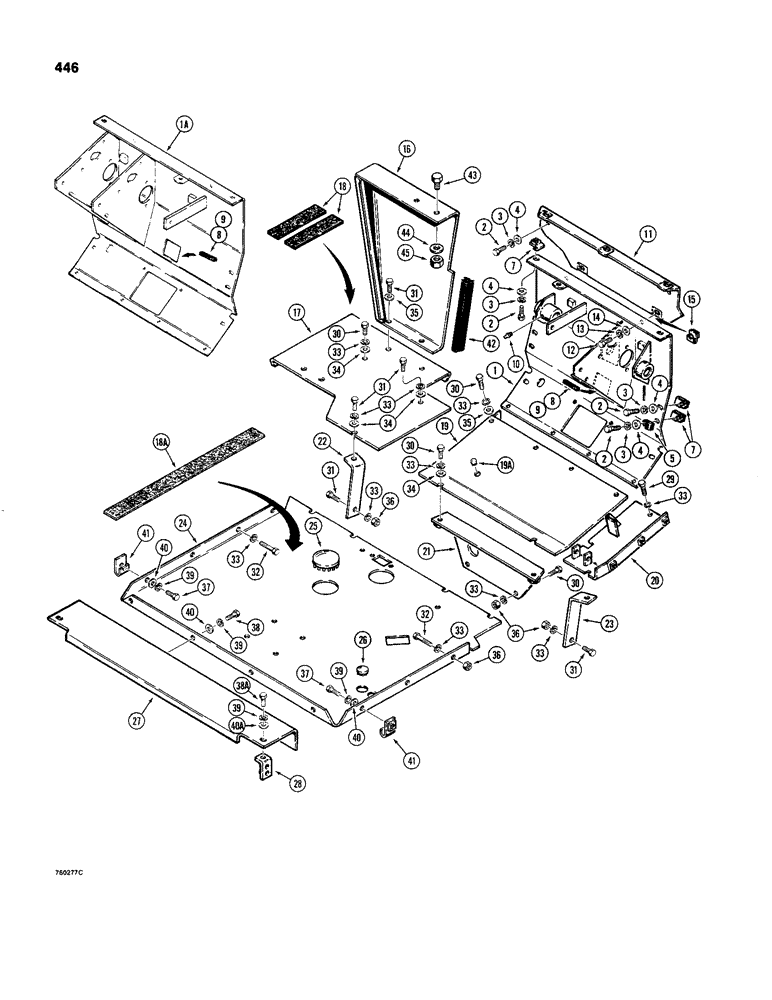

Запчасти Case 480C (446) - FLOOR PLATES AND FIREWALL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D67017

FIREWALL - pedal mounting, mechanical shuttle models

1шт.

1a

D81393

WALL

FIREWALL - pedal mounting, power shuttle models

1шт.

2

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

11шт.

3

92-6

LOCK WASHER,3/8"

11шт.

4

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

11шт.

5

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- brake lines

2шт.

6

RESERVED

1шт.

7

131-634

SPRING NUT,J, Ret, 3/8"-16

- J-type, 3/8" - 16 NC

8шт.

8

REF

INSTRUCTION

TRIM edge, firewall opening, horizontal, 2-1/4", 57 mm, long, cut from D52812, see below

2шт.

Part of Trim P/N D52812

1шт.

9

REF

INSTRUCTION

TRIM edge, firewall opening, vertical, 1-13/16", 46 mm, long, cut from D52812, see below

2шт.

Part of Trim P/N D52812

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

11

D67256

PLATE - upper

1шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

14

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

15

131-636

SPRING NUT,J, Ret, 5/16"-18

- J-type, 5/16", plated

2шт.

16

D68362

PANEL

- left-hand, front

1шт.

17

D70774

FLOOR

PLATE - floor, entrance

1шт.

18

D55216

PAD,2" x 9"

STRIP - non-skid, short

2-4шт.

18a

D80270

ANTI-SKID STRIP,635mm / 25 Inch

STRIP, ANTI-SKID, long, if used

1шт.

19

D86846

PLATE

- floor, front, all mechanical shuttle models and power shuttle models before SN 8981142

1шт.

19

D84332

FLOOR

PLATE - floor, front, power shuttle models SN 8981142 and after

1шт.

19a

353-407

PLUG,Dome, .687" hole, Nylon

- button, 11/16", if used

1шт.

20

D66769

PLATE

- floor, right-hand, front

1шт.

21

D68457

BRACKET

- crossmember

1шт.

22

D70276

BRACKET

- left-hand

1шт.

23

D70277

BRACKET

- right-hand

1шт.

24

D68659

FLOOR

PLATE - floor, rear, mechanical shuttle models before tractor SN 8956870, order D75145 and 353-462 bushing, see Figure 207, Ref. 40

1шт.

24

D75145

LARGE PLATE

PLATE - floor, rear, mechanical shuttle models on tractor SN 8956870 and after

1шт.

See Figure 204 for differential lock lever bushing.

1шт.

24

D75146

PLATE

- floor, rear, power shuttle models

1шт.

See Figure 204 for differential lock lever bushing.

1шт.

25

205-72

HOLE PLUG BUTTON,3"

PLUG - button, diameter 3"

1шт.

26

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - button, 1-1/2" diameter

1-3шт.

27

D70066

PANEL

PLATE - spacer, rear plate to backhoe frame, used with backhoe models

1шт.

28

D77105

BRACKET

- spacer plate

2шт.

29

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

If used Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

30

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

7-9шт.

D52812

RUBBER STRIP

TRIM - edge, 83" (2108 mm) long, Includes: Refs. 8 and 9

1шт.

31

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

11шт.

32

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1-2шт.

33

92-6

LOCK WASHER,3/8"

20шт.

34

95-6

WASHER,3/8"

- flat, 3/8"

5шт.

35

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

7шт.

36

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6-9шт.

37

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5-9шт.

38

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4-8шт.

38a

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

39

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

13шт.

40

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

6шт.

40a

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.

41

131-636

SPRING NUT,J, Ret, 5/16"-18

- J-type, 5/16" - 18 NC

5-6шт.

42

D95812

CHANNEL

TRIM - edge, panel to tractor, 10-3/8" (263 mm) long

1шт.

43

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

If used Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.

44

195-541

WASHER,5/8", SAE

- flat, 5/8", if used

2шт.

45

129-183

NUT,5/8"-11, G8

If used 5/8"-11, G8

2шт.
