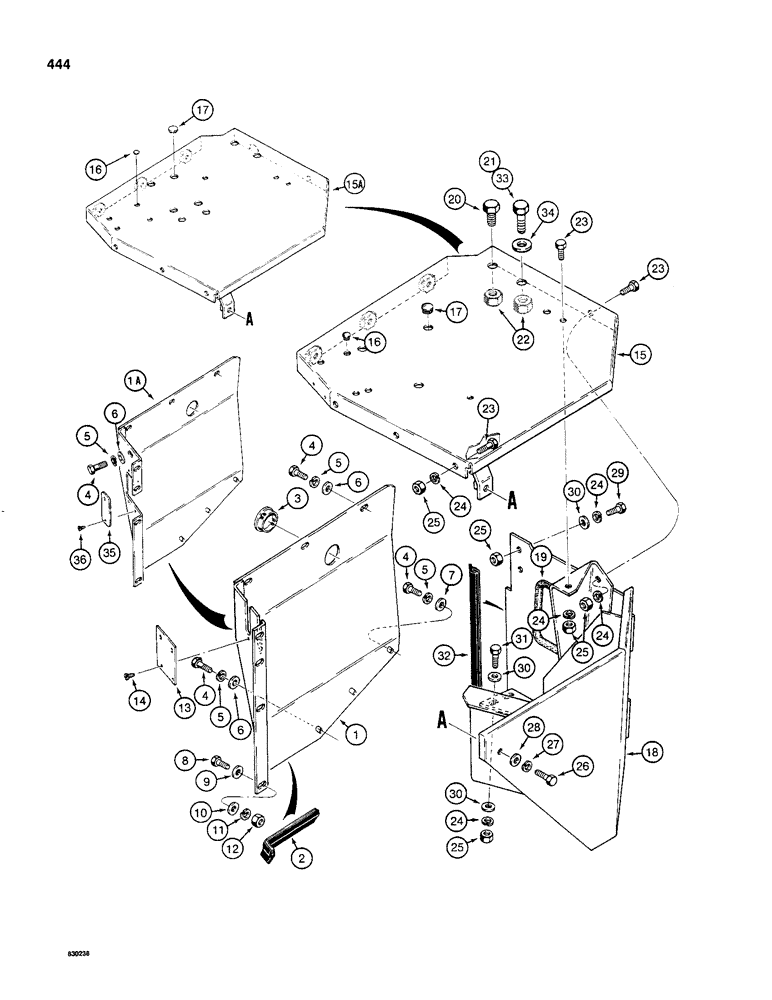

Запчасти Case 480C (444) - BATTERY COMPARTMENT AND VALVE MOUNTING PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D75449

PLATE

SHIELD - metal, no longer available, order D78078

1шт.

1

D78078

PANEL

SHIELD - plastic, used on models with dual control levers

1шт.

1a

D77766

PANEL

SHIELD - plastic, used on models with single control lever

1шт.

2

D72862

HOSE

TRIM - edge, shield

1шт.

3

353-417

PLUG,Dome, 2.000" hole, Nylon

- button, 2" (51 mm)

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6-7шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6-7шт.

6

195-524

WASHER,5/16"

- flat, x 1-1/8" (29 mm) OD, plated 5/16"

5-6шт.

7

195-521

WASHER,5/16", SAE

- flat, 5/16" x 11/16" (17 mm) OD, plated

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

9

95-6

WASHER,3/8"

- flat, x 1" (25 mm) OD 3/8"

4шт.

10

195-525

WASHER,3/8", SAE

- flat, 3/8" x 13/16" (21 mm) OD, plated

4шт.

11

92-6

LOCK WASHER,3/8"

4шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

13

D75045

PLATE

- cover, valve lever slots, used on models without loader

1шт.

14

87-329

SCREW - self-tapping, pan head, No. 10 - 16 NC

4шт.

15

D93916

COVER

PLATE - valve mounting, used on models with dual control levers, includes decals, for decals see Figure 480-486

1шт.

15a

D93760

PLATE - valve mounting, used on models with single control lever, includes decals for decals see Figure 480-486

1шт.

16

L18398

HOLE PLUG BUTTON,13/32"

PLUG - button, (10 mm), used on models without loader 13/32"

4шт.

17

353-409

PLUG,Dome, .812" hole, Nylon

- button, 13/16" (21 mm), used on models without loader

3-6шт.

18

D68445

BOX

COVER - hinged, battery and control valve

1шт.

19

REF

INSTRUCTION

TRIM - edge, hose opening, 18-5/8" (473 mm) long, cut from D52812, see below

1шт.

20

113-2619

BOLT,Hex, 5/8" - 11 x 2", Gr 8

Used on models with cab or canopy Hex, 5/8"-11 x 2", G8

1шт.

21

113-684

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

Used on models with cab or canopy Hex, 5/8"-11 x 2 1/2", G8

1шт.

22

129-183

NUT,5/8"-11, G8

2шт.

23

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

7шт.

24

92-6

LOCK WASHER,3/8"

9шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

9шт.

26

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

28

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

29

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

30

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

31

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

32

D95811

CHANNEL

TRIM - edge, battery and control valve cover

1шт.

33

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Used on models without cab or canopy Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.

34

195-541

WASHER,5/8", SAE

- flat, 5/8", used on models without cab or canopy

2шт.

35

D72241

PLATE

- closure, used on models with single control lever

1шт.

36

187-1325

SELF-TAP SCREW,Sltd Pan Hd, #10 x 1/2"

SCREW - self-tapping, pan head, No. 10 - 32 NC x 1/2", plated

2шт.

D52812

RUBBER STRIP

TRIM - edge, 83" (2108 mm) long, bulk

1шт.
