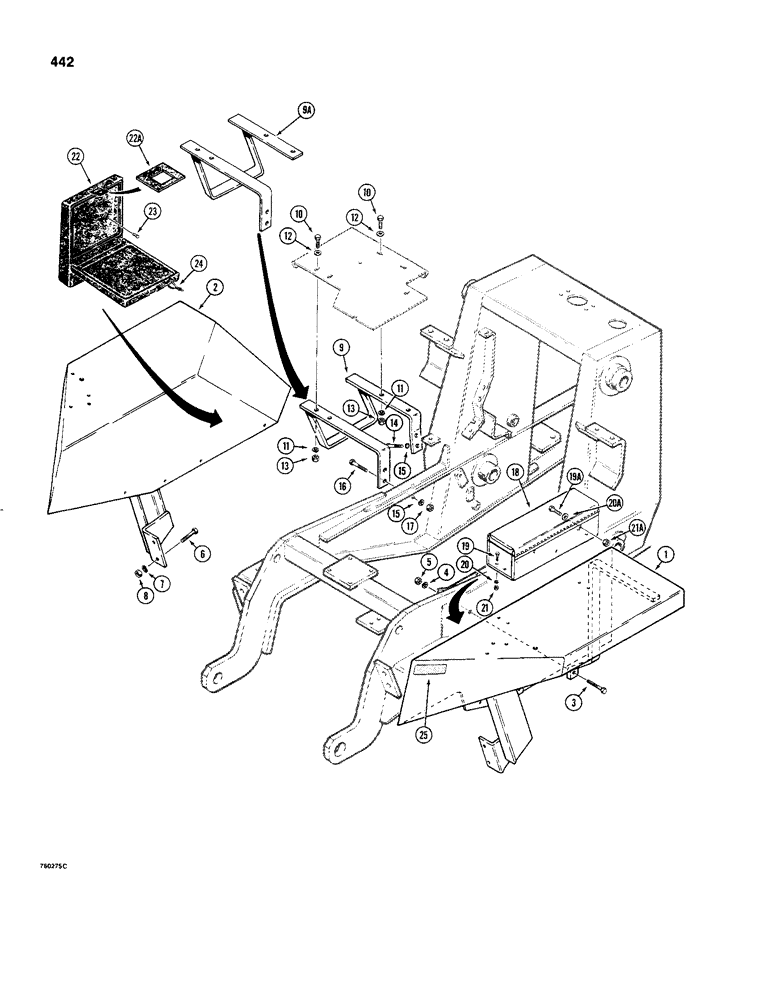

Запчасти Case 480C (442) - FENDERS, STEP AND TOOL BOX (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D75595

FENDER ASSY.

FENDER - rear, right-hand

1шт.

2

D75596

FENDER ASSY.

FENDER - rear, left-hand

1шт.

3

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

1-2шт.

4

92-8

LOCK WASHER,1/2"

1-2шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

1-2шт.

6

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex head, 5/8" - 11 NC x 2-1/4", grade 8

4шт.

7

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

129-183

NUT,5/8"-11, G8

4шт.

9

D75135

STEP

- operators compartment, if used

1шт.

9a

D76746

STEP

- operators compartment, if used

1шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

11

92-6

LOCK WASHER,3/8"

4шт.

12

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

14

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

15

92-8

LOCK WASHER,1/2"

2-4шт.

16

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

18

D55624

TOOL

BOX - tractor, without internal clip for operators manual

1шт.

18

D120453

TOOL

BOX - tractor, with internal clip for operators manual

1шт.

19

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

If used Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

19a

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

If used Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

20

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , If used 1/4"

4шт.

20a

192-21

LOCK WASHER,3/8"

WASHER - flat, plated, if used 3/8"

3шт.

21

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, If used

4шт.

21a

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , If used 3/8"-16, G5

3шт.

22

R38893

CASE

MANUAL BOX - operator's, if used, for models with box mounted on seat, see Figure 450, Includes: Ref. 22A

1шт.

22a

N7120

LATCH

- manual box

1шт.

23

151-522

RIVET,Pop, 3/16" x .575"

POP RIVET - 3/16"

3шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

25

REF

INSTRUCTION

REFLECTOR - red, rear, see Figures 480 - 486 for decals if used

2шт.
