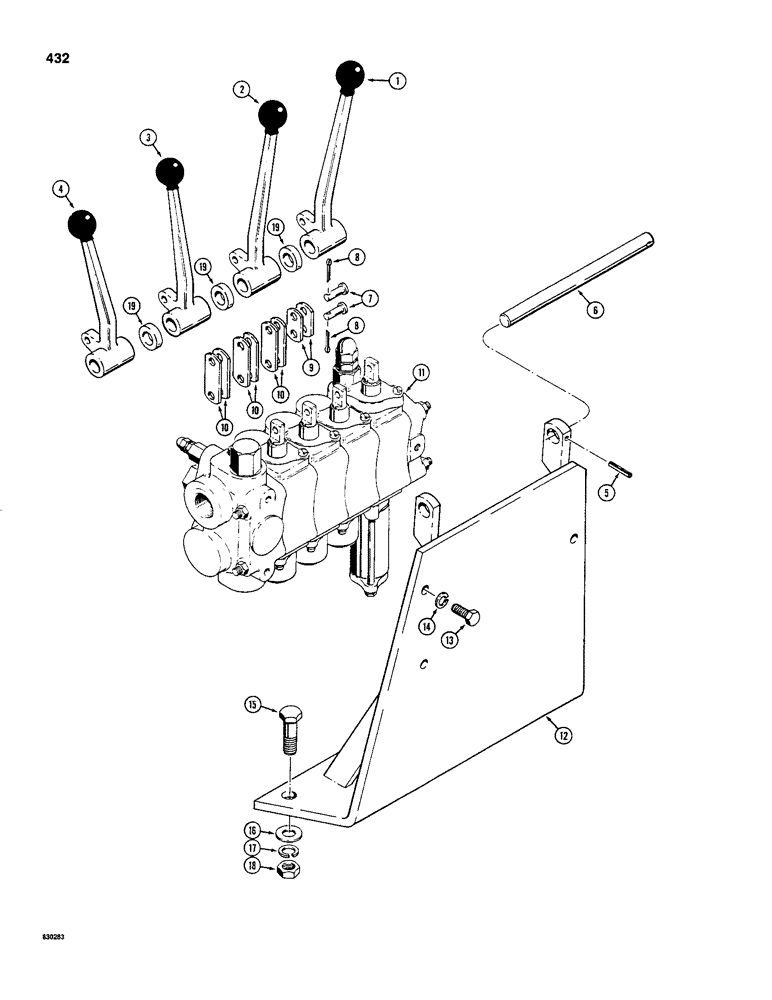

Запчасти Case 480C (432) - THREE-POINT HITCH CONTROLS (84) - BOOMS, DIPPERS & BUCKETS

1

D33255

LEVER

- three-point hitch control, lift

1шт.

2

D51689

LEVER - three-point hitch control, pitch

1шт.

3

D51690

LEVER

- three-point hitch control, tilt

1шт.

4

D33256

LEVER - three-point hitch control, implement

1шт.

5

138-319

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

6

D52945

SHAFT

- control lever pivot

1шт.

7

141-53

CLEVIS PIN,5/16" x .940"

plated - link mounting 5/16" x .940"

8шт.

8

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

8шт.

9

D52980

LINK - lever to spool, lift spool only

2шт.

10

D38089

LINK

- lever to spool, all except lift spool

6шт.

11

D52970

CONTROL VALVE

- three-point hitch, parts list Figure 322

1шт.

12

D52950

PLATE - valve mounting

1шт.

13

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

14

92-6

LOCK WASHER,3/8"

3шт.

15

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

16

95-8

WASHER,1/2"

flat 1/2"

3шт.

17

92-8

LOCK WASHER,1/2"

3шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

19

D52944

SPACER - .22" (5.59 mm) thick

3шт.
