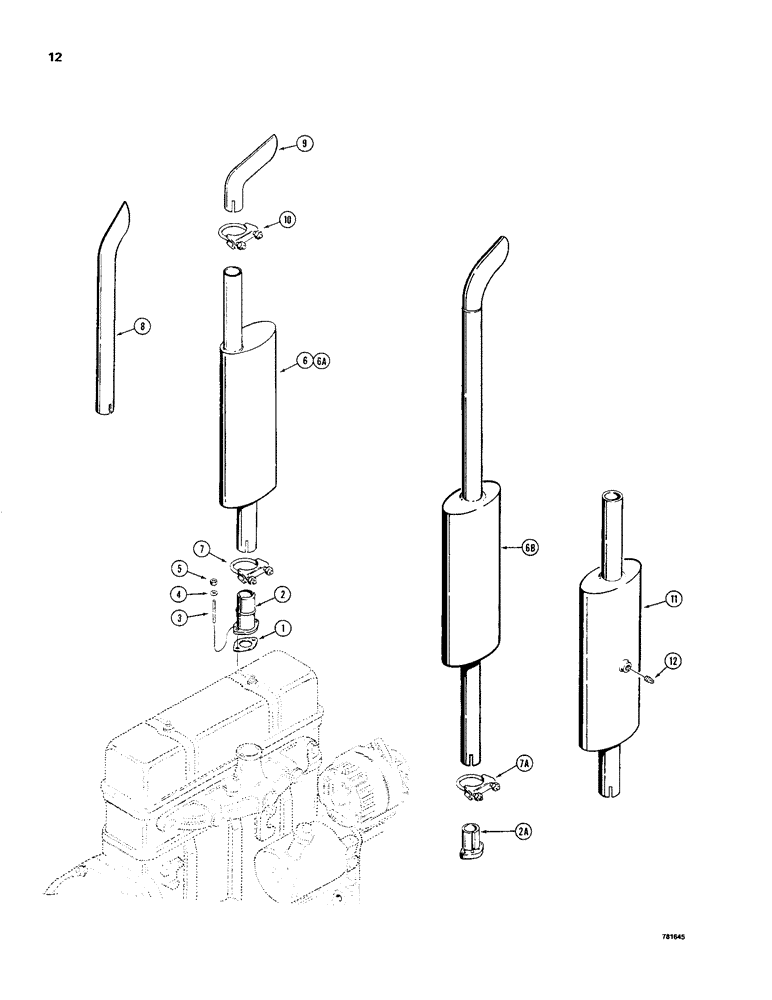

Запчасти Case 480C (012) - MUFFLER AND EXHAUST SYSTEM (10) - ENGINE

1

G46853

MANIFOLD GASKET

- manifold to exhaust pipe

1шт.

2

D73198

OUTLET

EXHAUST PIPE - 2-1/2" (64 mm) diameter, if used

1шт.

2a

D69366

HOUSING

EXHAUST PIPE - 1-7/8" (48 mm) diameter, if used

1шт.

3

A59077

STUD

- 3/8" - 16 NC x 1-15/16"

2шт.

4

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

5

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

6

A39561

MUFFLER

- exhaust, vertical, inlet diameter 2-1/2" (64 mm), if used

1шт.

6a

D55532

MUFFLER

- increased noise control, inlet diameter 2-1/2" (64 mm), if used

1шт.

6b

D69365

MUFFLER

- increased noise control, inlet diameter 1-7/8" (48 mm), if used

1шт.

7

A13240

CLAMP,2-5/8" ID

- muffler, used with Refs. 6, 6A and 11

1шт.

7a

R11500

CLAMP

- muffler, used with Ref. 6B

1шт.

8

D70514

PIPE, EXHAUST SYSTEM

EXTENSION - muffler exhaust, if used

1шт.

9

D53101

PIPE

DEFLECTOR - muffler exhaust, if used

1шт.

10

G45410

CLAMP

- muffler extension or deflector

1шт.

11

D120870

MUFFLER

- spark arresting, inlet diameter 2-1/2" (64 mm), Includes: Ref. 12

1шт.

12

217-76

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF, Brass

PLUG - brass, square head, 1/4" NPT, spark arresting muffler

1шт.
