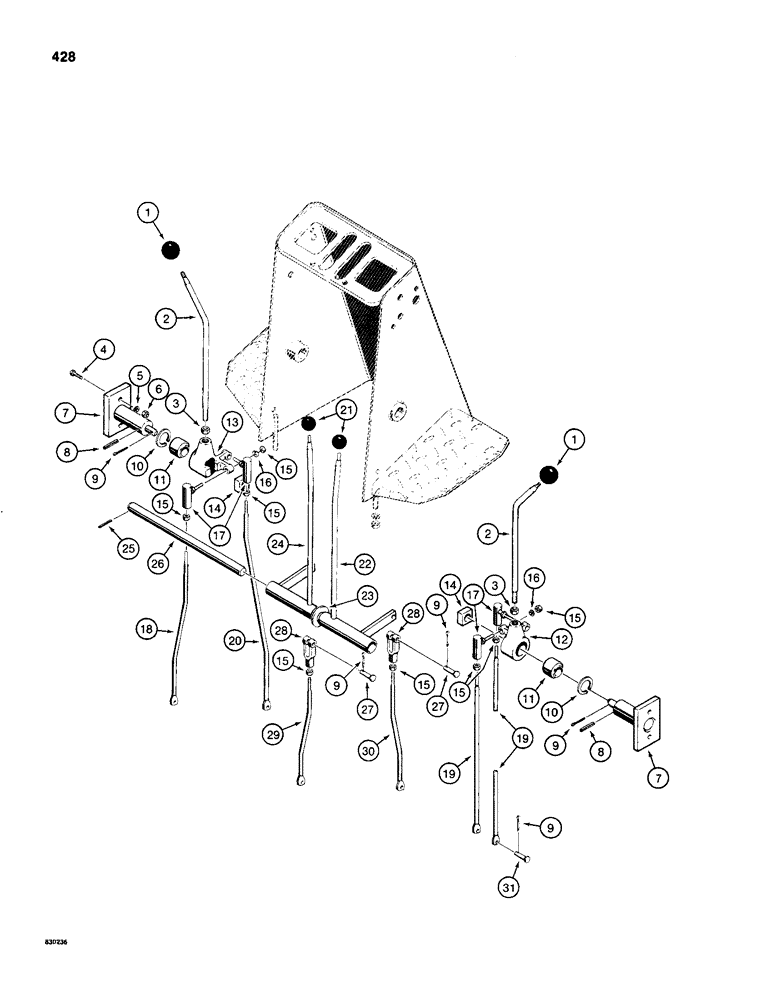

Запчасти Case 480C (428) - BACKHOE CONTROLS WITH HAND SWING, CONTROL LEVERS AND LINKAGE (84) - BOOMS, DIPPERS & BUCKETS

1

CAS31375

KNOB

- outer control levers, large

2шт.

2

D38304

HANDLE

CONTROL LEVER - outer, right-hand - boom and swing, left-hand - dipper and bucket

2шт.

3

129-127

NUT,5/8"-18, G5

2шт.

4

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

7

D38299

SUPPORT

STUD - lever pivot

2шт.

8

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

4шт.

9

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

10шт.

10

D1038223

SPRING

Ring, Snap, 1.438", Int, #143, brg

2шт.

11

D38297

SPHERICAL BEARING,22.23mm ID x 36.51mm OD x 19.43mm W

BEARING - pivotal ball type

2шт.

12

D38303

ADAPTER

LEVER - pivotal, right-hand

1шт.

13

D38302

ADAPTER

LEVER - pivotal, left-hand

1шт.

14

D38305

BLOCK

- wear

2шт.

15

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - hex, 3/8" - 24 NF, plated

10шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

D38296

JOINT

BALL JOINT - 3/8"

4шт.

18

D59526

ROD

- connecting, bucket

1шт.

19

D63549

ROD

- straight, connecting, boom and swing

2шт.

20

D59527

ROD - bent, connecting, dipper control

1шт.

21

D59912

KNOB

- inner control levers, small

2шт.

22

D54340

HANDLE

CONTROL LEVER - right-hand stabilizer

1шт.

23

195-2097

WASHER,15/16" x 1 3/4" x .083"

- flat, 7/8", spacer

1шт.

24

D30817

SHAFT

CONTROL LEVER - right-hand stabilizer

1шт.

25

138-319

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

26

D30817

SHAFT

- lever pivot

1шт.

27

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

28

213-41

ADJUSTABLE CLEVIS,3/8"-24

plated 3/8"-24

2шт.

29

D59525

ROD - connecting, stabilizer control, left-hand

1шт.

30

D59524

ROD - connecting, stabilizer control, right-hand

1шт.

31

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

6шт.
