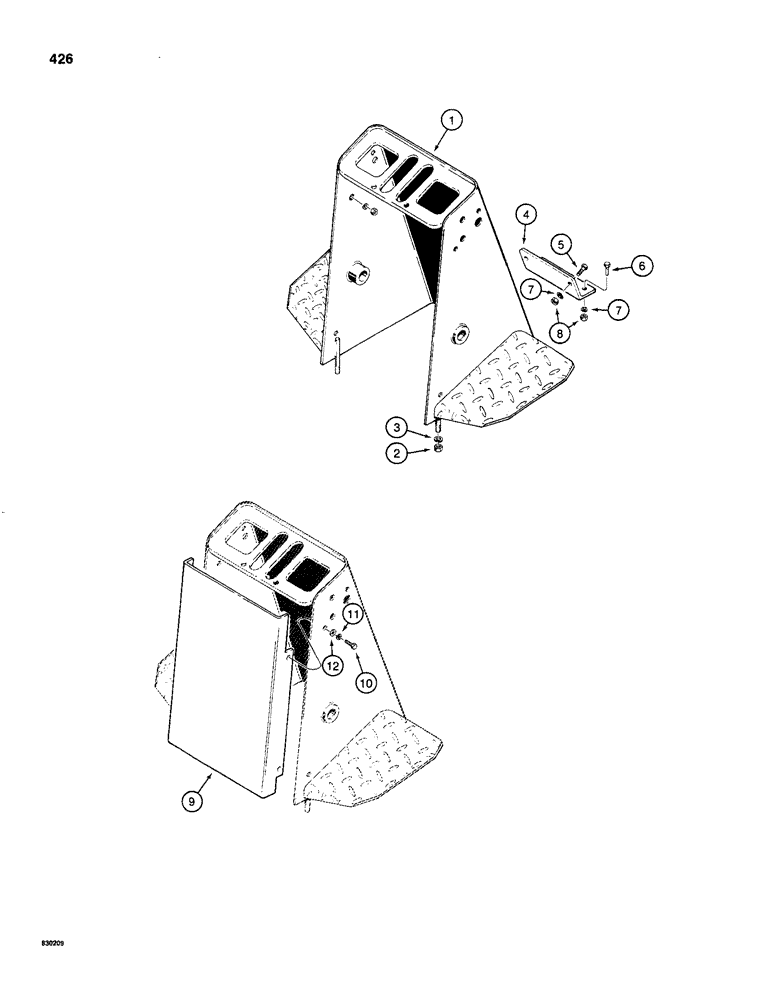

Запчасти Case 480C (426) - BACKHOE CONTROLS TOWER WITH HAND SWING, CONSOLE (84) - BOOMS, DIPPERS & BUCKETS

1

D38288

CONTROL TOWER - backhoe console

1шт.

2

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

D38292

COVER PLATE

BRACKET - control tower mounting

1шт.

5

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

6

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

9

D40292

COVER - control tower, rear, if used

1шт.

10

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

12

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.
