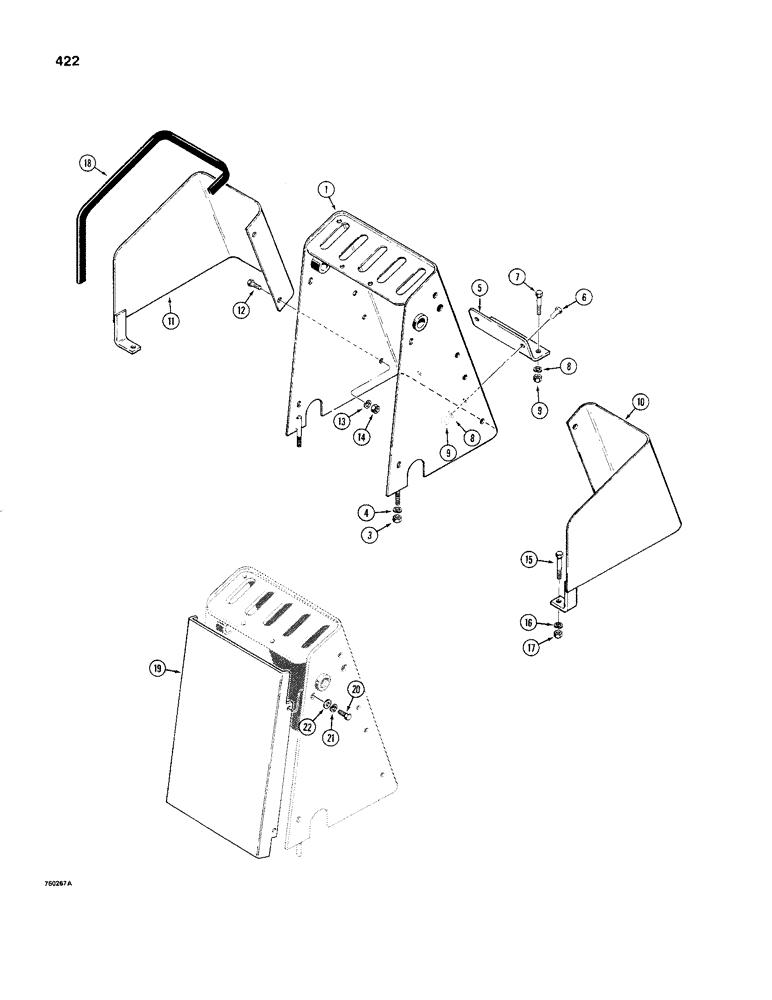

Запчасти Case 480C (422) - BACKHOE CONTROL TOWER WITH FOOT SWING, CONSOLE AND PEDAL GUARDS (84) - BOOMS, DIPPERS & BUCKETS

1

D56529

BOOM

CONTROL TOWER - backhoe console RESERVED

1шт.

3

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

D38292

COVER PLATE

BRACKET - control tower mounting

1шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

7

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

10

D47222

GUARD - swing pedal, right-hand

1шт.

11

D47223

GUARD - swing pedal, left-hand

1шт.

12

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

15

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

18

REF

INSTRUCTION

GUARD - edge trim, 24" (610 mm) long, cut from D52812 bulk, see below

2шт.

19

D40292

COVER - control tower, rear, if used

1шт.

20

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

22

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

D52812

RUBBER STRIP

TRIM - edge, 83" (2108 mm) long

1шт.
