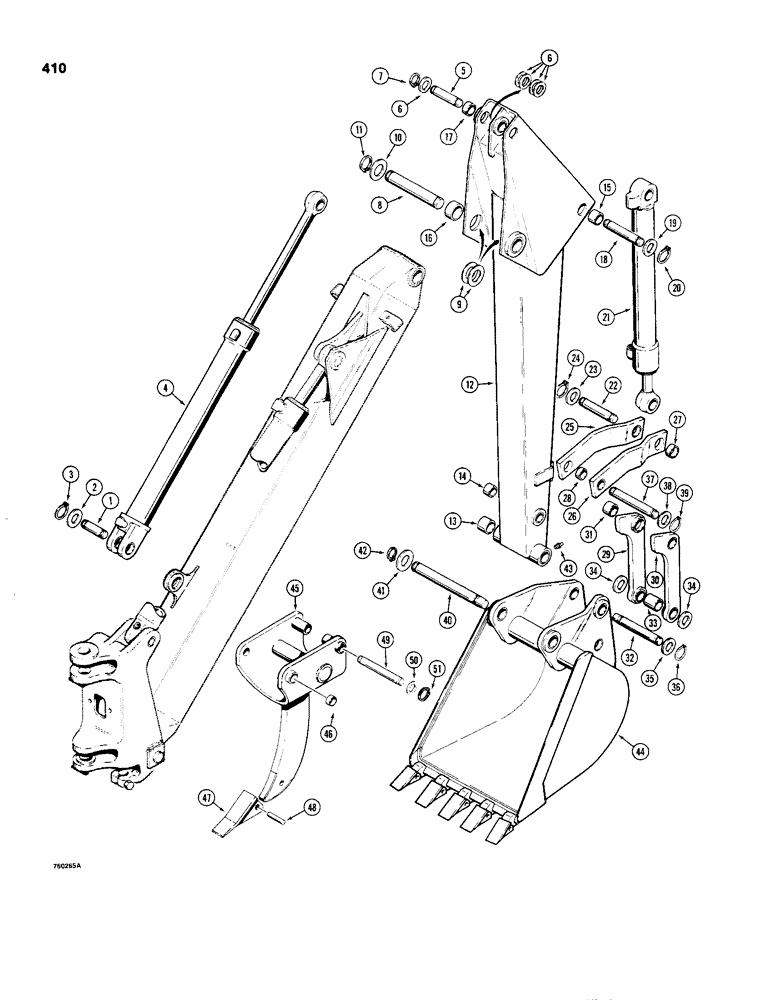

Запчасти Case 480C (410) - BACKHOE DIPPER AND BUCKET (84) - BOOMS, DIPPERS & BUCKETS

1

D34654

PIN

- dipper, Serial Range: cylinder-boom

1шт.

2

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- spacer

2шт.

3

D25279

SNAP RING,M35, Int

- pin retaining

2шт.

4

REF

INSTRUCTION

CYLINDER - dipper, see Figures 366 and 368

1шт.

5

D44881

PIN,38.1mm OD x 136.4mm L

- dipper, Serial Range: cylinder-dipper

1шт.

6

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- spacer

6шт.

7

D25279

SNAP RING,M35, Int

- pin retaining

2шт.

8

D37609

PIN

-, Serial Range: boom-dipper

1шт.

9

D37449

SHIM,.0747" Thk

- spacer

1шт.

10

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, 2"

2шт.

11

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

D71862

BOOM

DIPPER ASSEMBLY - backhoe, Includes: Ref. 12 - 17

1шт.

12

NSS

NOT SOLD SEPARAT

DIPPER - backhoe

1шт.

13

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- dipper, at bucket

2шт.

14

D32890

BUSHING

- dipper, at bucket links

2шт.

15

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- dipper, at bucket cylinder

2шт.

16

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- dipper, at boom

2шт.

17

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- dipper, at dipper cylinder

2шт.

18

D44882

PIN,38.1mm OD x 203.2mm L

- dipper to bucket cylinder

1шт.

19

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- spacer

2шт.

20

D25279

SNAP RING,M35, Int

- pin retaining

2шт.

21

REF

INSTRUCTION

CYLINDER - bucket, see Figures 370 and 372

1шт.

22

D42787

PIN

- bucket cylinder to bucket linkage

1шт.

23

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- spacer

2шт.

24

D25279

SNAP RING,M35, Int

- pin retaining

2шт.

25

D45466

LINK

- guide, left-hand, Includes: Ref. 27 and 28

1шт.

26

D45467

LINK

- guide, right-hand, Includes: Ref. 27 and 28

1шт.

27

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- link, 1 each to D45466 and D45467 links

1шт.

28

D32789

BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L

- link, 1 each to D45466 and D45467 links

1шт.

29

D45462

LINK

- dump, left-hand, Includes: Ref. 31

1шт.

30

D45461

LINK

- dump, right-hand, Includes: Ref. 31

1шт.

31

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

- link, 2 each to D45462 and D45461 links

2шт.

32

D37614

PIN,38mm Od x 246mm L

-, Serial Range: link-bucket

1шт.

33

D44887

SPACER

- link

1шт.

34

D39261

WASHER

SPACER - link

2шт.

35

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- spacer

2шт.

36

D25279

SNAP RING,M35, Int

- pin retaining

2шт.

37

D44883

PIN,31.75mm OD x 238.25mm L

-, Serial Range: link-dipper

1шт.

38

195-2125

WASHER,1 5/16" x 2" x .109"

- flat, 2"

2шт.

39

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

2шт.

40

D123081

PIN,44.45mm OD x 370.84mm L

- dipper to bucket, all buckets except 12" (305 mm) buckets

1шт.

40a

D40244

PIN,44.45mm OD x 327.02mm L

- dipper to bucket, use on 12 inch (305 mm) buckets only, not shown

1шт.

41

195-2156

WASHER,1 13/16" x 2 3/4" x .109"

- flat, special

2шт.

42

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

43

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

44

REF

INSTRUCTION

BUCKET - backhoe, see Figures 419 and 421 for options

1шт.

D54136

SUPPORT ASSY.

FROST POINT ASSEMBLY - backhoe, Includes: Ref. 45 - 48

1шт.

45

NSS

NOT SOLD SEPARAT

BODY - frost tooth

1шт.

46

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- frost point pivot

2шт.

47

D83306

POINT

- tooth, replaces D43416 point

1шт.

48

D43417

PIN

- flex, tooth point

1шт.

49

D54218

PIN,38.1mm OD x 345.95mm L

- link to frost point

1шт.

50

195-63

WASHER,1 5/8" x 3 1/4" x .180"

- flat, 1-9/16" ID

2шт.

51

D25279

SNAP RING,M35, Int

- pin retaining

2шт.
