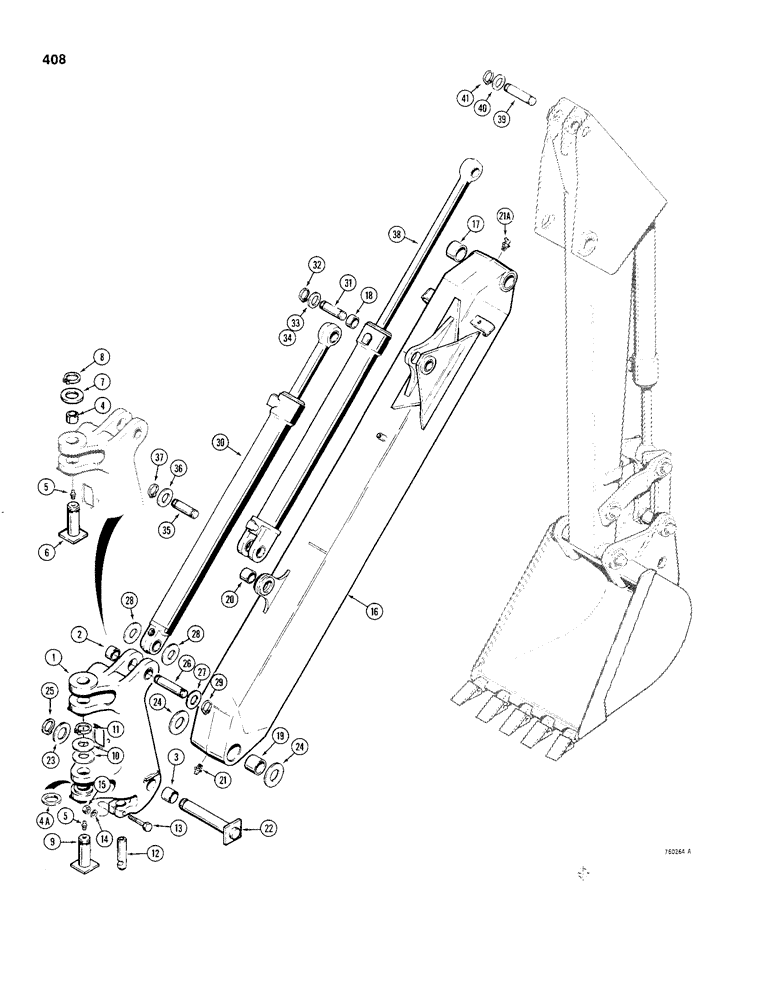

Запчасти Case 480C (408) - BACKHOE SWING TOWER AND BOOM (84) - BOOMS, DIPPERS & BUCKETS

1

D57262

TOWER - backhoe swing, Includes: Ref. 2 - 4A

1шт.

2

D95501

BUSHING

- at boom cylinder

2шт.

3

D95511

BUSHING

- at boom

2шт.

4

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- at mounting frame

2шт.

4a

D44856

SPACER

WASHER - wear, Serial Range: welded-lower

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

6

D44885

PIN

- mounting - frame to swing tower, upper

1шт.

7

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, 2"

1шт.

8

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

1шт.

9

D44733

PIN

- mounting frame to swing tower, lower

1шт.

10

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

Spacer .035" Thk

1шт.

11

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

1шт.

12

D47866

PIN,38.1mm OD x 139.7mm L

- swing tower to swing cylinder

2шт.

13

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex head, 5/8" - 11 NC x 4", plated

2шт.

14

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

15

129-107

NUT,5/8"-11, G5

2шт.

16

D76656

BOOM

- backhoe, Includes: Ref. 17 - 20

1шт.

17

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- boom end, upper

2шт.

18

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

- boom cylinder anchor

2шт.

19

D44648

BUSHING

- boom end, lower

2шт.

D44648 bushing - Use D37416 spacer between bushings.

1шт.

20

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- dipper cylinder anchor

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

21a

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

22

D44888

PIN

- boom to swing tower

1шт.

23

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, 2"

1шт.

24

D37449

SHIM,.0747" Thk

- spacer

1шт.

25

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

1шт.

26

D40941

PIN,38.1mm OD x 149.22mm L

- swing tower to boom cylinder

1шт.

27

D30042

WASHER

- special

2шт.

28

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- spacer

2шт.

29

D25279

SNAP RING,M35, Int

- pin retaining

2шт.

30

REF

INSTRUCTION

CYLINDER - boom, see Figures 362 and 364

1шт.

31

D45047

PIN

- boom, Serial Range: cylinder-boom

1шт.

32

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

33

195-2156

WASHER,1 13/16" x 2 3/4" x .109"

- spacer

2шт.

34

51200255

SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk

SHIM - spacer

1шт.

35

D34654

PIN

- dipper, Serial Range: cylinder-boom

1шт.

36

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- spacer

2шт.

37

D25279

SNAP RING,M35, Int

- pin retaining

2шт.

38

REF

INSTRUCTION

CYLINDER - dipper, see Figures 366 and 368

1шт.

39

D44881

PIN,38.1mm OD x 136.4mm L

- dipper cylinder to dipper arm

1шт.

40

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- spacer

6шт.

41

D25279

SNAP RING,M35, Int

- pin retaining

2шт.
