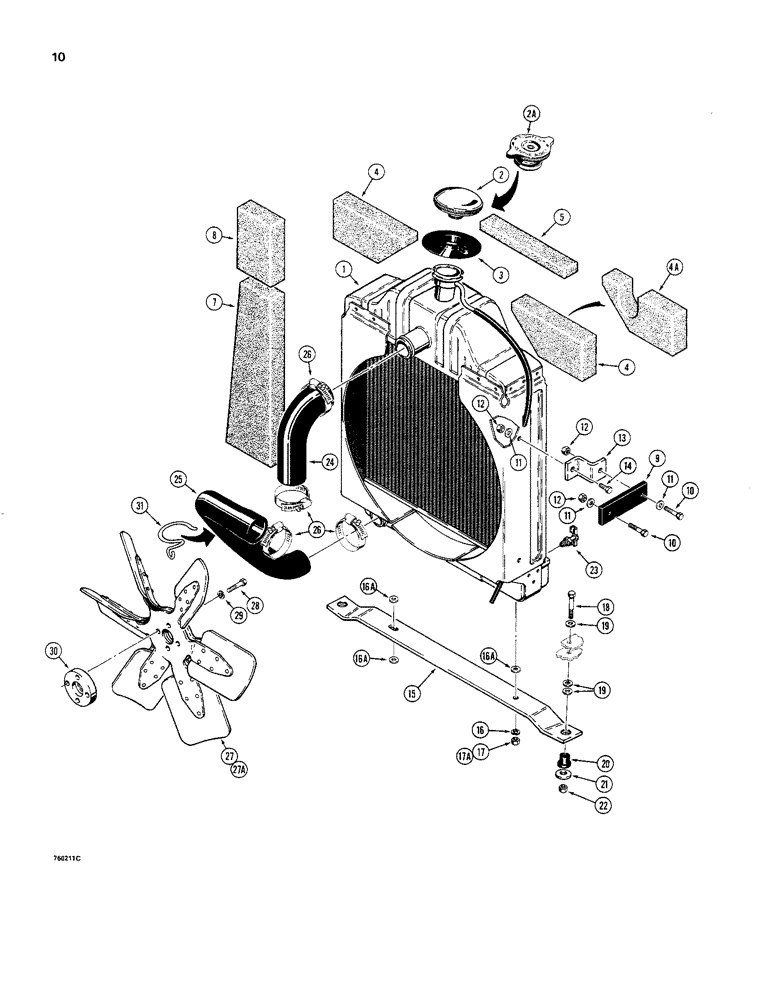

Запчасти Case 480C (010) - RADIATOR, FAN AND MOUNTING PARTS (10) - ENGINE

1

D89104

RADIATOR

- engine cooling, interchangeable with D78067 radiator

1шт.

2

A39359

CAP

- radiator, black, dome type

1шт.

2a

NSS

NOT SOLD SEPARAT

CAP - radiator, plain, if used, order A39359

1шт.

3

D69037

GROMMET

- radiator

1шт.

4

D69157

BAFFLE

- radiator, top, cut from D92228, base size is 8" (203 mm) x 3-11/16" (94 mm)

1-2шт.

4a

D69166

BAFFLE - radiator, top, right-hand, used on models with air cleaner tube extending toward the front, cut from D92228, base size is 8" (203 mm) x 3-11/16" (94 mm)

1шт.

5

D69158

BAFFLE - radiator, top center, cut from D92228, base size is 9" (229 mm) x 13/16" (20 mm)

1шт.

6

RESERVED

1шт.

7

D69068

BAFFLE

- radiator, side, cut from D92228, base size 16-5/16" (414 mm) x 5" (127 mm)

2шт.

8

D69066

BAFFLE

- raiator, side, cut from D92228, base size is 3-13/16" (97 mm) x 5-13/16" (147 mm)

2шт.

9

D73500

STRAP

- radiator mounting, side

2шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

11

95-6

WASHER,3/8"

- flat, 3/8"

6шт.

12

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, plated

6шт.

13

D68976

BRACKET

- radiator mounting

2шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

15

D68953

BAR

- radiator mounting

1шт.

16

92-6

LOCK WASHER,3/8"

if used 3/8"

2шт.

16a

95-6

WASHER,3/8"

- flat, , if used 3/8"

1-3шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , If used 3/8"-16, G5

2шт.

17a

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated, if used

2шт.

18

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

19

95-6

WASHER,3/8"

- flat, 3/8"

6шт.

20

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

CUSHION - radiator mount, rubber

2шт.

21

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, special

2шт.

22

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

23

217-103

COCK, DRAIN

VALVE - water drain

1шт.

24

D68799

RADIATOR HOSE,2.00" ID x 6.25", SAE 20R4 CLASS R GRADE 1A

Upper 2.00" ID x 6.25", SAE 20R4 CLASS R GRADE 1A

1шт.

25

D122895

RADIATOR HOSE,44.50 mm ID, 50.80 mm ID x 300 mm, SAE 20R4 Class D2 per SAE J20

- Lower 44.50 mm ID, 50.80 mm ID x 300 mm, SAE 20R4 Class D2 per SAE J20

1шт.

26

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

27

D93696

FAN

- suction, five blade, if used, not shown, interchangeable with D86230 fan

1шт.

NOTE: Service blade 84262085 has 10 blades

1шт.

27a

D72215

FAN

- pusher, six blade, if used

1шт.

28

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

If used Hex, 5/16"-18 x 1 1/4", G5

4шт.

Use 1-1/2" fan bolts when the fan has a double center plate, and 1-1/4" fan bolts when the fan has a single center plate.

1шт.

28

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

If used Hex, 5/16"-18 x 1 1/2", G5

4шт.

Use 1-1/2" fan bolts when the fan has a double center plate, and 1-1/4" fan bolts when the fan has a single center plate.

1шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

30

D93496

SPACER

- fan

1шт.

31

D82192

SUPPORT

- lower radiator hose, if used

1шт.

32

D92228

BAFFLE

- bulk pad, 35-1/2" (900 mm) x 55-1/8" (1400 mm) x 1-1/2" (38 mm), not shown

1шт.

33

345-44

ADHESIVE

- spray can, for attaching foam pads to metal surface, not shown

1шт.
